Guide to maintenance before and after renting an LED screen: a professional solution to ensure a foolproof performance event

Front Service and Rear Service of rental LED screens are two core disassembly and assembly methods determined based on the box structure design. Front maintenance usually relies on magnetic tools or front-end disassembly structures, which is suitable for space-limited scenarios such as wall-mounted installations; rear maintenance involves opening the back door of the box to replace modules and power supplies, which is suitable for activities with back operating space such as large stages and truss hoisting. Choosing the correct maintenance method can shorten the on-site repair time by more than 50%, which is the key to ensuring the smooth operation of performing arts activities.

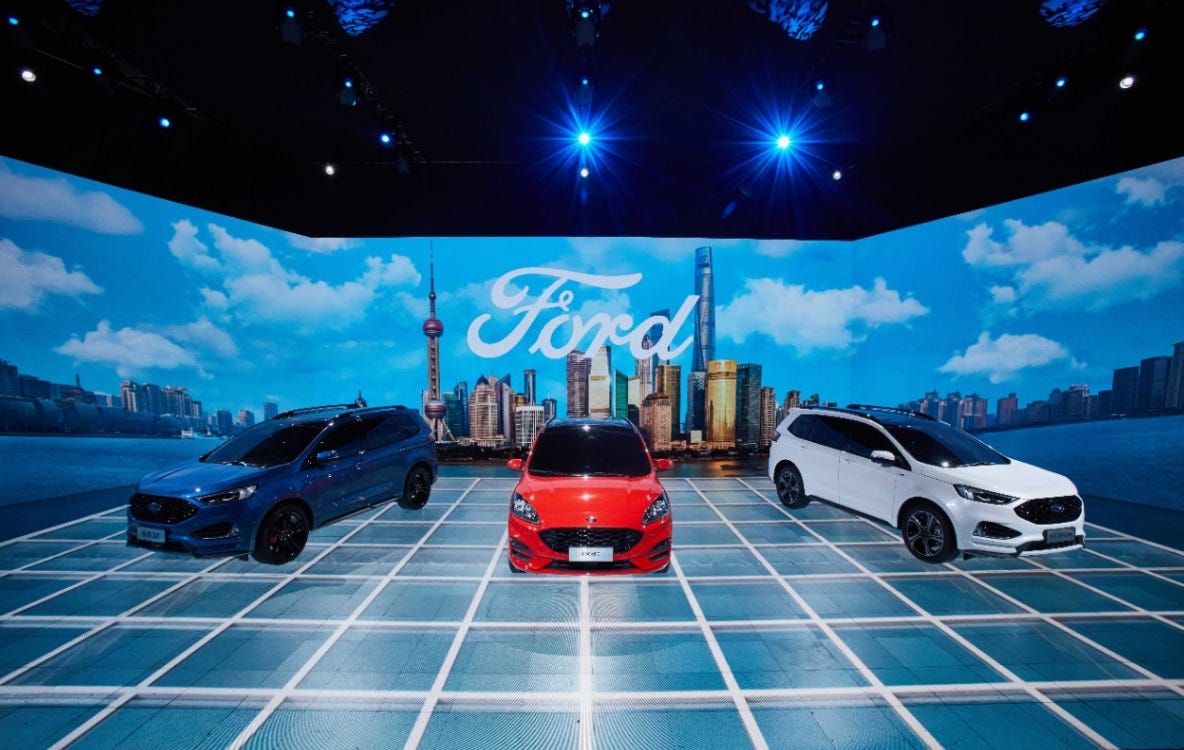

LED screen

Pre- and post-maintenance logic of renting LED screens

In the rental industry, time is of the essence. As a precision electronic device, the LED display screen will inevitably have dead lights, caterpillars (the entire row is always on) or receiving card failure during high-intensity disassembly, transportation and use. Understanding the maintenance logic is the first step to solving the problem.

Pre-maintenance: ultimate space compression

Front maintenance technology is mainly used in situations where there is no reserved channel on the back of the rental screen such as background wall installation or wall-mounted installation. Its core lies in “module front-end”. Use a magnetic suction tool (commonly known as a large suction cup) to suck the surface of the module and pull it vertically outward to separate the module from the box. This method does not require touching the complex box structure, and only requires “surgical” replacement of the fault point.

Post-maintenance: Efficient modular operation

Post-maintenance is the most classic and widely used form in the rental market. Since outdoor performances or large-scale indoor exhibitions often use hoisting or seat mounting, there is usually a maintenance channel on the back of the screen. There is a quick lock or back door on the back of the rear maintenance box. Technicians can quickly open the back cover to inspect and replace the power supply, receiving card, HUB board and internal cables. This method is extremely efficient for troubleshooting systemic failures (such as a black screen across the entire box).

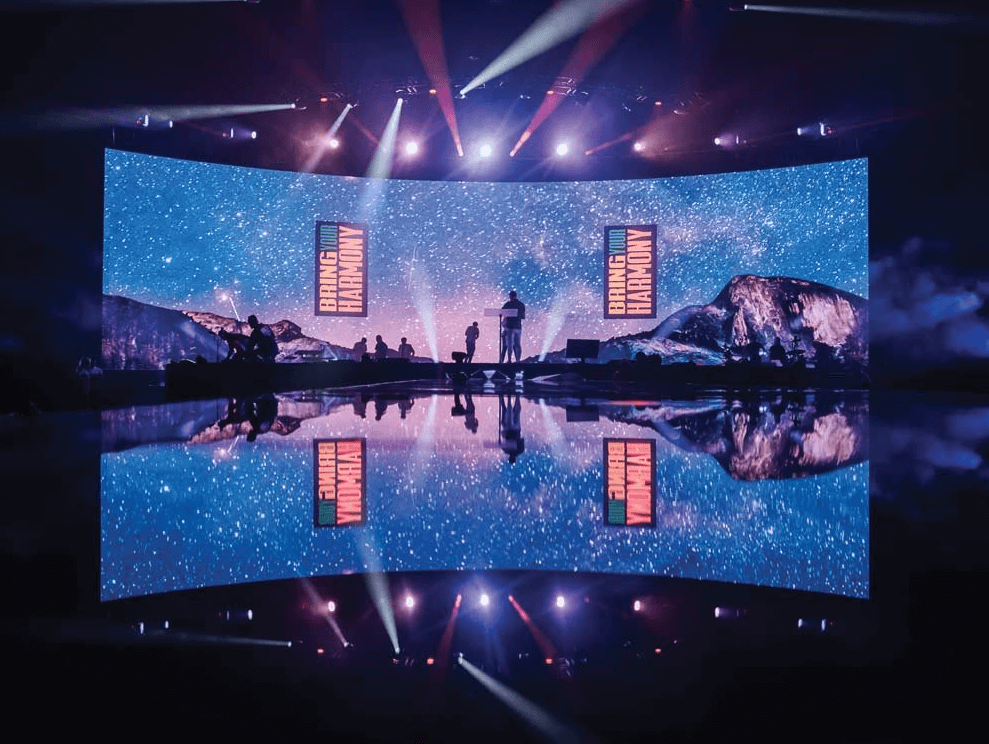

LED screen

Detailed explanation and tips on pre-maintenance operations for renting LED screens

Although front-end maintenance is convenient, it is highly dependent on the operator’s touch and tools.

1. Specifications for the use of magnetic tools

When performing pre-maintenance, it is necessary to ensure that the suction power of the vacuum suction cup is in optimal condition. During operation, the suction cup should be aligned with the geometric center of the module, slowly apply pressure to remove the air, and then pull outwards evenly. Be careful not to pull violently, otherwise it may cause the PCB board to deform and damage the surrounding LED lamp beads. Let me show you the specifications of 3 types of LED lamp beads.

2. Module flatness calibration

The most common pain point in front maintenance is “it’s not flat after putting it back on”. Since the module is attached to the box frame through magnets, slight deviations will form obvious bright or dark lines on the screen surface. After installation, you should use a rubber hammer (padded with protective cloth) to tap the edge, or repeatedly fine-tune the magnetic base to ensure that the gap is consistent at the micron level.

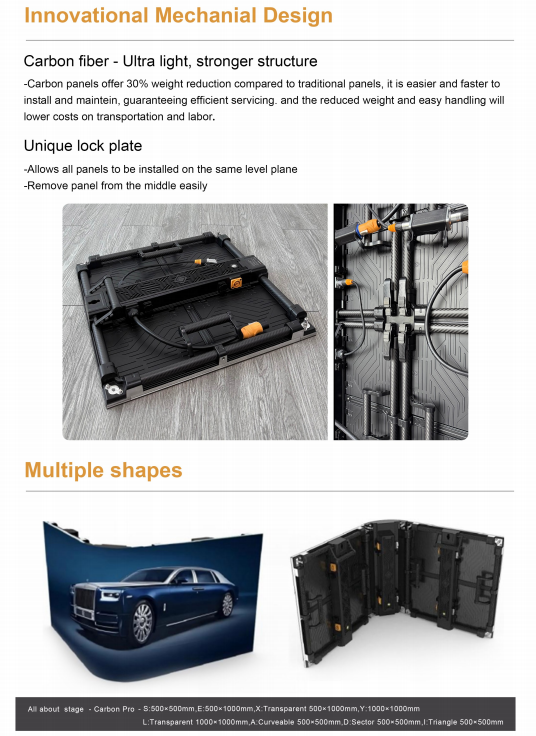

Movie Grade XR LED Screen — Carbon Pro

3. Application scenario suggestions

If your rental project is in a narrow shopping mall aisle, a hotel with pillars, or a recessed stage backdrop, be sure to specify maintenance requirements before renting the screen. This avoids the embarrassment of disassembling the entire screen array to fix a single bad pixel.

Post-maintenance operations and core component management of rental LED screens

For large-scale outdoor music festivals and sports events, post-maintenance is the first choice for professional technicians.

1. Quickly check power supply and signal links

The advantage of post-maintenance is “at a glance”. When a large-area abnormality occurs on the screen, technicians can stand on the scaffolding behind the screen and quickly locate it through the box indicator light:

The red light is always on: The power supply is normal.

Flashing green light: Signal reception is normal.

The light does not light up: Check whether the DC cable or switching power supply is faulty.

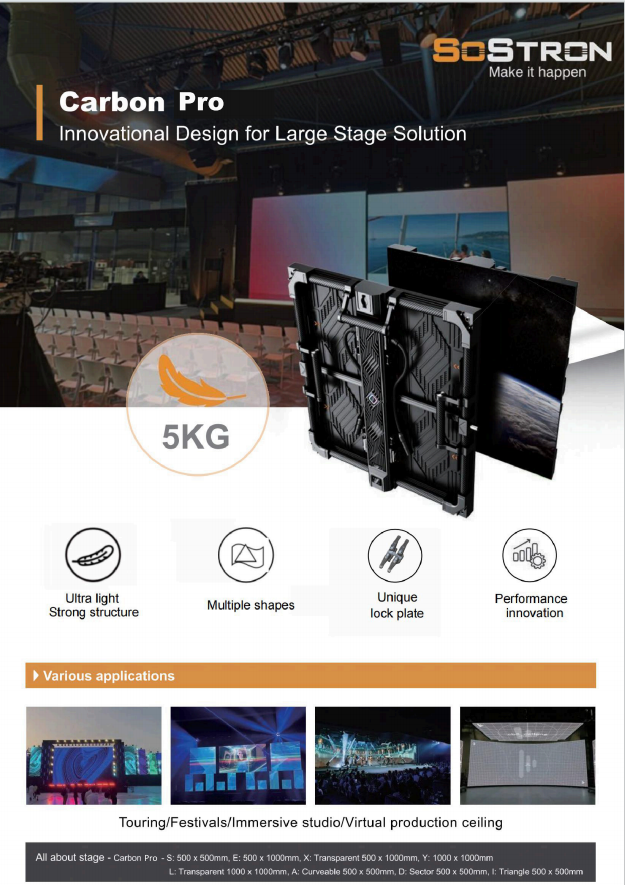

Movie Grade XR LED Screen — Carbon Pro

2. Quick replacement of receiving cards

The flexibility of rental screens lies in their “configuration”. Rear maintenance allows technicians to replace the receiving card from the rear without removing the front display. It should be noted that after replacement, the parameters must be read back through the control software or the RCFG configuration file must be reloaded immediately to ensure that the new card is synchronized with full-screen brightness and color.

3. Maintenance of waterproof sealing

If it is an outdoor rental screen, the rear maintenance box usually has a sealing ring. After each disassembly event, you should focus on checking whether the sealing strip is aged and whether the back door lock is loose. This is a critical step to prevent rainwater from seeping in and causing a short circuit.

Routine maintenance strategies in rental projects

Whether it is pre-maintenance or post-maintenance, preventive maintenance is always better than on-site emergency repair.

“Shock Absorbance” in Transportation and Handling

Most damage to rental LED screens occurs in the logistics process. When packing, make sure the module is facing inward and separated by pearl cotton. When pushing the flight case over a hurdle, the speed should be kept low to avoid loosening of the SMT solder joints caused by severe vibration. Provide you with stage rental LED screen solutions.

Electromagnetic interference monitoring of on-site environment

The rental site is often full of speakers, lights, and high-power generators. Maintenance personnel should ensure that the signal lines (network cables) of the LED screen are kept away from high-power power lines and use shielded twisted pairs. If you encounter screen flickering, you should first check whether the shielding grounding in the rear maintenance area is good.

LED Displays Factory — SoStron

Scientific ratio of spare parts

A professional rental team should prepare spare parts in the following proportions:

Mods: 3% — 5% redundancy.

Receiving cards: 5 cards for every 100 cards.

Power: 2% backup.

Special tools: Equipped with at least two sets of vacuum suction cups and electric screwdrivers.

How to choose the maintenance method that is best for you? In the actual leasing business, the choice between pre-maintenance and post-maintenance is not an alternative, but depends on the game of space cost and time cost.

Reasons for choosing pre-maintenance: The decoration space is extremely limited, the screen is pursued to be extremely thin and light, and the maintenance platform behind it is not wanted to be built.

Reasons for choosing post-maintenance: The stage is large-scale, internal core components need to be replaced very quickly, and the equipment is in a high humidity or dust environment (the sealing of the post-maintenance box is usually better).

In summary, front-end maintenance is a powerful tool to deal with “refined space”, while post-maintenance is the cornerstone of supporting “large-scale performances”. When renting an LED screen, predicting the maintenance path based on the on-site construction plan can help you cope with sudden failures.
