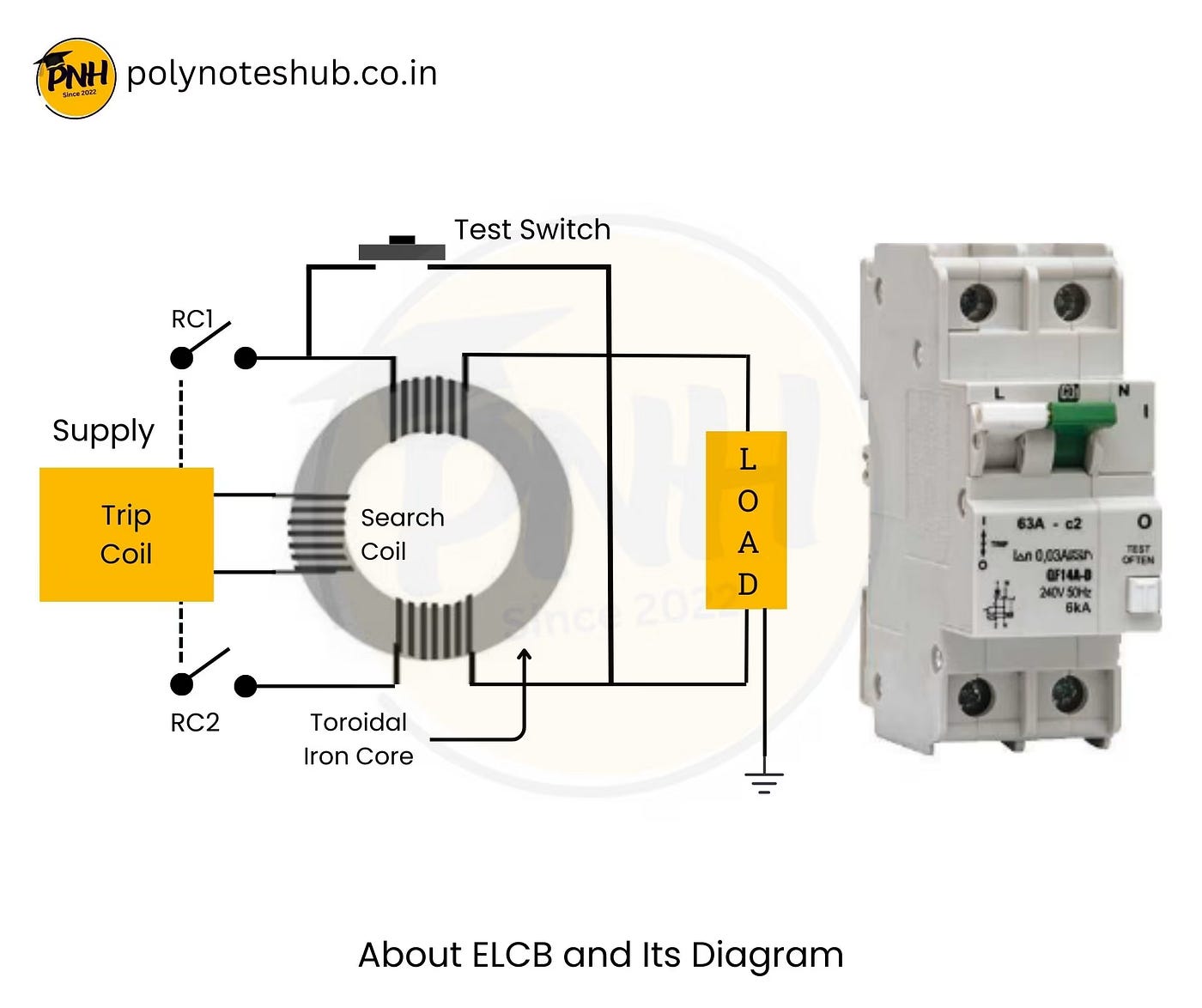

What is Earth Leakage Circuit Breaker or ELCB?

It is also known as a Residual Current Device (RCD), which is an electrical safety device that prevents electric shocks and fires. These devices detect and stop aberrant electrical circuit conditions, thereby protecting against electric shock and fires. They are especially vital in areas where water and electricity may come into touch, such as bathrooms and kitchens. Their duty is to prevent electrical accidents caused by ground faults, which occur when electricity flows to the ground instead of following its planned path.

Types of Earth Leakage Circuit Breaker or ELCB

There are two types of earth leakage circuit breaker or ELCB –

• Voltage ELCB: As the name implies, voltage changes are the basis for the operation of voltage-equivalent circuit breakers. They work especially well to protect against imbalances and leaks of voltage. When there is a disruption in the regular flow of electricity, like an earth fault, short circuit, or overcurrent, voltage Earth Leakage Circuit Breakers are crucial. Voltage types work by continuously observing an electrical circuit’s levels of voltage. An abnormal voltage condition triggers a fast trip on the this device, which turns off the power source. It is essential to act quickly to stop electrical mishaps and fires.
