Designing an Event-Driven Node.js Backend for Batch Image Processing and Client Notifications

Came across a situation where users can upload large batches of images at once from a mobile app. While uploading files to cloud storage is relatively straightforward, the real challenge begins afterward: asynchronously processing each image while keeping the system scalable & responsive. A classic example of an event-driven backend architecture.

Here’s an illustration of the high-level architecture of the solution:

Assume an Angular app uploads a batch of images to a Node.js backend. The backend immediately stores the files in blob storage, creates a batch record in the database, and enqueues one processing job per image. Instead of processing images within the request lifecycle, the work is delegated to background workers through a queue.

This keeps the API responsive while enabling image processing to scale independently through worker pools.

Each worker independently:

• downloads an image from blob storage,
• runs image processing algorithms,
• updates image status in the database,
• and reports progress back to the batch.

Once all images in the batch are processed, the system enters a completion orchestration phase.

At this stage:

1. the batch is marked as COMPLETED,
2. an email notification is sent to the user,
3. and a completion event is published through an internal Pub/Sub channel.

The Pub/Sub layer decouples workers from the API server. Workers simply emit events such as BATCH_COMPLETED, while the API server subscribes to these events and pushes one-way real-time updates to connected clients using Server-Sent Events (SSE).

This creates a clean event-driven architecture where:

• background processing scales independently,
• side effects such as email notifications remain asynchronous,
• and frontend clients receive lightweight real-time updates immediately after batch completion.

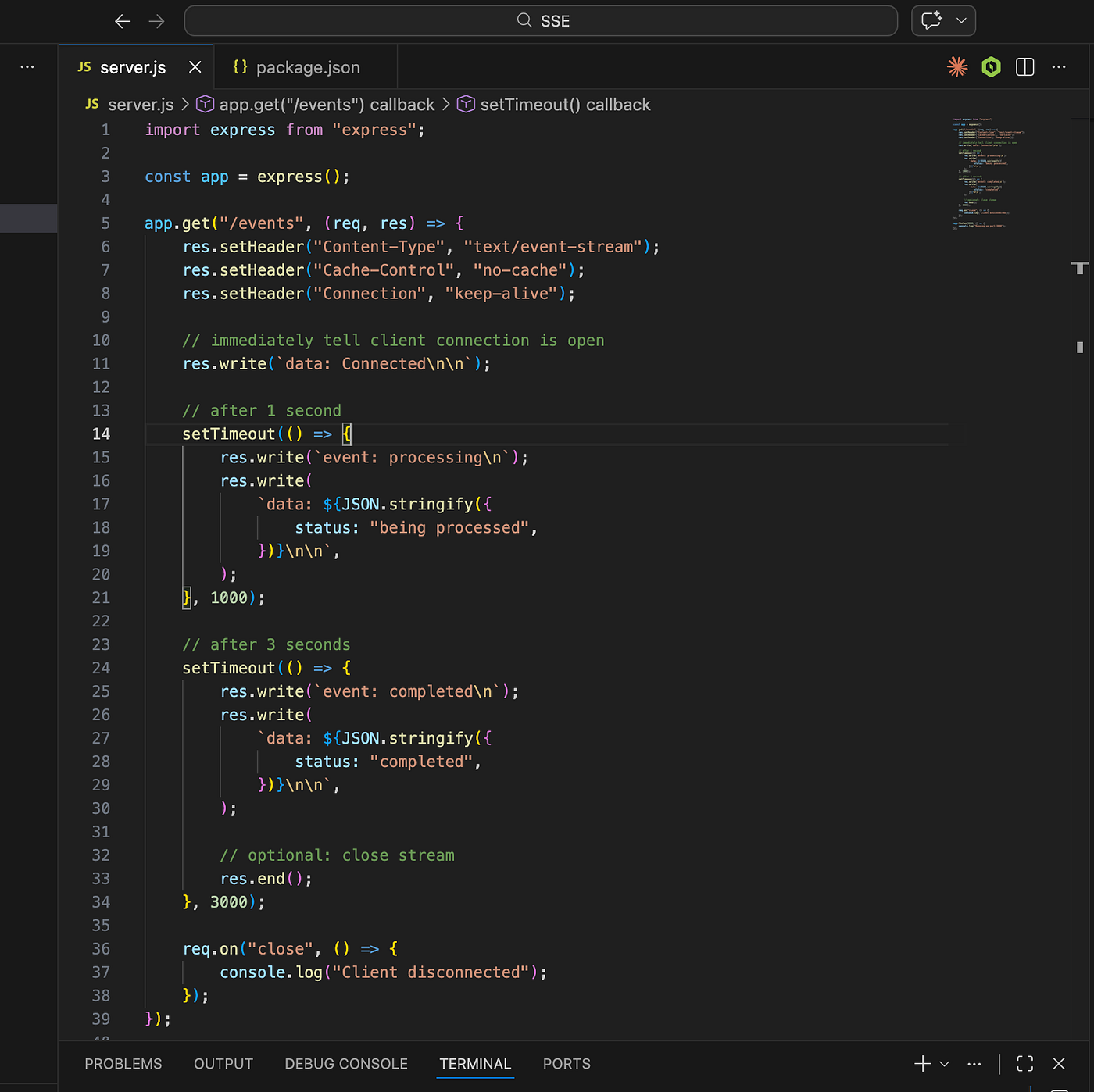

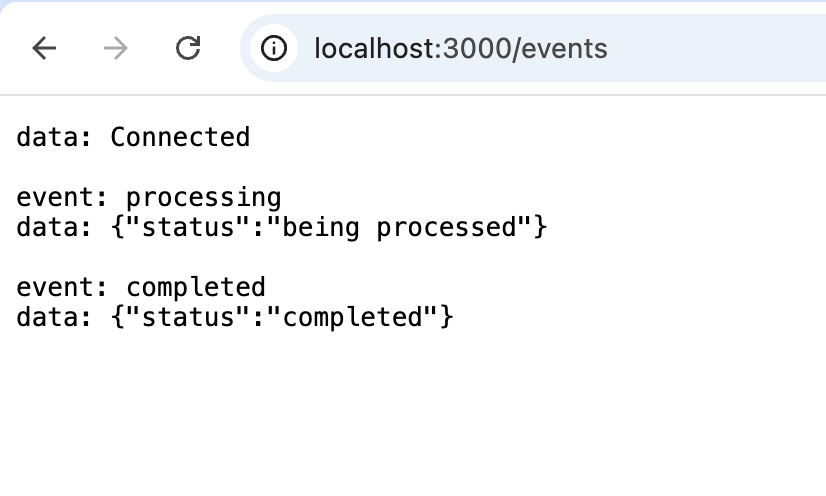

Curious about Server Sent Events (SSE)?

here is a simple example.
