AI Agent Orchestration Patterns

Agent architectures exist on a spectrum of complexity, and each level introduces coordination overhead, latency, and cost. Use the lowest level of complexity that reliably meets your requirements

The guide defines three levels:

Level 1 — Direct Model Call

A single language model call with a well-crafted prompt. No agent logic, no tool access. Best for classification, summarization, translation, and other single-step tasks that the model can complete in one pass. This is the least complex option — if prompt engineering can solve the problem, you don’t need an agent.

Level 2 — Single Agent with Tools

One agent that reasons and acts by selecting from available tools, knowledge sources, and APIs. The agent can loop through multiple model calls and tool invocations to refine results. Best for varied queries within a single domain where some requests require dynamic tool use, such as looking up order status or querying a database. This is often the right default for enterprise use cases — simpler to debug and test than multi-agent setups, while still allowing dynamic logic. Guard against infinite tool-call loops by setting iteration limits.

Level 3 — Multi-Agent Orchestration

Multiple specialized agents coordinate to solve a problem. An orchestrator or peer-based protocol manages work distribution, context sharing, and result aggregation. Best for cross-functional or cross-domain problems, scenarios that require distinct security boundaries per agent, or tasks that benefit from parallel specialization. This adds coordination overhead, latency, and failure modes — justify the added complexity by demonstrating that a single agent can’t reliably handle the task due to prompt complexity, tool overload, or security requirements.

Why Use Multiple Agents At All?

When you use multiple AI agents, you can break down complex problems into specialized units of work or knowledge, with each task assigned to dedicated AI agents that have specific capabilities. These approaches mirror strategies found in human teamwork.

The four core advantages:

• Specialization: Individual agents can focus on a specific domain or capability, which reduces code and prompt complexity.
• Scalability: Agents can be added or modified without redesigning the entire system.
• Maintainability: Testing and debugging can be focused on individual agents, which reduces the complexity of these tasks.
• Optimization: Each agent can use distinct models, task-solving approaches, knowledge, tools, and compute to achieve its outcomes.

The Five Orchestration Patterns

The guide defines five foundational patterns. Here is each one in full detail.

1. 🔗 Sequential Orchestration

Also known as: pipeline, prompt chaining, linear delegation

What It Is

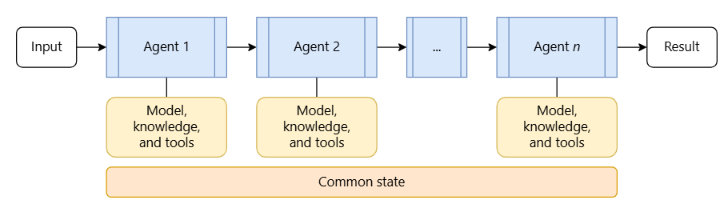

The sequential orchestration pattern chains AI agents in a predefined, linear order. Each agent processes the output from the previous agent in the sequence, which creates a pipeline of specialized transformations. The sequential orchestration pattern solves problems that require step-by-step processing, where each stage builds on the previous stage. The choice of which agent gets invoked next is deterministically defined as part of the workflow and isn’t a choice given to agents in the process.

Think of it as an assembly line — each station has one job, and the product moves forward only after that job is done.

When to Use It

Consider the sequential orchestration pattern for multistage processes that have clear linear dependencies and predictable workflow progression, data transformation pipelines where each stage adds specific value that the next stage depends on, workflow stages that can’t be parallelized, progressive refinement requirements such as draft → review → polish workflows, and systems where you understand the availability and performance characteristics of every AI agent in the pipeline.

When to Avoid It

Avoid this pattern when stages are embarrassingly parallel and can be run simultaneously without compromising quality, when processes include only a few stages that a single AI agent can accomplish effectively, when early stages might fail and there’s no reasonable way to prevent later steps from processing accumulated error output, when AI agents need to collaborate rather than hand off work, when the workflow requires backtracking or iteration, or when you need dynamic routing based on intermediate results.

Real-World Example — Law Firm Contract Generation

A law firm’s document management software uses sequential agents for contract generation. The intelligent application processes requests through a pipeline of four specialized agents:

1. The template selection agent receives client specifications (contract type, jurisdiction, parties involved) and selects the appropriate base template from the firm’s library.
2. The clause customization agent takes the selected template and modifies standard clauses based on negotiated business terms, including payment schedules and liability limitations.
3. The regulatory compliance agent reviews the customized contract against applicable laws and industry-specific regulations.
4. The risk assessment agent performs comprehensive analysis of the complete contract, evaluating liability exposure and dispute resolution mechanisms while providing risk ratings and protective language recommendations.

2. ⚡ Concurrent Orchestration

Also known as: parallel, fan-out/fan-in, scatter-gather, map-reduce

What It Is

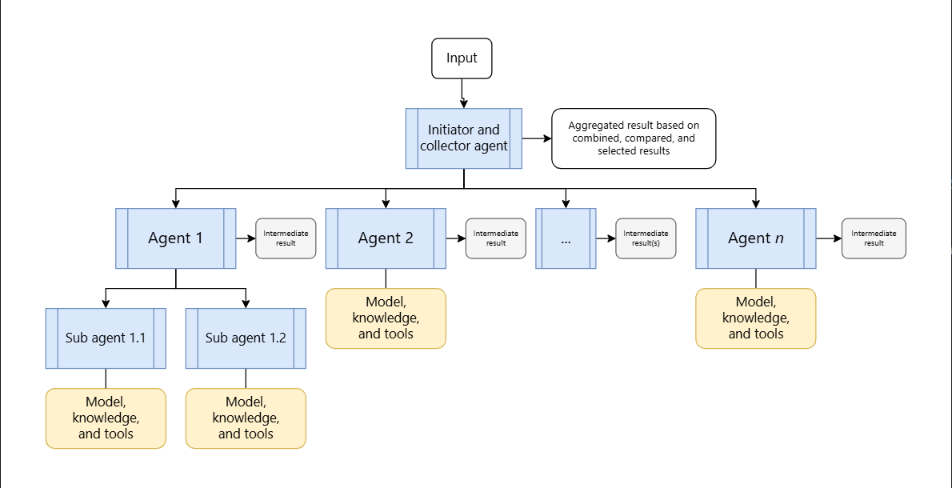

The concurrent orchestration pattern runs multiple AI agents simultaneously on the same task. This approach allows each agent to provide independent analysis or processing from its unique perspective or specialization. Instead of sequential processing, all agents work in parallel, which reduces overall run time and provides comprehensive coverage of the problem space.

Agents operate independently and don’t hand off results to each other. An agent might invoke extra AI agents by using its own orchestration approach as part of its independent processing. The orchestrator must know which agents are registered and available. This pattern supports both deterministic calls to all registered agents and dynamic selection of which agents to invoke based on the task requirements.

When aggregation is needed, the guide specifies choosing a strategy that fits the task: voting or majority-rule for classification, weighted merging for scored recommendations, or an LLM-synthesized summary when results need to be reconciled into a coherent narrative.

When to Use It

Consider concurrent orchestration for tasks that you can run in parallel, either by using a fixed set of agents or by dynamically choosing AI agents based on specific task requirements. It’s well-suited for tasks that benefit from multiple independent perspectives or different specializations — technical, business, and creative approaches all contributing to the same problem. This includes brainstorming, ensemble reasoning, and quorum and voting-based decisions. Also use it for time-sensitive scenarios where parallel processing reduces latency.

When to Avoid It

Avoid this pattern when agents need to build on each other’s work or require cumulative context in a specific sequence, when the task requires a specific order of operations or deterministic reproducible results, when resource constraints make parallel processing inefficient, when agents can’t reliably coordinate changes to shared state or external systems while running simultaneously, when there’s no clear conflict resolution strategy to handle contradictory results, or when result aggregation logic is too complex or lowers quality.

Real-World Example — Financial Stock Analysis

A financial services firm built an intelligent application that uses concurrent agents specializing in different types of analysis to evaluate the same stock simultaneously:

• The fundamental analysis agent evaluates financial statements, revenue trends, and competitive positioning to assess intrinsic value.
• The technical analysis agent examines price patterns, volume indicators, and momentum signals to identify trading opportunities.
• The sentiment analysis agent processes news articles, social media mentions, and analyst reports to gauge market sentiment and investor confidence.
• The ESG agent reviews environmental impact, social responsibility, and governance practice reports to evaluate sustainability risks and opportunities.

These independent results are then combined into a comprehensive investment recommendation, which enables portfolio managers to make informed decisions quickly.

3. 💬 Group Chat Orchestration

Also known as: roundtable, collaborative, multi-agent debate, council

What It Is

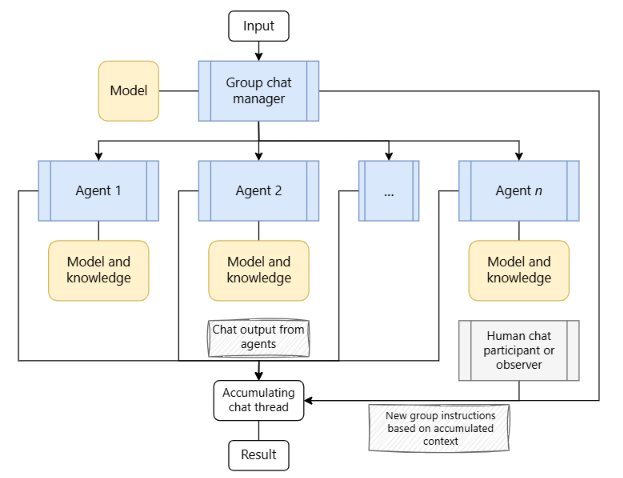

The group chat orchestration pattern enables multiple agents to solve problems, make decisions, or validate work by participating in a shared conversation thread where they collaborate through discussion. A chat manager coordinates the flow by determining which agents can respond next and by managing different interaction modes, from collaborative brainstorming to structured quality gates.

This pattern works well for human-in-the-loop scenarios where humans can optionally take on dynamic chat manager responsibilities and guide conversations toward productive outcomes. In this orchestration pattern, agents are typically in a read-only mode — they don’t use tools to make changes in running systems.

When to Use It

Consider group chat orchestration when your scenario can be solved through spontaneous or guided collaboration or iterative maker-checker loops. It’s particularly suited for creative brainstorming sessions where agents with different perspectives build on each other’s contributions, decision-making processes that benefit from debate and consensus-building, multidisciplinary problems that require cross-functional dialogue, quality assurance requirements involving structured review processes, and compliance validation that requires multiple expert perspectives.

When to Avoid It

Avoid this pattern when basic task delegation or linear pipeline processing is sufficient, when real-time processing requirements make discussion overhead unacceptable, when clear hierarchical decision-making or deterministic workflows without discussion are more appropriate, or when the chat manager has no objective way to determine whether the task is complete. Managing conversation flow and preventing infinite loops require careful attention, especially as more agents make control more difficult to maintain. Consider limiting group chat orchestration to three or fewer agents.

The Maker-Checker Loop (Sub-Pattern)

The guide describes an important sub-pattern within group chat:

The maker-checker loop is a specific type of group chat orchestration where one agent (the maker) creates or proposes something, and another agent (the checker) evaluates the result against defined criteria. If the checker identifies gaps or quality issues, it pushes the conversation back to the maker with specific feedback. The maker revises its output and resubmits. This cycle repeats until the checker approves the result or the orchestration reaches a maximum iteration limit.

Also known as: evaluator-optimizer, generator-verifier, critic loop, or reflection loop. This pattern requires clear acceptance criteria for the checker agent so that it can make consistent pass or fail decisions, combined with an iteration cap to prevent infinite refinement loops and a fallback behavior when the cap is reached, such as escalating to a human reviewer or returning the best result with a quality warning.

Real-World Example — Municipal Park Planning

A city parks and recreation department uses group chat orchestration to evaluate new park development proposals. Multiple specialist agents debate different community impact perspectives and work toward consensus. The system processes park development proposals by initiating a group consultation with specialized municipal agents:

• The community engagement agent evaluates accessibility requirements, anticipated resident feedback, and usage patterns to ensure equitable community access.
• The environmental planning agent assesses ecological impact, sustainability measures, native vegetation displacement, and compliance with environmental regulations.
• The budget and operations agent analyzes construction costs, ongoing maintenance expenses, staffing requirements, and long-term operational sustainability.

A parks department employee participates in the chat thread to add insight and respond to agents’ knowledge requests in real time, enabling the employee to update the original proposal to address identified concerns and better prepare for community feedback.

4. 🔀 Handoff Orchestration

Also known as: routing, triage, transfer, dispatch, delegation

What It Is

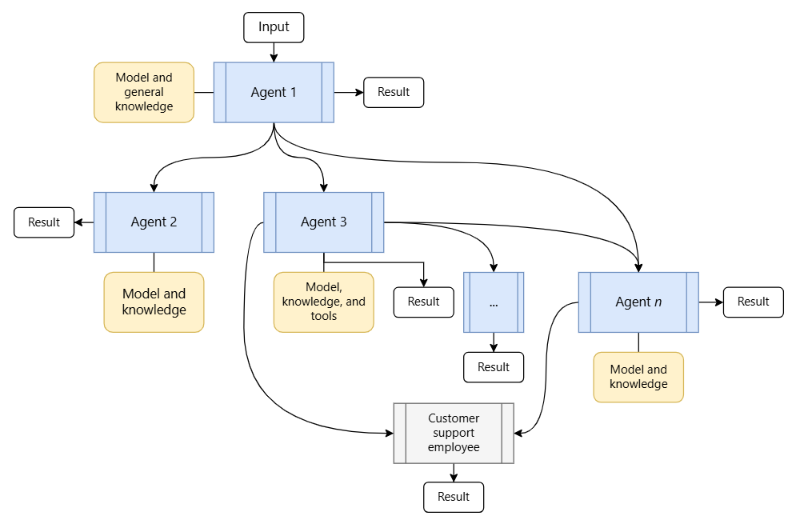

The handoff orchestration pattern enables dynamic delegation of tasks between specialized agents. Each agent can assess the task at hand and decide whether to handle it directly or transfer it to a more appropriate agent based on the context and requirements. This pattern addresses scenarios where the optimal agent for a task isn’t known upfront or where the task requirements become clear only during processing. Agents in this pattern don’t typically work in parallel — full control transfers from one agent to another agent.

When to Use It

Consider the handoff pattern for tasks that require specialized knowledge or tools but where the number of agents needed or their order can’t be predetermined, scenarios where expertise requirements emerge during processing resulting in dynamic task routing based on content analysis, multiple-domain problems that require different specialists who operate one at a time, and situations where logical relationships and signals can be predetermined to indicate when one agent reaches its capability limit and which agent should handle the task next.

When to Avoid It

Avoid this pattern when the appropriate agent or sequence of agents is identifiable from the initial input (use deterministic routing instead), when task routing is rule-based rather than based on dynamic interpretation, when suboptimal routing decisions might lead to a poor or frustrating user experience, when multiple operations should run concurrently, or when avoiding infinite handoff loops is challenging.

Real-World Example — Telecom Customer Support

A telecommunications CRM solution uses handoff agents in its customer support portal. The triage support agent interprets the request and tries to handle common problems directly. When it reaches its limits, it hands off problems to other agents — for example, network problems go to a technical infrastructure agent and billing disputes go to a financial resolution agent. Further handoffs occur within those agents when the current agent recognizes its own capability limits and knows another agent can better support the scenario.

Each agent is capable of completing the conversation if it determines that customer success has been achieved or that no other agent can further benefit the customer. Some agents are also designed to hand off the user experience to a human support agent when the problem is important to solve but no AI agent currently has the capabilities to address it.

5. 🧭 Magentic Orchestration

Also known as: dynamic orchestration, task-ledger-based orchestration, adaptive planning

What It Is

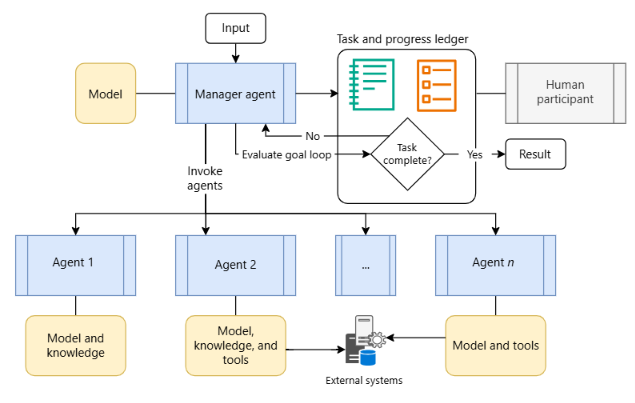

The magentic orchestration pattern is designed for open-ended and complex problems that don’t have a predetermined plan of approach. Agents in this pattern typically have tools that allow them to make direct changes in external systems. The focus is as much on building and documenting the approach to solve the problem as it is on implementing that approach. The task list is dynamically built and refined as part of the workflow through collaboration between specialized agents and a magentic manager agent. As context evolves, the manager agent builds a task ledger to develop the approach plan with goals and subgoals, which is eventually finalized, followed, and tracked to complete the desired outcome.

The manager agent communicates directly with specialized agents to gather information as it builds and refines the task ledger. It iterates, backtracks, and delegates as many times as needed to build a complete plan that it can successfully carry out. The manager agent regularly checks whether the original request is satisfied or stalled and updates the ledger to adjust the plan.

When to Use It

Consider the magentic pattern for complex or open-ended use cases that have no predetermined solution path, when input and feedback from multiple specialized agents is needed to develop a valid solution path, when the AI system must generate a fully developed plan of approach that a human can review before or after implementation, and when agents are equipped with tools that interact with external systems, consume external resources, or can induce changes in running systems — where a documented plan can be presented to a user before allowing agents to follow the tasks.

When to Avoid It

Avoid this pattern when the solution path is developed or should be approached in a deterministic way, when there’s no requirement to produce a ledger, when the task has low complexity and a simpler pattern can solve it, when the work is time-sensitive (as the pattern focuses on building and debating viable plans rather than optimizing for speed), or when you anticipate frequent stalls or infinite loops without a clear path to resolution.

Real-World Example — Site Reliability Engineering Incident Response

A site reliability engineering (SRE) team built automation using magentic orchestration to handle low-risk incident response scenarios. When a service outage occurs, the system dynamically creates and implements a remediation plan without knowing the specific steps needed upfront. When the automation detects a qualifying incident, the magentic manager agent begins by creating an initial task ledger with high-level goals such as restoring service availability and identifying the root cause.

1. The diagnostics agent analyzes system logs, performance metrics, and error patterns to identify potential causes and reports findings back to the manager.
2. Based on diagnostic results, the manager updates the task ledger and consults the infrastructure agent to understand current system state and available recovery options.
3. The communication agent provides stakeholder notification capabilities, and the manager incorporates communication checkpoints and approval gates into the evolving plan.
4. The rollback agent may be added to the plan if deployment reversion is needed, or the system escalates to human SRE engineers if the incident exceeds the automation’s scope.

Throughout this process, the manager agent continuously refines the task ledger based on new information, adding, removing, or reordering tasks as the incident evolves. It maintains a complete audit trail of the evolving plan, which provides transparency for post-incident review.

Implementation Considerations

The guide devotes significant space to cross-cutting concerns that apply regardless of which pattern you choose.

Context & State Management

AI agents often have limited context windows. In multi-agent orchestrations, context windows can grow rapidly because each agent adds its own reasoning, tool results, and intermediate outputs. Monitor accumulated context size and use compaction techniques such as summarization or selective pruning between agents to prevent exceeding model limits or degrading response quality. For orchestrations spanning multiple user interactions or long-running tasks, persist shared state externally rather than relying on in-memory context alone, scoped to the minimum necessary information to reduce token overhead and privacy risk.

Reliability

These patterns result in classical distributed systems problems such as node failures, network partitions, message loss, and cascading errors. Agents and their orchestrators should implement timeout and retry mechanisms, include graceful degradation to handle agent faults, surface errors instead of hiding them, validate agent output before passing it to the next agent (low-confidence or malformed responses can cascade through a pipeline), consider circuit breaker patterns for agent dependencies, and design agents to be as isolated as is practical from each other.

Security

Implement authentication and use secure networking between agents. Consider how to handle the user’s identity across agents — agents must have broad access to knowledge stores to handle requests from all users, but they must not return data that’s inaccessible to the user. Security trimming must be implemented in every agent in the pattern. Apply content safety guardrails at multiple points in the orchestration, including user input, tool calls, tool responses, and final output, since intermediate agents can introduce or propagate harmful content.

Cost Optimization

Multi-agent orchestrations multiply model invocations, and each agent consumes tokens for its instructions, context, reasoning, and tool interactions. Sequential and handoff patterns invoke agents one at a time, limiting concurrent resource usage but accumulating cost across each step. Concurrent patterns increase throughput but can spike resource consumption. Magentic orchestrations are the most variable because the manager agent iterates until it builds a viable plan. To manage cost: assign each agent a model that matches the complexity of its task (not every agent requires the most capable model), monitor token consumption per agent and per orchestration run, and apply context compaction between agents.

Observability & Testing

Distributing your AI system across multiple agents requires monitoring and testing each agent individually as well as the system as a whole. Instrument all agent operations and handoffs, track performance and resource usage metrics for each agent, design testable interfaces for individual agents, and implement integration tests for multi-agent workflows. Because agent outputs are nondeterministic, use scoring rubrics or LLM-as-judge evaluations rather than exact-match assertions.

Human Participation (HITL)

Several orchestration patterns support human-in-the-loop involvement: observers in group chat, reviewers in maker-checker loops, and escalation targets in handoff and magentic orchestrations. Mandatory gates make the orchestration synchronous at that step, so persist state at these checkpoints to allow resumption without replaying prior agent work. You can also scope HITL gates to specific tool invocations rather than full agent outputs, which allows the orchestration to proceed autonomously for low-risk actions while requiring approval only for sensitive operations.

Common Anti-Patterns to Avoid

Creating unnecessary coordination complexity by using a complex pattern when basic sequential or concurrent orchestration would suffice, adding agents that don’t provide meaningful specialization, overlooking latency impacts of multiple-hop communication, sharing mutable state between concurrent agents which can result in transactionally inconsistent data, using deterministic patterns for workflows that are inherently nondeterministic (or vice versa), ignoring resource constraints when choosing concurrent orchestration, and letting context windows grow unbounded as agents accumulate more information.

Combining Patterns

Applications sometimes require combining multiple orchestration patterns. For example, you might use sequential orchestration for initial data processing stages and then switch to concurrent orchestration for parallelizable analysis tasks. Don’t try to make one workflow fit into a single pattern when different stages of your workload have different characteristics.

Implementation Frameworks

These orchestration patterns are technology-agnostic. Microsoft’s own Agent Framework is an open-source SDK for building multi-agent orchestrations on the Microsoft platform, providing built-in support for all five patterns described. Foundry Agent Service provides a managed, no-code approach to chaining agents together using its connected agents functionality, though its workflows are primarily nondeterministic, limiting which patterns can be fully implemented. Other frameworks that support multi-agent orchestration include LangChain, CrewAI, and the OpenAI Agents SDK — the architectural guidance applies regardless of the SDK you choose
