Stop Opening Port 22: Secure EC2 Access with AWS SSM + SSH

For years, the default way to access an EC2 instance has been simple:

• Open port 22
• Download a .pem file
• SSH into the server

It works, until it doesn’t.

Managing SSH keys across teams becomes messy fast. Security groups end up exposing port 22 to the world. Bastion hosts multiply. Auditability disappears. Someone loses a key and suddenly access becomes a nightmare.

That’s where Amazon Web Services Systems Manager Session Manager changes everything.

With AWS SSM, you can connect to EC2 instances entirely over HTTPS using IAM authentication, no inbound ports required.

But here’s the part many engineers miss:

You can also keep using your normal SSH workflows — including VS Code Remote SSH, SCP, SFTP, and port forwarding — while still avoiding public SSH exposure.

This guide walks through both approaches.

Why SSM Is Better Than Traditional SSH

Traditional SSH access introduces several operational and security problems:

• SSH keys must be distributed and rotated manually
• Port 22 often remains publicly exposed
• No centralized audit trail
• Bastion hosts become operational overhead
• Lost keys can lock users out permanently

Using AWS SSM solves these issues:

• No inbound ports required
• Traffic runs entirely over HTTPS (443)
• Authentication integrates with IAM and AWS SSO
• Full session auditing through CloudTrail
• No bastion hosts required
• Works securely from anywhere

The EC2 instance only needs:

• The SSM Agent installed
• An IAM role with SSM permissions
• Outbound internet access (or VPC endpoints)

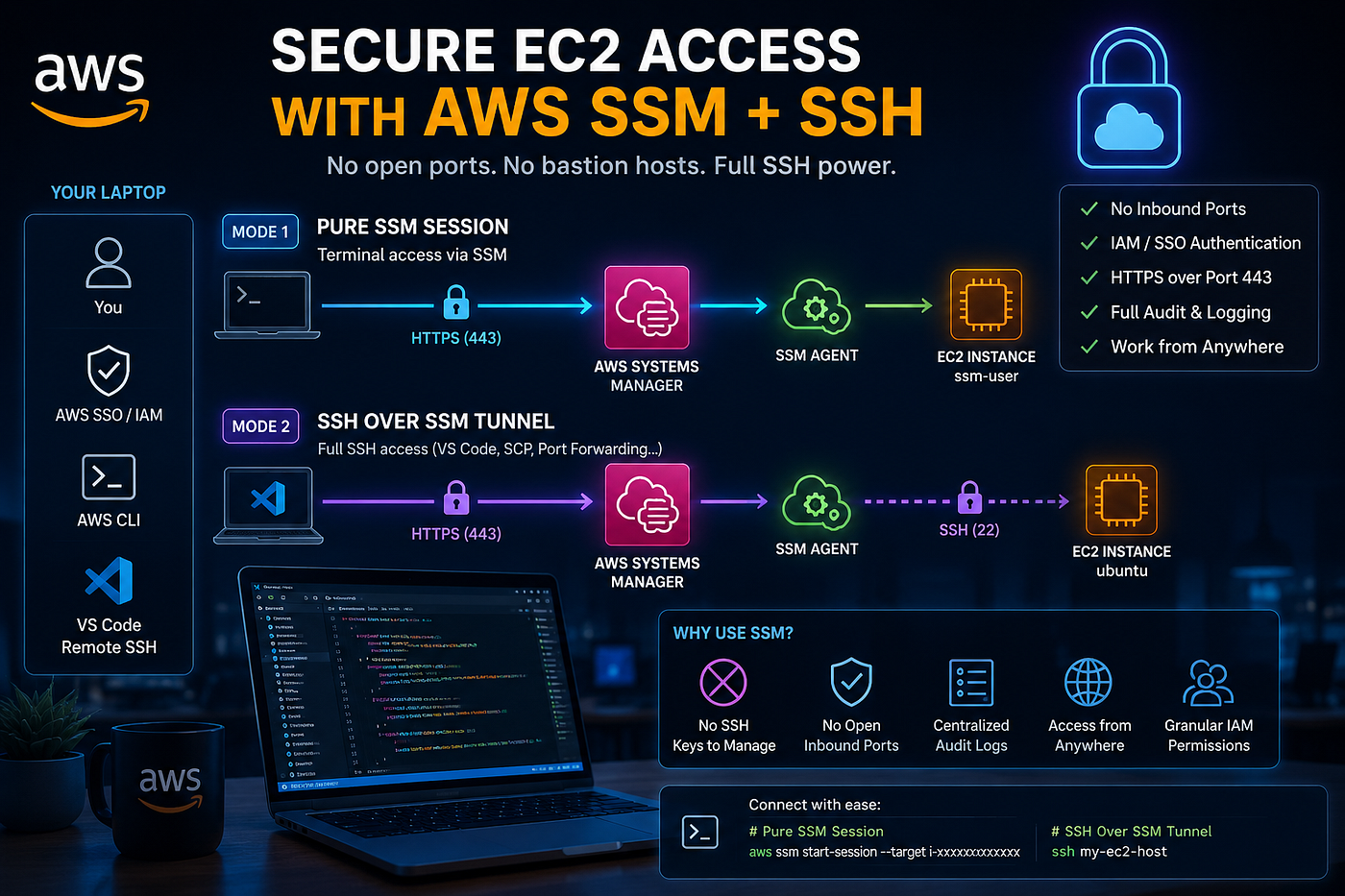

The Two Ways to Use SSM

This is the key distinction most documentation skips.

There are actually two different connection models.

Mode 1: Pure SSM Session

This is the simplest approach.

You connect directly through the SSM agent running on the instance.

aws ssm start-session \
  --target i-xxxxxxxxxxxxxxxxx \
  --profile engineering

Architecture:

Your Laptop
    │
 HTTPS (443)
    │
AWS Systems Manager
    │
SSM Agent on EC2
    │
ssm-user shell

Characteristics

• No SSH keys required
• No port 22 exposure
• IAM/SSO authentication only
• Browser-compatible
• Extremely secure
• Great for debugging and terminal work

Limitation

You do not get:

• VS Code Remote SSH
• SCP/SFTP
• Native SSH tooling
• Port forwarding
• SSH agent forwarding

This is a terminal session only.

If you need a full development workflow, use Mode 2.

Mode 2 — SSH Over an SSM Tunnel

This is the hidden superpower.

Instead of replacing SSH, SSM becomes the transport layer for SSH.

You still use SSH normally:

• VS Code Remote
• SCP
• SFTP
• Port forwarding
• SSH configs
• Native tooling

But the SSH traffic is tunneled securely through SSM over HTTPS.

No public port 22 required.

Architecture:

Your Laptop
    │
 HTTPS (443)
    │
SSM Tunnel
    │
SSH on Port 22 (internal only)
    │
ubuntu/ec2-user shell

This gives you the best of both worlds:

• Modern AWS-native authentication
• Full developer SSH workflows

Important Clarification

Even though SSM handles the tunnel securely, SSH authentication still happens inside the tunnel.

That means:

• You STILL need an SSH key pair
• Your .pem file is still required
• SSH authentication still validates normally

SSM replaces network exposure — not SSH authentication itself.

Step-by-Step Setup

1. Install the AWS CLI

Install the AWS CLI from the official AWS documentation.

Verify:

aws --version

2. Install the Session Manager Plugin

This plugin is required for both SSM modes.

Install the Session Manager plugin for the AWS CLI — AWS Systems Manager

Windows PowerShell

Invoke-WebRequest -Uri `
"https://s3.amazonaws.com/session-manager-downloads/plugin/latest/windows/SessionManagerPluginSetup.exe" `
-OutFile "$env:TEMP\SessionManagerPluginSetup.exe"

Start-Process `
"$env:TEMP\SessionManagerPluginSetup.exe" `
-Wait

Verify installation:

session-manager-plugin --version

3. Configure AWS SSO

Your AWS config might look like this:

[profile engineering]
sso_session = company_sso
sso_account_id = 111122223333
sso_role_name = AdministratorAccess
region = eu-central-1

[sso-session company_sso]
sso_start_url = https://example.awsapps.com/start
sso_region = eu-central-1
sso_registration_scopes = sso:account:access

Login:

aws sso login --profile engineering

All sensitive identifiers above are anonymized intentionally.

4. Configure SSH Over SSM

Now the powerful part.

Add this to your SSH config:

Windows

Path:

%USERPROFILE%\.ssh\config

Linux/macOS

Path:

~/.ssh/config

Config:

Host production-app
    User ubuntu
    IdentityFile ~/.ssh/my-key.pem

    ProxyCommand powershell -Command "
    aws sts get-caller-identity --profile default 2>$null;
    if ($LASTEXITCODE -ne 0) { aws sso login --profile default };
    aws ssm start-session ^
      --target i-xxxxxxxxxxxxxxxxx ^
      --document-name AWS-StartSSHSession ^
      --parameters 'portNumber=22' ^
      --profile engineering
    "

    StrictHostKeyChecking no
    ServerAliveInterval 60
    ServerAliveCountMax 3

Connecting

Pure SSM

aws sso login --profile engineering

aws ssm start-session \
  --target i-xxxxxxxxxxxxxxxxx \
  --profile engineering

Switch user if needed:

sudo su ubuntu

SSH over SSM

ssh production-app

That’s it.

You now have:

• Full SSH
• No exposed port 22
• IAM-authenticated access path
• Secure HTTPS transport

Final Thoughts

SSM fundamentally changes how EC2 access should be handled.

You no longer need:

• Public SSH exposure
• Bastion hosts
• VPN dependency
• Shared SSH keys across teams

And with SSH-over-SSM, you don’t even have to sacrifice developer experience.

You keep:

• Native SSH workflows
• VS Code Remote
• SCP
• Port forwarding

while gaining:

• IAM authentication
• HTTPS transport
• centralized auditing
• dramatically reduced attack surface

For infrastructure and platform teams, this is one of the cleanest upgrades you can make to your AWS access model today.
