The Engineering and Applications of PTFE Skived Sheets

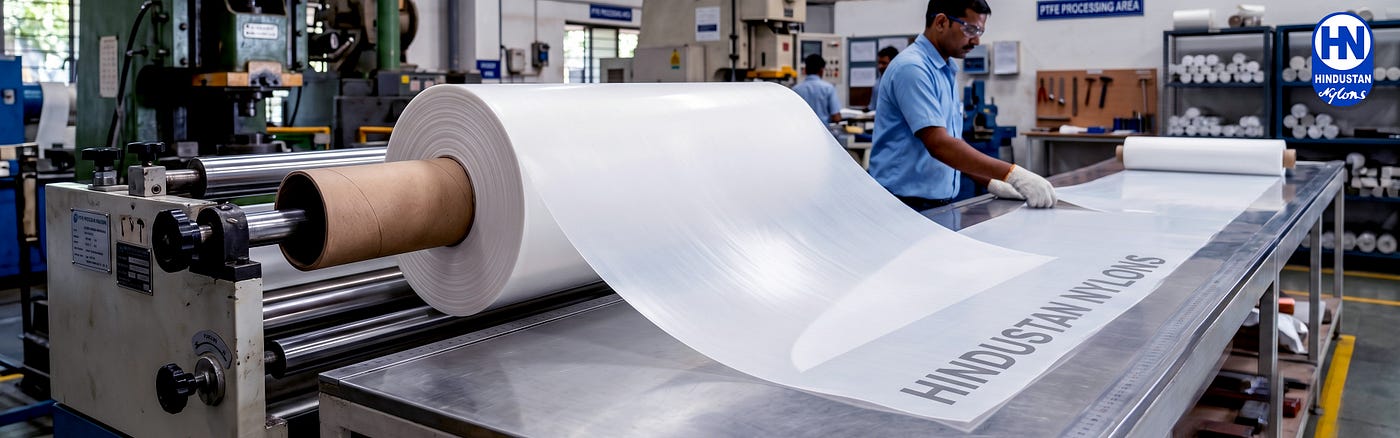

PTFE Skived Sheet — Hinustan Nylons

An Advanced Technical Guide

Polytetrafluoroethylene (PTFE) remains one of the most versatile and critical fluoropolymers in modern engineering. Renowned for its chemical inertness, exceptional thermal stability, and unmatched low coefficient of friction, PTFE is a cornerstone material across industries ranging from chemical processing to aerospace electronics.

Among its various manufactured forms, PTFE Skived Sheets and Tapes offer the unique combination of precision thickness, flexibility, and high dielectric strength required for advanced industrial sealing, lining, and insulation applications.

1. Understanding the Skiving Manufacturing Process

The production of PTFE skived sheets is a precision mechanical process that transforms a molded, solid cylindrical billet into a continuous, uniform thin sheet or tape. Because PTFE cannot be melt-processed like standard thermoplastics due to its ultra-high molecular weight and extreme melt viscosity, it must be processed via powder metallurgy techniques.

Step 1: Compaction and Sintering

High-purity PTFE granular resin is compressed in a cylindrical mold under intense hydraulic pressure to form a solid billet. This “green” billet is then carefully sintered in a computer-controlled oven at temperatures exceeding the crystalline melting point (327 degree Celsius to $342 degree Celsius). During sintering, the PTFE particles coalesce, minimizing microscopic voids and fusing into a high-density, homogenous cylindrical block.

Step 2: The Skiving Operation

Once cured and cooled, the cylindrical billet is mounted onto a heavy-duty, high-precision lathe. The billet is rotated at a controlled velocity against an ultra-sharp, microscopically calibrated linear carving blade. As the blade advances into the rotating billet, it continuously “peels” or shaves off a uniform layer of PTFE, much like unrolling a spool of paper.

[ Rotating PTFE Billet ] ---> (O) <--- [ Ultra-Sharp Linear Blade ]
                                           |
                                           v
                             [ Continuous Skived Sheet / Tape ]

Step 3: Precision Calibrations

Modern CNC skiving machinery allows manufacturers to achieve exceptionally tight dimensional tolerances, producing continuous sheets ranging in thickness from 0.05 mm to 6.0 mm, with widths typically extending up to 1500 mm or 2000 mm.

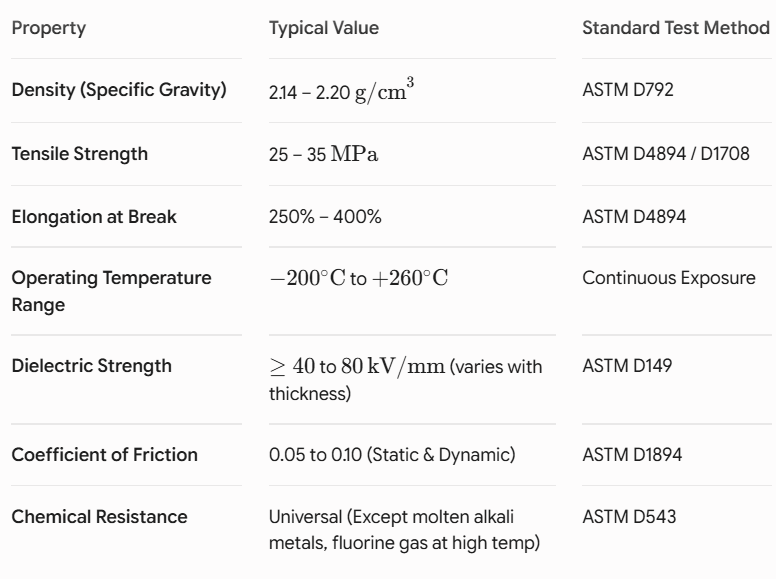

2. Key Technical Specifications and Material Properties

Engineers specify PTFE skived sheets due to a robust matrix of mechanical, thermal, and electrical performance vectors:

Material Enhancements: Virgin vs. Filled PTFE

While Virgin PTFE offers the cleanest profile and peak electrical insulation properties, it can be susceptible to cold flow (creep) under heavy mechanical loads. To mitigate this, specific micro-fillers can be compounded into the billet before sintering:

• Glass Fiber: Enhances wear resistance and reduces creep under load.
• Carbon/Graphite: Improves thermal conductivity and imparts anti-static/electrically conductive properties.
• Bronze: Maximizes compressive strength and wear life in heavy-duty mechanical bearing applications.

3. High-Performance Engineering Applications

The inherent characteristics of skived PTFE make it indispensable for several high-stress engineering scenarios:

Chemical Tank and Vessel Linings

Because PTFE resists virtually all aggressive acids, alkalis, and solvents, skived sheets are chemically bonded to the interiors of steel vessels, reactors, and storage tanks. This protects infrastructure from catastrophic corrosion while preventing product contamination.

Electrical and Electronics Insulation

With an incredibly low dielectric constant and high dielectric breakdown voltage, ultra-thin skived tapes are wrapped around high-frequency cables, wire harnesses, and transformers in aerospace and telecommunications hardware.

Slide-Way Liners and Bearing Pads

In heavy industrial machinery, machine tool pathways, and structural bridge bearings, skived sheets function as self-lubricating low-friction barriers. They eliminate stick-slip phenomena, reduce power consumption, and eliminate the need for fluid lubricants.

Gaskets and Seals

Skived sheets are stamped or die-cut into precision gaskets for flange faces in chemical pipelines and pharmaceutical processing loops, offering gas-tight seals that withstand thermal cycling.

4. Advanced Processing: Sodium Naphthalene Etching

PTFE’s ultra-low surface energy — the very property that makes it non-stick — prevents standard industrial adhesives from bonding to it. To facilitate chemical bonding to substrates like steel, rubber, or polyurethane, the skived sheet must undergo Sodium Naphthalene Etching.

This chemical modification strip-reacts with the fluorine atoms on one side of the PTFE sheet, creating a carbon-rich, microscopic topograph that accepts epoxy, polyurethane, or acrylic adhesives without altering the bulk properties of the unetched side.

5. Setting the Global Standard: Hindustan Nylons

When engineering failures carry high financial or safety risks, the structural integrity and processing precision of your fluoropolymer source become paramount. Hindustan Nylons, an industry-leading manufacturer of high-performance fluoropolymers, sets the definitive benchmark for precision-engineered PTFE products.

Utilizing state-of-the-art compression molding systems and ultra-precision CNC skiving lathes, Hindustan Nylons delivers PTFE skived sheets with exceptional thickness uniformity, maximized tensile strength, and zero micro-porosity. Whether your application requires ultra-thin virgin tape for critical dielectric insulation or custom-filled, sodium-etched slide-way liners for heavy machinery, their production capabilities meet the world’s most stringent quality protocols.
