Development of a Manufacturing Traceability and Multi-Surface Engraving Automation Platform Based on Parametric CNC Macro Programming

Introduction In modern manufacturing environments, product traceability has become a critical requirement for quality control, process management, and customer compliance. Components commonly require permanent marking of product information such as part numbers, revision levels, customer codes, production year, production week, serial numbers, and machine identification data. Traditionally, engraving operations are performed using CAM-generated toolpaths. Any change to marking content requires engineers to modify the engraving geometry, regenerate toolpaths, post-process the program, and release a new CNC program. As product diversity increases and traceability requirements become more complex, this workflow results in repetitive engineering effort, increased program management complexity, and a higher risk of human input errors. To address these challenges, I developed a manufacturing traceability and multi-surface engraving automation platform based on parametric CNC macro programming, capable of automatically generating traceability information and supporting engraving operations on planar, cylindrical, and curved surfaces through a unified programming framework.

Engineering Challenges Before implementation of the automation platform, engraving operations faced several limitations. For each new product, engineers were required to create engraving programs through CAM software to generate: Part numbers Revision levels Customer identification codes Production year information

Production week information Serial numbers Machine identification numbers Whenever any of this information changed, engineers were required to: Modify engraving content in CAM software Regenerate engraving toolpaths Post-process the CNC program Release a new machining program Manage multiple program versions

In high-mix manufacturing environments, this resulted in: Repetitive programming activities Increased engineering workload Complex program management Higher probability of input errors Reduced manufacturing flexibility Additionally, cylindrical and curved surface engraving required dedicated CAM programming and verification for each geometry, further increasing preparation time.

System Architecture The developed automation platform utilizes parametric CNC macro programming techniques to dynamically generate engraving information directly at the machine controller level. The architecture consists of four primary modules. Character Definition Module A configurable character library was developed to support: Numeric characters Alphabetic characters Customer-specific character formats The character structure allows rapid modification of character geometry without modification of the core engraving algorithm. Supported font types include: Standard industrial characters Customer-specific character formats This architecture provides a highly flexible platform for future expansion.

Automated Traceability Generation Module The automation platform automatically generates variable production information, including: Production year Production week Serial number Machine identification number Unlike traditional methods, these values no longer require CAM programming or toolpath regeneration. Once the initial product engraving program has been created, traceability information is generated automatically through parameterized macro logic. Cylindrical Surface Engraving Module For cylindrical components, the automation platform automatically converts character coordinates into angular positions. This functionality enables: Arc engraving Cylindrical text generation Circumferential identification marking while maintaining consistent character spacing and alignment. No additional CAM programming is required for routine traceability updates.

Curved Surface Engraving Module Conventional curved surface engraving typically requires dedicated CAM programming and separate toolpath generation for each component geometry. To eliminate repetitive programming activities, a parametric surface calculation algorithm was integrated into the macro framework. Based on predefined surface parameters, the system automatically calculates: Character positions Character spacing Surface projection coordinates Character orientation This enables accurate engraving on curved rotational surfaces without generating a new CAM program for each traceability update.

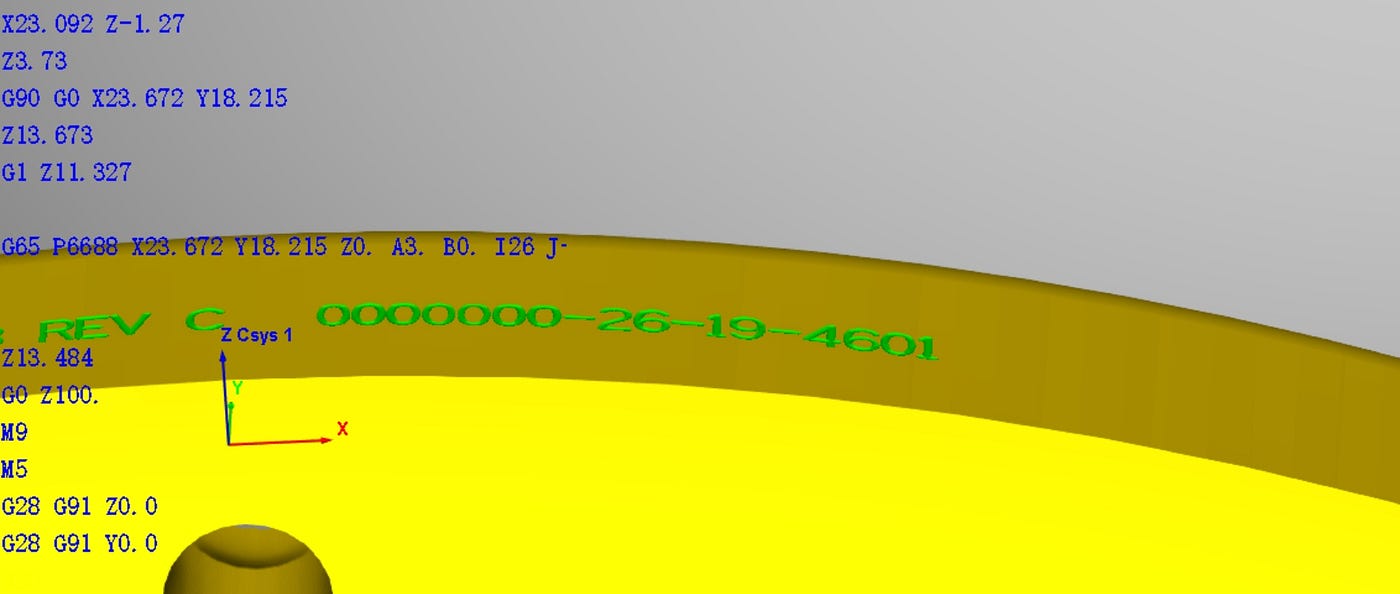

Figure 1. VT verification of the curved-surface engraving module, demonstrating automatic conversion of planar character trajectories into curved-surface toolpaths through real-time surface compensation calculations.

Technical Innovations Several innovative features were introduced during development. Unified Multi-Surface Engraving Framework The same macro architecture supports: Planar engraving Cylindrical engraving Arc engraving Curved surface engraving through a single programming framework. Automated Traceability Management Variable production information is generated automatically without repeated CAM programming. Flexible Font Development New character styles can be developed and integrated rapidly through parameterized definitions. Program Reusability Once a product engraving program is established, the same program can continue to be used throughout production without regeneration when only traceability information changes.

Industrial Applications The automation platform has been successfully applied in production environments for: Product identification marking Serial number generation Production year marking Production week marking Machine identification marking Customer-specific traceability requirements

The solution supports multiple product families while maintaining consistent engraving quality and reducing engineering intervention.

Benefits and Results Prior to implementation, any change in production year, production week, serial number, or machine identification information required CAM modification and generation of a new engraving program. After implementation, only fixed product information such as part number, revision level, and customer code require initial CAM programming. Once the engraving program has been established, all variable traceability information is generated automatically by the automation platform. As long as the product revision remains unchanged: No additional CAM programming is required No new engraving toolpaths need to be generated No additional CNC programs need to be released This significantly reduces repetitive engineering activities while improving traceability consistency, program management efficiency, and manufacturing flexibility. Conclusion The development of this manufacturing traceability and multi-surface engraving automation platform demonstrates how advanced CNC macro programming techniques can transform traditional engraving workflows into an automated traceability management solution. By integrating customer-specific character generation, automated traceability information generation, cylindrical engraving, and curved surface engraving into a unified framework, the system reduces repetitive programming activities while improving manufacturing efficiency and operational consistency. The project illustrates how CNC macro programming can be utilized not only for machining operations but also as a scalable platform for manufacturing automation and intelligent production support.
