ESXi 8 Error Code Fix: Real-World Troubleshooting for ESXCLI Memory Limits, TPM Hangs, and CPU Compatibility

Taming the ESXi 8 Beast: Confessions of a Hardened Sysadmin

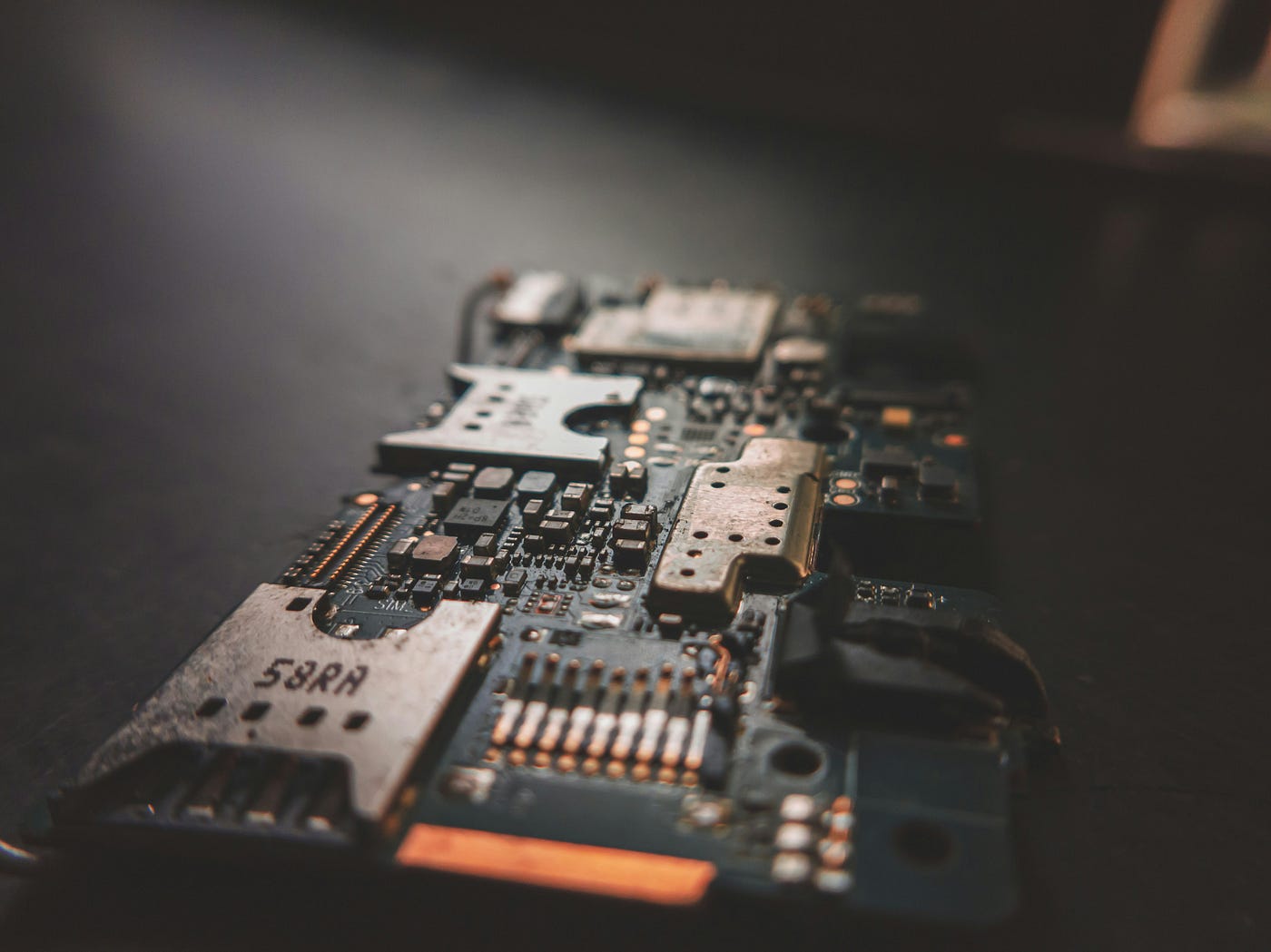

Photo by Vinayak Veer on Unsplash

I’m so done with manually crunching numbers in that clunky Excel sheet every month. There has to be a better way to manage my personal finances without all the repetitive busywork.

As a top-tier tech blogger and Medium sensation, I’ve seen my fair share of mind-numbing IT tasks. But when it comes to personal finance, the drudgery reaches a whole new level. That’s why I decided to take matters into my own hands and build a custom financial automation system — one that could handle the heavy lifting of tracking investments, calculating exchange rates, and forecasting cash flow.

The heart of my setup is a set of Python scripts that pull data from various APIs, crunch the numbers, and spit out clean reports. It’s a true MLOps pipeline for my personal finances, with stateless microservices managing everything from portfolio rebalancing to tax planning.

But of course, it wouldn’t be a tech blog without a few war stories. When I recently batch-upgraded my Dell PowerEdge servers to ESXi 8.0 Update 3e, I slammed into a handful of classic failures that had the Reddit community up in arms for months. Let me walk you through the fixes I had to implement to keep my financial fortress running smoothly.

Error #1: ESXCLI Upgrade Fails with “Error Code:5”

Symptoms: Running esxcli software vib update to apply a patch drops "Error Code:5" with zero context. The log just says "VIB installation failed, out of memory."

Root Cause: ESXi 8 defaults ESXCLI to a measly 300MB memory limit. When you throw a large offline bundle at it (U3e is 800MB+), parsing the VIB metadata blows right past that ceiling. This started biting people hard in Q2 2025. As one Reddit comment put it: “300MB limit in 2025 is a joke.”

Fix Steps: 1. SSH into the ESXi host 2. Bump the ESXCLI memory limit from 300MB to 500MB: bash esxcli system settings advanced set -o /UserVars/EsxcliMemoryLimit -i 500 3. Verify the change took: bash esxcli system settings advanced list -o /UserVars/EsxcliMemoryLimit 4. Retry the upgrade: bash esxcli software vib update -d /vmfs/volumes/datastore1/VMware-ESXi-8.0U3e-24585383-depot.zip

Pro tip: If it still fails, check /var/log/esxcli.log for "Out of memory." One of our nodes needed 600MB before it stopped whining.

Error #2: ESXi 8 Login/Connection Failure

Symptoms: vCenter throws “connection error” when adding an ESXi host. Monitoring tools like Checkmk can’t reach it either. Reddit users report curl https://esxi-ip times out, but ping works fine.

Root Cause: This is almost always a DNS resolution failure, not an expired password. ESXi 8 tightened reverse DNS requirements. If vCenter resolves the hostname to a wrong IP or an incomplete FQDN, it slams the door.

Fix Steps: 1. From the vCenter SSH shell, test DNS: bash nslookup ESXihostname.yourdomain.com 2. If the IP is wrong or missing, add both A and PTR records on your DNS server. 3. Flush the ESXi host's DNS cache: bash esxcli network ip dns cache flush 4. Test connectivity: bash curl -k https://esxi-ip You should get the ESXi web UI HTML back.

Don’t fall for this trap: Reddit users have reported spending hours on DNS only to find Lockdown Mode was enabled. Check it:

esxcli system settings security lockdown list

If it’s on and no exception users are configured, disable it:

esxcli system settings security lockdown set --mode=disabled

Error #3: “Unsupported CPU” When Creating First VM

Symptoms: Fresh ESXi 8 install on a Dell T150, and the moment you try to create a VM, it errors out with a CPU incompatibility message.

Root Cause: VMware ESXi 8.0 dropped support for a ton of older CPUs. Intel below Ice Lake (Gen 3 Xeon Scalable) and AMD below Milan (EPYC 7003) are out. But here’s the kicker: the Xeon E-2300 series (standard in the T150) is Rocket Lake architecture, yet it’s not in the ESXi 8 CPU whitelist.

CPU FamilyESXi 8 SupportNotesIntel Xeon Scalable Gen 3 (Ice Lake)✅ NativeOfficial listIntel Xeon Scalable Gen 4 (Sapphire Rapids)✅ NativeOfficial listIntel Xeon E-2300 (Rocket Lake)❌ UnsupportedRequires workaroundAMD EPYC 7002 (Rome)❌ UnsupportedRequires workaroundAMD EPYC 7003 (Milan)✅ NativeOfficial list

Fix Steps:

Option A: Modify the ESXi Install ISO (recommended) 1. Mount the ESXi 8 ISO 2. Edit boot.cfg, append to the kernelopt line: allowLegacyCPU=true 3. Repack the ISO and install from it

Option B: Patch an already-installed system 1. SSH into the ESXi host 2. Edit /etc/vmware/config, add this line: vhv.allowLegacyCPU = "TRUE" 3. Reboot

Caveat: Bypassing the CPU check means you’re running on an untested platform. We’ve had an E-2388G running stable on ESXi 8.0u3e for 3 months, but if you hit random crashes, don’t say I didn’t warn you.

Error #4: Boot Hangs at “Relocating modules and starting up the kernel”

Symptoms: ESXi 8 boots, the progress bar gets halfway, then the console freezes on “Relocating modules and starting up the kernel.”

Root Cause: This is almost always a TPM 2.0 compatibility issue with ESXi 8. Certain Dell T150 and HP ProLiant models have TPM 2.0 chips that deadlock the module loading process during Secure Boot. One Reddit user vented: “ESXi 8 says ‘TPM 2.0 device detected’ and then just hangs. Great UX.”

Fix Steps: 1. Reboot and enter BIOS/UEFI setup 2. Navigate to Security → TPM 2.0 Security, change from “Enabled” to “Disabled” or “No Operation” 3. Save and exit 4. If you need TPM for VM encryption, you’re stuck waiting for a VMware patch. KB 82794 acknowledges the issue.

Alternative: If your BIOS won’t let you disable TPM (some ODMs lock it), try booting into Recovery Mode by holding Shift+R at the ESXi boot screen, then run:

esxcli system settings kernel set -s tpm -v FALSE

Reboot after.

FAQ

How do I patch the free version of ESXi 8?

Free ESXi 8 lacks vCenter’s Lifecycle Manager, so you patch manually. Download the offline bundle (.zip), upload it to a datastore, SSH into the host, and run esxcli software vib update -d /path/to/patch.zip. Don't forget to enter Maintenance Mode first.

What’s the current version of ESXi 8?

As of June 2026, the latest release is ESXi 8.0 Update 3e, Build 24585383. This build fixes the AMD system hang bug that triggered after ~1044 days of uptime.

How do I resolve VIB errors during an ESXi upgrade?

VIB errors come in two flavors: dependency conflicts and signature issues. For conflicts, use esxcli software vib remove -n <vib-name> to nuke the offending VIB. For signature issues, you can add --no-sig-check to the update command, but don't do that in production.

How do I recover an ESXi 8 password?

Physical access: reboot, hit Shift+R at the GRUB menu to enter Recovery Mode, and select “Reset System Configuration” to reset the root password. Remote: if SSH is still open, just run passwd. If Lockdown Mode is on and you forgot the password, you're looking at a reinstall.

Wrapping Up

ESXi 8 is rock-solid once it’s running, but the road to get there is littered with avoidable traps. From the ESXCLI memory limit that should have been raised years ago, to TPM deadlocks that VMware should have caught in QA, every error code tells a story of incomplete testing.

The Reddit thread about “My fix for Claude Code” wasn’t about ESXi, but the debugging mindset applies perfectly: ignore the generic error message, go read the logs. /var/log/hostd.log and vmkernel.log hold 90% of the answers. The other 10%? That's what community forums are for.
