10 Sets ND Wire Rope Hoists To Albania

The ND wire rope hoist is also known as a European Wire Rope Hoist. This is a new, compact lifting equipment that complies with both national and European standards. It is characterized primarily by its lightweight design, precision control with dual-speed/frequency conversion, and anti-roller design. Compact, precise, and efficient features allow it to be widely used by industries like hydropower, steel, petrochemicals, and coal, as well as transportation, mining,g and environmental protection. It is also widely used for ports, automobiles and ships, the defense industry, railroads, and military and aerospace. Recently, an Albanian customer purchased 10 sets of ND-type hoists. The client is an Albanian manufacturer of automobile parts. They have installed new production lines due to business needs. The lifting hoist is needed to move raw materials as well as finished products. They ordered the ND wire rope hoists after learning about their factory, work frequency, and workshop. Please contact us if you plan to buy a hoisting system from China. We will provide you with a price that is affordable as soon as we can! You are also welcome to visit our factory.

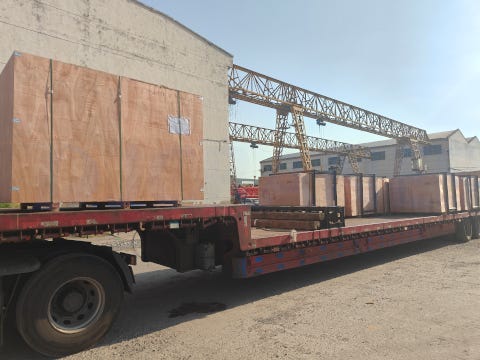

ND Wire Rope Hoist To Albania

Technical Features Of ND Wire Rope Hoist

1. The ND-type electric wire rope hoist combines advanced technology with manufacturing expertise to create an energy-efficient, environmentally friendly product. The drum unit is parallel to the motor and is connected via a reducer. This layout results in compact dimensions.

2. The lifting motor uses a dual-speed, squirrel-cage braking motor with 2/12 poles. It is designed to be low-vibration and quiet. The motor housing, which is formed from aluminum alloy by extrusion in order to reduce weight and increase heat dissipation, is made out of aluminum alloy. The gears are made from low-carbon steel alloy using the carburizing process, quenching, and grinding. Gear surface hardness is greater than 60 HR, and manufacturing precision is grade 6 or better. The reducer is designed to be maintenance-free, and the transmission gears are submerged in oil while operating.

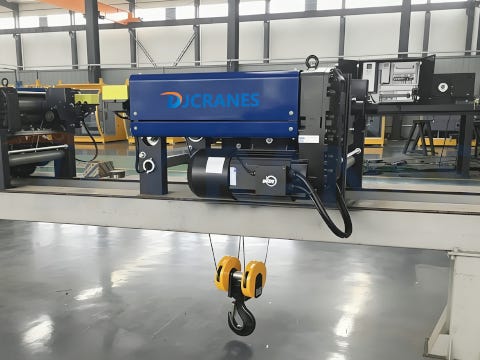

ND Type Wire Rope Hoist

3. The brake system uses a maintenance-free, electromagnetic disc brake that has a minimum safety factor of 1.8. The brake clearance is automatically adjusted when the brake pads are worn. The safety system incorporates overload protection and power loss protection as well as phase reversal and upper and lower limit switches. It also has real-time storage for fault, operational, and status information.

4. The hoist is designed with a modular construction, optimized load-bearing structure, and high-strength swivel hooks that minimize swinging when lifting. The counterweight box that is traditionally used on low clearance hoists has been replaced by a counter-rolling assembly. This reduces overall weight. Both ends are equipped with horizontal guide wheels.

5. Control electrical components are imported. Lifting is equipped with dual-speed stepless speed regulation or frequency-controlled, which ensures smooth operation and precise positioning.

ND Wire Rope Lift Maintenance and Use Tips

1. The hoist should be tested several times before each use. Check that the buttons are working correctly and that the limit switch is closing dynamically and reliably. Also, check if there is any abnormal sound or smell during operation. Before use, any abnormalities must be addressed immediately.

2. It is prohibited to operate the electric wire-rope hoist in an unapproved environment or exceed its rated load per hour or rated cycle number.

3. The fireproof limiter on the electric wire rope lift is a safety feature designed to avoid accidents by preventing the hook from going beyond its maximum position. The limiter can only be used to set upper and lower limits. It cannot be removed arbitrarily.

4. To prevent accidents, it is forbidden to suspend heavy loads above people or equipment that could cause an accident.

5. If the brake fails and the body is rapidly fixed during operation, press the upward button immediately to raise the load a certain distance. Press the downward button then to lower the weight at normal speed. Immediately identify and eliminate the problem after unloading.

6. To prevent component deformation, it is not recommended to suspend heavy loads in the air for prolonged periods.

7. If the button fails or the contacts of the contactor become jammed, it is necessary to immediately cut the power, identify the problem, and eliminate the fault.

8. Remove the guide rope ring and neatly reorganize any tangled or loose wire rope before reinstalling it. Continue rotating the drum to loosen the wire rope. This could damage the guide.

9. Do not press two buttons at the same time to reverse the motion of the electric wire-rope hoist.

10. To ensure safety, after use, the hook must be raised at least 2 meters,s and the power switch turned off.

11. The wire rope’s end must be secured. Keep the surface of the wire rope clean and inspect it regularly for wear. Follow operating procedures and control waste.

Finally Words

Our ND wire rope hoists, as a skilled manufacturer and supplier of hoists in China, have been sold in over 100 countries worldwide. Don't hesitate to get in touch with us if you have any questions or would like a quote.
