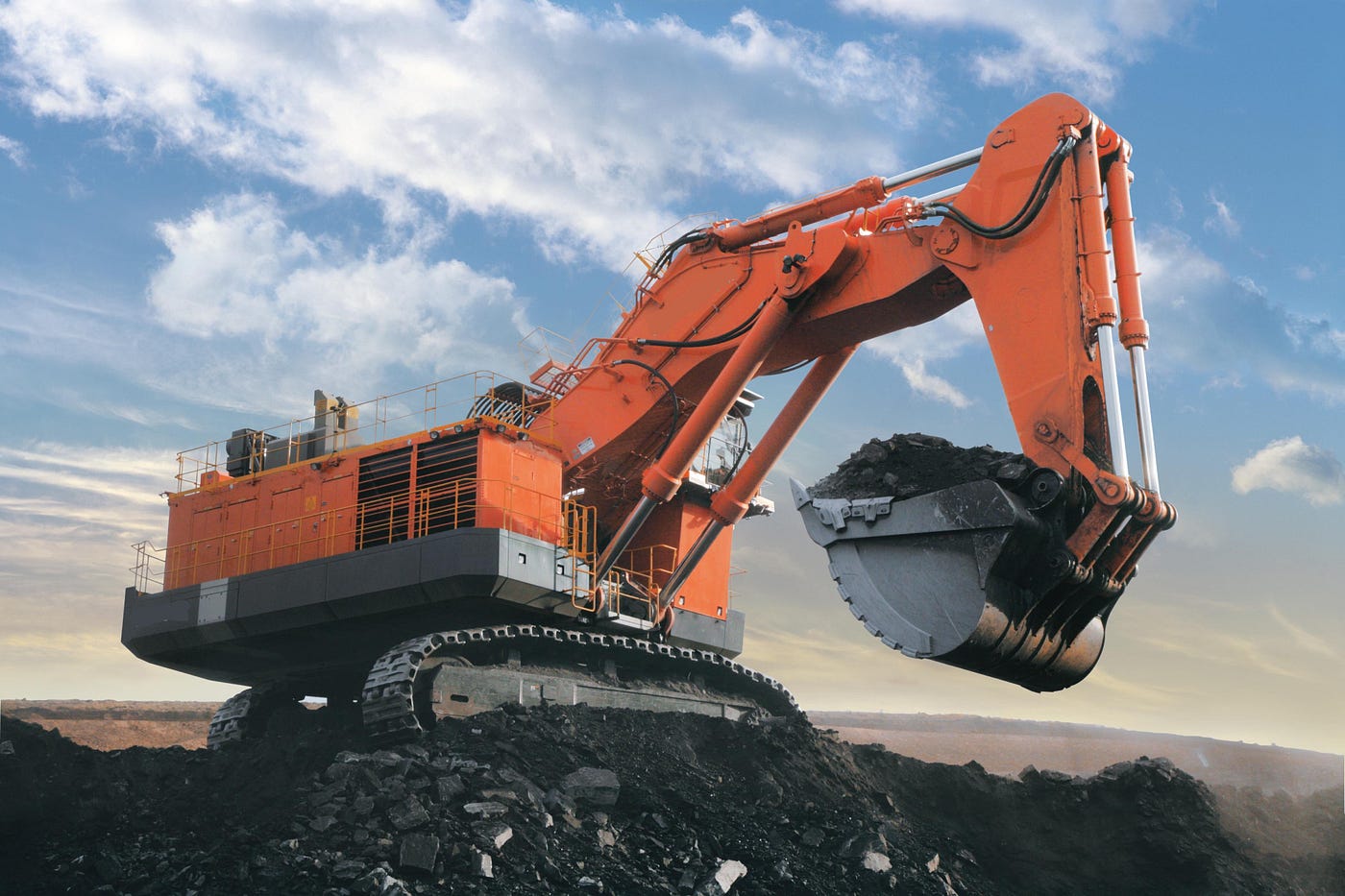

How to Diagnose and Fix Electrical System Failures in a Hitachi Excavator?

Electrical system failures in heavy equipment like Hitachi Excavators can halt operations, delay projects, and lead to costly repairs if not addressed promptly. Hitachi Excavators, celebrated for their precision and durability in construction, mining, and earthmoving tasks, rely on complex electrical systems to control hydraulics, monitors, sensors, and engine functions. Electrical issues often manifest as failure to start, erratic hydraulic performance, dashboard warning lights, or malfunctioning attachments. In this comprehensive, guide, we’ll explore the common causes of electrical system failures in Hitachi Excavators, provide a detailed step-by-step diagnosis process, and outline practical repair solutions. Crafted with insights from field mechanics and Hitachi service protocols, this humanized guide, complete with FAQs, is designed for operators, technicians, and fleet managers to restore equipment functionality efficiently and keep your **Hitachi Excavator** running smoothly.

Understanding the Electrical System in Hitachi Excavators

Hitachi Excavators, such as those in the ZX series, feature sophisticated electrical systems that integrate the Electronic Control Unit (ECU), wiring harnesses, sensors, solenoids, relays, fuses, and batteries to manage operations like hydraulic control, engine performance, and operator interfaces. These systems operate under harsh conditions, exposed to dust, vibration, and moisture, making them susceptible to failures. Common symptoms include intermittent power loss, non-responsive controls, or error codes on the monitor. Addressing these issues early prevents damage to critical components like the ECU or hydraulic solenoids, saving thousands in repairs.

Common Causes of Electrical System Failures in Hitachi Excavators

Electrical failures stem from a variety of issues, often exacerbated by environmental factors or maintenance oversights. Based on real-world reports and Hitachi’s technical data, here are the top causes:

1. Corroded or Loose Wiring Connections: Vibration and moisture can corrode connectors or loosen wiring harnesses, disrupting signals to sensors or solenoids. This is common in excavators working in wet or coastal environments.
2. Weak or Dead Battery: A failing battery or poor charging system can cause insufficient voltage, leading to erratic operation or failure to start. This is frequent in older Hitachi models with high hours.
3. Faulty Sensors: Sensors monitoring hydraulic pressure, engine temperature, or oil levels can fail due to wear or contamination, sending incorrect data to the ECU.
4. Blown Fuses or Faulty Relays: Overloaded circuits or short circuits can blow fuses or damage relays, cutting power to critical systems like the hydraulic pump or starter.
5. Damaged Wiring Harnesses: Abrasion from debris, improper routing, or rodent damage can fray wires, causing shorts or open circuits, especially in undercarriage or boom areas.
6. Malfunctioning ECU or Software Issues: The ECU may fail due to voltage spikes or require reprogramming, particularly in newer Hitachi Excavators with advanced diagnostics.
7. Alternator or Charging System Failure: A worn alternator or faulty voltage regulator can undercharge the battery, leading to system-wide electrical issues.
8. Water Ingress or Environmental Damage: Exposure to water or extreme temperatures can degrade electrical components, particularly in unprotected areas like the cab or engine bay.

Proactive inspections can catch these issues early, preventing downtime and costly replacements.

Step-by-Step Diagnosis of Electrical System Failures in Hitachi Excavators

Diagnosing electrical issues requires precision and the right tools, including a multimeter, diagnostic scanner, insulation tester, and the Hitachi technical manual (e.g., for ZX models). Safety is critical: park the excavator on level ground, disconnect the battery, and wear insulated gloves when working on electrical components.

1. Visual Inspection: Check for obvious signs like corroded terminals, frayed wires, or water in connectors. Inspect the battery, fuse box, and wiring harnesses around the cab, boom, and counterweight.
2. Test Battery Voltage: Use a multimeter to measure battery voltage (should be 12.6V when off, 13.5–14.5V when charging). Load-test the battery to confirm capacity. Check terminals for corrosion.
3. Check Fuses and Relays: Inspect the fuse panel (typically in the cab) for blown fuses using a multimeter in continuity mode. Test relays for clicking sounds or replace suspect ones.
4. Scan for Diagnostic Codes: Connect a Hitachi-approved diagnostic tool (like Dr. ZX or MPDr) to the ECU via the service port. Retrieve error codes related to sensors, solenoids, or ECU faults.
5. Test Sensors and Solenoids: Use a multimeter to check sensor resistance and voltage output against Hitachi specs. For solenoids, verify activation with a 12V power source or multimeter.
6. Inspect Wiring Harnesses: Trace harnesses for cuts, abrasions, or loose connections. Use an insulation tester to detect shorts or open circuits. Focus on high-vibration areas like the undercarriage.
7. Verify Alternator Output: Measure alternator output at operating RPM (should be 13.5–14.5V). Check the voltage regulator and drive belt for wear.
8. Water Damage Assessment: Look for signs of moisture in connectors or the ECU housing. Dry and seal affected areas or replace damaged components.

Document findings with photos and code logs — seasoned technicians emphasize this for tracking recurring issues.

Step-by-Step Repair Solutions for Electrical System Failures in Hitachi Excavators

Repairs should align with Hitachi’s service guidelines, using genuine parts for reliability. Repair times range from 2–10 hours, depending on complexity. Here’s how to tackle common issues:

1. Cleaning and Securing Connections:

• Clean corroded terminals with a wire brush and apply dielectric grease.
• Tighten loose connectors and secure harnesses with zip ties. Cost: $10–$50.

1. Replacing the Battery:

• Install a new Hitachi-approved battery matching the model’s specs (e.g., 12V, 100Ah).
• Clean terminals and ensure proper grounding. Cost: $100–$300.

1. Fixing Fuses and Relays:

• Replace blown fuses with the correct amperage (check the manual).
• Swap faulty relays with genuine Hitachi parts. Cost: $20–$100.

1. Repairing or Replacing Sensors/Solenoids:

• Replace faulty sensors (e.g., pressure or temperature) or solenoids with OEM parts.
• Calibrate using diagnostic software. Cost: $50–$200 per component.

1. Repairing Wiring Harnesses:

• Splice and solder damaged wires, sealing with heat-shrink tubing.
• Replace severely damaged harnesses with genuine Hitachi parts. Cost: $100–$500.

1. Addressing ECU Issues:

• Reprogram the ECU using Hitachi’s software or replace it at a certified dealer.
• Protect against future voltage spikes with a surge protector. Cost: $500–$2,000.

1. Fixing the Charging System:

• Replace a faulty alternator or voltage regulator.
• Check and replace the drive belt if worn. Cost: $200–$600.

1. Preventing Water Ingress:

• Seal connectors with silicone or replace weatherproof boots.
• Relocate exposed harnesses away from water-prone areas.

After repairs, test all systems (hydraulics, lights, and controls) for 30–60 minutes under load. Monitor for 50–100 hours to confirm reliability. Many operators report restored performance with these steps.

Preventive Measures to Avoid Electrical System Failures in Hitachi Excavators

Prevention is the best defense against electrical issues. Follow Hitachi’s maintenance schedule: inspect wiring and connections every 250 hours, replace batteries every 2–3 years, and check fuses monthly. Use dielectric grease on connectors in wet conditions. Train operators to report warning lights immediately. Leverage Hitachi’s Global e-Service for real-time diagnostics to catch issues early.

In conclusion, electrical system failures in Hitachi Excavators are fixable with careful diagnosis and timely repairs. This guide empowers you to tackle issues confidently, keeping your equipment productive and your projects on track.

FAQ

What are the first signs of electrical system failure in a Hitachi Excavator?

Early signs include failure to start, flickering dashboard lights, unresponsive hydraulic controls, or error codes on the monitor. Addressing these promptly prevents escalation.

How often should I inspect the electrical system on my Hitachi Excavator?

Check wiring, connectors, and battery health every 250 hours or monthly. Regular inspections catch corrosion or loose connections before they cause failures.

Can I diagnose Hitachi Excavator electrical issues without a diagnostic tool?

Basic checks like battery voltage or fuse continuity can be done with a multimeter, but a Hitachi diagnostic tool (e.g., Dr. ZX) is crucial for ECU and sensor diagnostics.

What causes wiring harness damage in Hitachi Excavators?

Vibration, debris abrasion, rodent chewing, or water exposure can damage harnesses, particularly in exposed areas like the boom or undercarriage.

How much does it cost to fix electrical issues in a Hitachi Excavator?

Costs range from $50 for minor fixes (fuses, connectors) to $2,000 for ECU replacement. OEM parts ensure durability and performance.

Can water exposure cause electrical failures in Hitachi Excavators?

Yes, water ingress in connectors, sensors, or the ECU can cause shorts or corrosion, especially in wet or humid conditions.

How do I know if my Hitachi Excavator’s battery is failing?

A battery reading below 12.6V when off or failing a load test indicates replacement is needed. Corroded terminals also suggest issues.

Are there common electrical problems specific to Hitachi Excavators?

Corrosion in wet environments and sensor failures in dusty conditions are frequent but can be mitigated with proper maintenance.

Should I use aftermarket parts for Hitachi Excavator electrical repairs?

Genuine Hitachi parts are recommended for reliability and warranty. Aftermarket parts may lead to compatibility issues or early failures.

Where can I find reliable Hitachi Excavator service manuals?

**Manualskart.com** provides instant access to official Hitachi manuals with detailed wiring diagrams and troubleshooting steps for electrical repairs.
