PAMQSFP28 100G PAM4 DWDM Optic Module

QSFP28 100G DWDM Dual CS Adaptor Transceiver

Product Function

1 Hot pluggable QSFP28 MSA form factor

2 Up to 80km reach for G.652 SMF with transport white box

3 Single +3.3V power supply

4 Temperature Range 0 to 70°C

5 Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA

6 Receiver: 2*27.5Gbaud/s Pin-PD ROSA

7 4*25G CAUI4 electrical interface

8 Integrated SFEC with high coding gain

9 PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible

10 Dual CS adaptor

11 Compatible with RoHS6

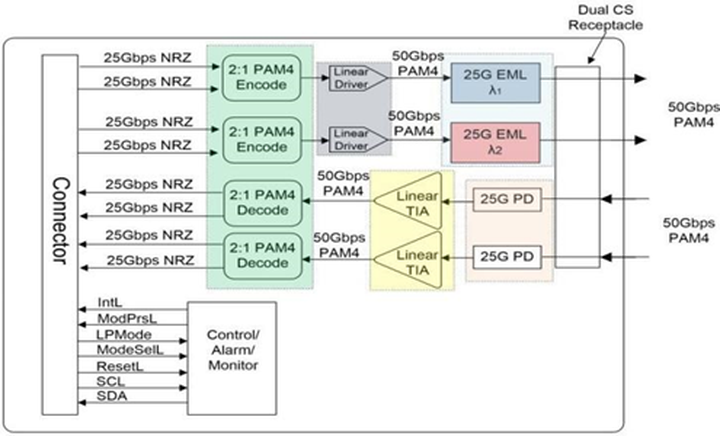

Transceiver Block Diagram

100G QSFP28 DWDM Solution

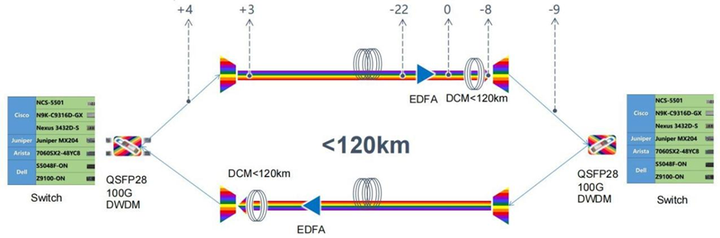

1 Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution

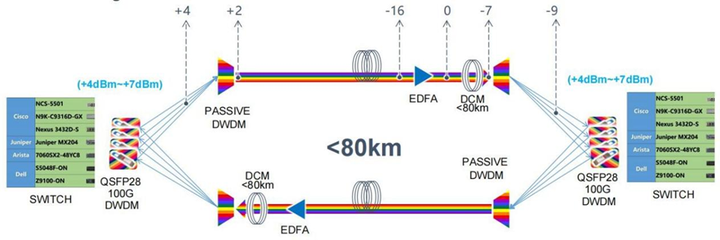

2 Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution

3 Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution

4 Passive DWDM MUX 48X100G QSFP28 DWDM 80KM Solution

Client demand solo specific DWDM Solution Consult info:
