Soft Robotics: A Non-Rigid Approach to Robotics

The Need for Soft Robotics

Robotics has come a long way from rigid, industrial arms bolted to factory floors. Imagine trying to thread a needle while wearing boxing gloves, or attempting to pick up a grape without crushing it using only a pair of pliers. This is the daily reality for traditional robots when faced with tasks that humans and animals perform effortlessly. Observe how your own hand can delicately hold a butterfly without harming it, then instantly switch to gripping a hammer with force. These biological marvels operate with a grace and adaptability that our most advanced machines can only dream of matching.

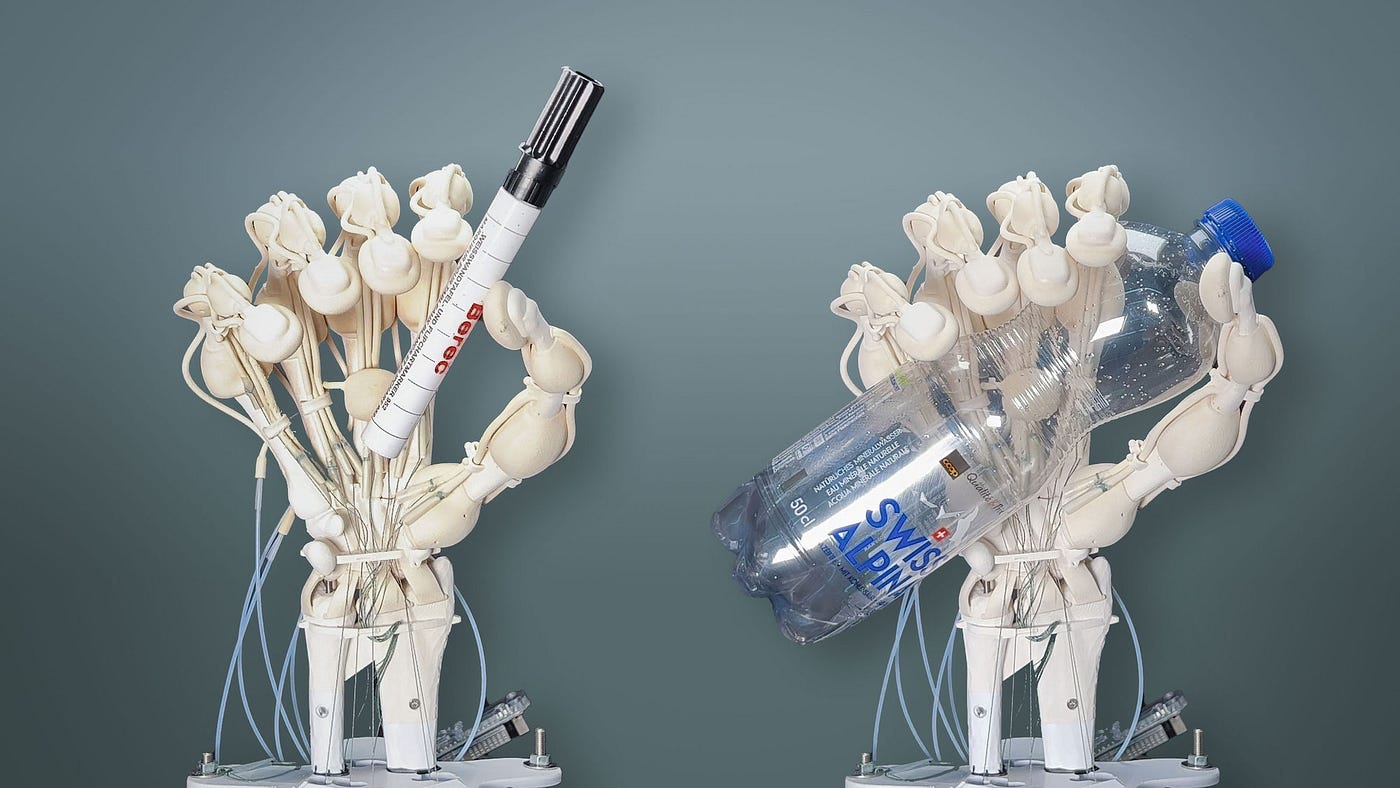

Image of 3D-printed soft robotic hand by Popular Science

Terminology

Soft Robotics: A field focused on creating robots from flexible, compliant materials that can safely interact with humans and adapt to complex environments.

Traditional actuators like motors, servos, hydraulics excel at predictable tasks in controlled environments. But they struggle when flexibility, light weight, and safe human interaction matter. That’s why researchers are turning to biology for inspiration. Nature’s solutions, from muscle fibers to cellular motors, achieve remarkable performance with minimal space and maximum adaptability.

Image of Traditional Motor vs. Biological Muscle Generated via Nano Banana

Myosin and RSA

Myosin is a fibrous motor protein that powers everything from muscle contraction to organelle transport inside our cells. Myosin works through a simple yet elegant mechanism: it repeatedly pushes against actin filaments and then returns to its starting position. This push-and-return motion, repeated countless times, generates long-distance movement from tiny molecular steps.

Terminology

Actin Filament: Protein filaments that serve as tracks for myosin movement, enabling muscle contraction and cellular transport.

The Robot Skin Actuator (RSA) is a thin, flexible sheet that closely mimics this myosin-inspired push-and-return mechanism. Just as myosin generates lateral motion along biological filaments, RSA’s surface protrusions create controlled lateral movement that can transport objects across its surface.

Terminology

Lateral Movement: Motion that occurs parallel to a surface, as opposed to perpendicular movement.

The result is an actuator that’s only 1.5–3.2 mm thick that is capable of complex, multi-directional movements and impressive load-bearing capacity. It can lift objects weighing up to 77 times its own weight (carrying 227 grams while weighing just 2.94 grams). This bio-mimetic design allows RSA to adapt to different surface geometries while generating powerful, controlled motion.

Image of Myosin Mechanism vs. RSA Protrusion Generated via Nano Banana

Pneumatic Chambers: Power Source for RSA

Researchers have explored various energy sources for thin, flexible actuators. Piezoelectric systems use voltage to create deformation in piezoelectric materials, causing them to expand or contract.

Image of Piezoelectric Actuator from Power Electronics Tips

Electrostatic actuators rely on electrical forces between two flexible polymer films that touch each other, creating relative motion when voltage is applied. Thermo-responsive hydrogels change shape with temperature fluctuations, expanding or contracting as they heat and cool.

But all these methods struggle to generate substantial force, making them impractical for everyday applications.

Terminology

Piezoelectric: Materials that generate mechanical deformation when an electric voltage is applied, commonly used in precision actuators but limited in force generation.

RSA takes a different approach: pneumatics. Air pressure naturally expands in all directions without inherent directionality. The innovation lies in RSA’s internal chamber network structure, which converts this non-directional pressure into precise, directional mechanical motion.

Terminology

Pneumatics: Using compressed air or gas to create mechanical motion, offering high power-to-weight ratios and safe operation.

The chambers operate at 30–60 kPa , pressures high enough to generate real force while remaining safe and controllable through thin fluid lines (flexible tubes with a combined diameter of less than 3 mm that deliver compressed air from an external pump to the actuator).

Image of Internal Pneumatic Network & Flow Generated via Nano Banana

Structure of RSA: Engineering Meets Biology

Part A: The Protrusion System

RSA’s surface features a pattern of 12 protrusions arranged in four columns and three rows. They’re carefully engineered structures divided into two perpendicular groups to enable multi-directional movement.

Terminology

Protrusions: Raised structures on the RSA surface that make contact with objects to generate controlled lateral motion through push-and-return cycles.

When activated, one group of protrusions generates myosin-mimicking lateral motion parallel to the surface, while the other group moves perpendicular to provide support to the actuator itself, preventing it from losing contact with the surface. This dual-action system operates through distinct phases:

• Push Phase: Half the protrusions make contact with the target object (such as a camera, tool, or item being manipulated) and push it along the surface
• Return Phase: The other half maintains contact with the surface to support the RSA body, preventing it from detaching, while the first group lifts and resets to its starting position

This alternating contact pattern mimics how myosin maintains continuous grip on actin filaments while generating continuous forward motion for muscle contraction or cellular transport.

Part B: The Multilayer Architecture

In RSA, each protrusion is driven by two thin pneumatic chambers that overlap at different depths within the 1.5 mm thick body. Think of it like stacking transparent sheets, each chamber exists on a separate layer level, and they overlap by approximately 50%.

Traditional pneumatic chambers are thick cavities that expand uniformly. RSA uses thin, square chambers that deform primarily perpendicular to their plane. When two such chambers overlap and inflate in sequence, their combined deformation creates the diamond-shaped trajectory essential for myosin-mimicking motion.

Terminology

Diamond-shaped Trajectory: A four-vertex movement pattern where the protrusion tip moves in a diamond path, enabling the push-and-return motion that mimics myosin’s biological mechanism.

Hose: Flexible tubes that deliver compressed air from an external pump to the actuator. RSA uses thin fluid lines with a combined diameter of less than 3 mm.

The actuator contains 24 chambers total, organized into six groups connected by an embedded multichannel pneumatic circuit. This three-dimensional network distributes pressure through via holes, small drilled passages (1 mm diameter) that connect pneumatic circuits at different layer levels, similar to vertical connections in electronic circuit boards. This design minimizes external hoses and maintains the actuator’s flexibility.

Image of Exploded Multilayer Architecture of RSA Generated via Nano Banana

Real-World Applications

In-Pipe Inspection: RSA’s 3 mm profile allows it to slip between a 33 mm camera and 39 mm pipe wall, moving the camera forward, backward, and rotationally to inspect and remove obstacles while carrying a camera 23 times heavier than itself.

Surgical Tool Enhancement: RSA’s thin, flexible form factor enables it to attach to the surface of surgical instruments inserted into the body. By providing controlled lateral motion on demand, RSA could enhance minimally invasive surgical tools with the ability to manipulate tissue, navigate confined anatomical spaces, or assist in precise cutting operations

Image Generated via Nano Banana

Underwater Operations: Operating at pressures exceeding normal water pressure, RSA functions underwater, moving objects like golf balls while submerged.

The actuator’s myosin-mimicking mechanism requires only small motion areas, allowing it to generate movement even when bent around cylindrical objects or inserted into confined spaces.

Conclusion: A New Paradigm for Robotics

RSA represents more than an incremental improvement, it’s a fundamental rethinking of how we build actuators. By combining bio-mimicry with pneumatic power and multilayer fabrication, it achieves what seemed impossible: a thin, flexible sheet that generates multi-directional force comparable to bulky traditional systems.

One-liner: With a payload-to-self-weight ratio of 7,700% and six independent movement directions, RSA proves that soft doesn’t mean weak.

The implications extend far beyond current demonstrations. As fabrication techniques advance and pneumatic systems miniaturize, we could see RSA-inspired skins on everything from surgical instruments to space exploration equipment.

Evaluate Yourself

1. Question: What biological mechanism does RSA mimic, and why is this advantageous?
2. Question: Why do pneumatic systems outperform piezoelectric and electrostatic actuators for thin, flexible robots?
3. Question: Explain the significance of the 50% chamber overlap and diamond-shaped trajectory.
4. Question: How does RSA maintain object contact during lateral movement while still generating continuous motion?
5. Question: What makes RSA suitable for confined space applications like pipe inspection?
