Shifting the Power Grid: How Imec’s A14 PDK and Direct Backside Contacts Redefine Physical Design

Moving from TSV-Middle to Direct Backside Contacts — The Next Evolutionary Leap in PPA and Floorplanning Optimization.

We’ve all heard it for decades: The end of Moore’s Law is near. While traditional monolithic scaling slows under the weight of physical limitations and ballooning fabrication costs, the global semiconductor market is navigating a high-stakes paradox — surging toward massive revenue peaks driven entirely by AI data center demands.

As standard geometric scaling delivers diminishing returns, the primary lever for semiconductor performance has aggressively displaced toward advanced packaging and layout co-optimization. We have broken down the macro-realities of 3D chiplet stacking and early Backside Power Delivery Networks (BSPDN).

But this month, the path toward the sub-2nm frontier achieved an extraordinary milestone. Imec’s NanoIC pilot line officially released its pathfinding 14-Angstrom (A14) Process Design Kit (PDK).

Supported directly by industry-standard EDA environments from Cadence and Synopsys, this release gives physical design engineers a virtual environment to explore the next major breakthrough in device miniaturization. And at the heart of this node lies a radical new scaling booster: Direct Backside Contacts.

The Evolution: From TSV-Middle to Direct Backside Contacts

In early iterations of Backside Power Delivery (such as those mapped out for 2nm/N2 platforms), power is routed from the reverse side of the wafer using Through-Silicon Via-Middle (TSVM) structures. While TSVM successfully decouples the massive power distribution network (PDN) from the crowded front-side signal layers, it still consumes a non-trivial amount of active silicon area, creating localized layout blockages.

The A14 pathfinding architecture executes a major structural upgrade by replacing TSVM with a highly compact Direct Backside Contact scheme.

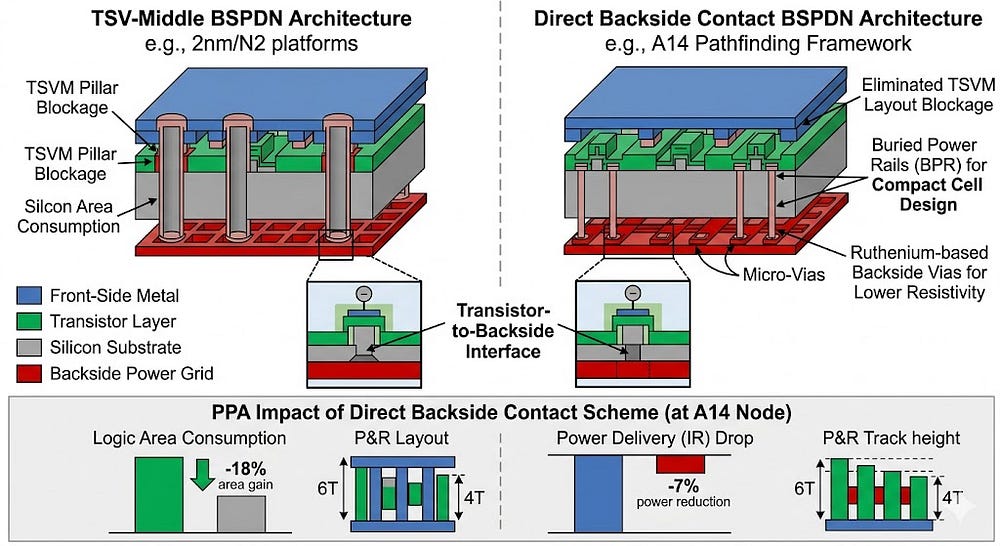

BSPDN Structural Shift: N2 vs. A14 Node Architecture
┌──────────────────────────────────────┐     ┌──────────────────────────────────────┐
│  Front-Side Signal Metal Layers      │     │  Front-Side Signal Metal Layers      │
├──────────────────────────────────────┤     ├──────────────────────────────────────┤
│  Transistor Layer (GAA Nanosheets)   │     │  Transistor Layer (GAA Nanosheets)   │
├──────────────────────────────────────┤     ├──────────────────────────────────────┤
│  TSV-Middle (TSVM) Power Pillars     │     │  Direct Backside Contact (No TSVM)   │
├──────────────────────────────────────┤     ├──────────────────────────────────────┤
│  Backside Power Delivery Network     │     │  Backside Power Delivery Network     │
└──────────────────────────────────────┘     └──────────────────────────────────────┘
      (N2 Architecture Blueprint)                 (A14 Pathfinding Framework)

By connecting the backside power distribution lines directly to the transistor source and drain terminals, the design completely eliminates the need for complex, top-side power routing tracks. This structural inversion delivers an immediate, quantifiable Power, Performance, and Area (PPA) windfall:

• 18% Area Gain: Stripping out the internal TSVM footprint allows standard cell heights to shrink aggressively, yielding significant routing area savings at identical cell densities.
• 7% Power Reduction: Eliminating the resistance of intermediary front-side power grids drastically minimizes voltage ($IR$) drop, optimizing power efficiency at iso-frequency.

Physical Design Implications: Re-Engineering the Standard Cell

For backend VLSI and physical design engineers, a transition to a direct backside contact PDK completely rewrites the Place-and-Route (P&R) playbook.

• Standard Cell Height Reduction (The 4T Target): The transition to Buried Power Rails (BPR) on the backside allows standard cell design library engineers to aggressively target cell heights from the standard 6T down to 4T. This is the key scaling booster at A14.
• Tracking Relief and Dynamic Pin Access: As front-side power/ground rails vanish, standard cells gain maximum routing efficiency on M1/M2 for signal pins, effectively dissolving historical pin access (DRC) bottlenecks and improving cell pin density.
• Electro-Thermal Power Signoff: Shifting power directly to the gate terminals effectively eliminates top-side $IR$ drop but intensely localized thermal density. Advanced thermally aware EDA tools must co-simulate dynamic $IR$ drop and dynamic thermal maps from the earliest stage of floorplanning.
• STA Signoff and Multi-Layer Extraction: Closing timing requires a paradigm shift. Automated EDA environments must process the asymmetric parasitic RC models of ruthenium-based backside vias combined with traditional copper on the front side to accurately calculate timing slack.

Grounding the Innovation: The Local Infrastructure Pipeline

The true value of virtual design rules is measured by our capacity to print them in physical hardware. For engineers watching the domestic landscape, the alignment between advanced pathfinding design and localized assembly infrastructure is hardening rapidly.

Under the ongoing expansion of the India Semiconductor Mission, the regional manufacturing framework is moving fast to support advanced multi-die and angstrom-scale architectures. Tata Electronics’ multi-billion dollar commercial 300mm Fab in Dholera, Gujarat — fortified by its comprehensive lithography partnership with ASML — is anchoring the front-end capability required to process next-generation wafers.

Concurrently, high-capacity OSAT ecosystems like the Kaynes Semicon and Micron complexes in Sanand are scaling up validation capabilities. This ensures that when advanced layouts utilizing direct backside contacts eventually transition from the EDA tool to the tape-out floor, the local supply chain is fully prepared to handle the strict overlay, bonding, and thermal management metrics required for high-yield deployment.

Conclusion

The A14 node proves that the future of semiconductor performance is no longer a simple race to print narrower gates. The crown belongs to architectural configurations that restructure the 3D topology of power and signal.

As direct backside contacts eliminate front-side congestion and reclaim critical standard cell area, physical design engineers are stepping into an era where layout strategy dictates performance far more than atomic limits alone. To build for tomorrow, we must learn to master the backside of the wafer.
