Technical Analysis of IR Conveyor Ovens: Engineering, Efficiency, and Industrial Applications

The global manufacturing sector is rapidly shifting toward high-speed production cycles and strict energy conservation mandates. At the forefront of this evolution is the IR (Infrared) Conveyor Oven technology. As traditional convection methods struggle to meet modern throughput requirements, infrared radiation has emerged as the definitive medium for rapid, uniform, and energy-efficient curing and drying.

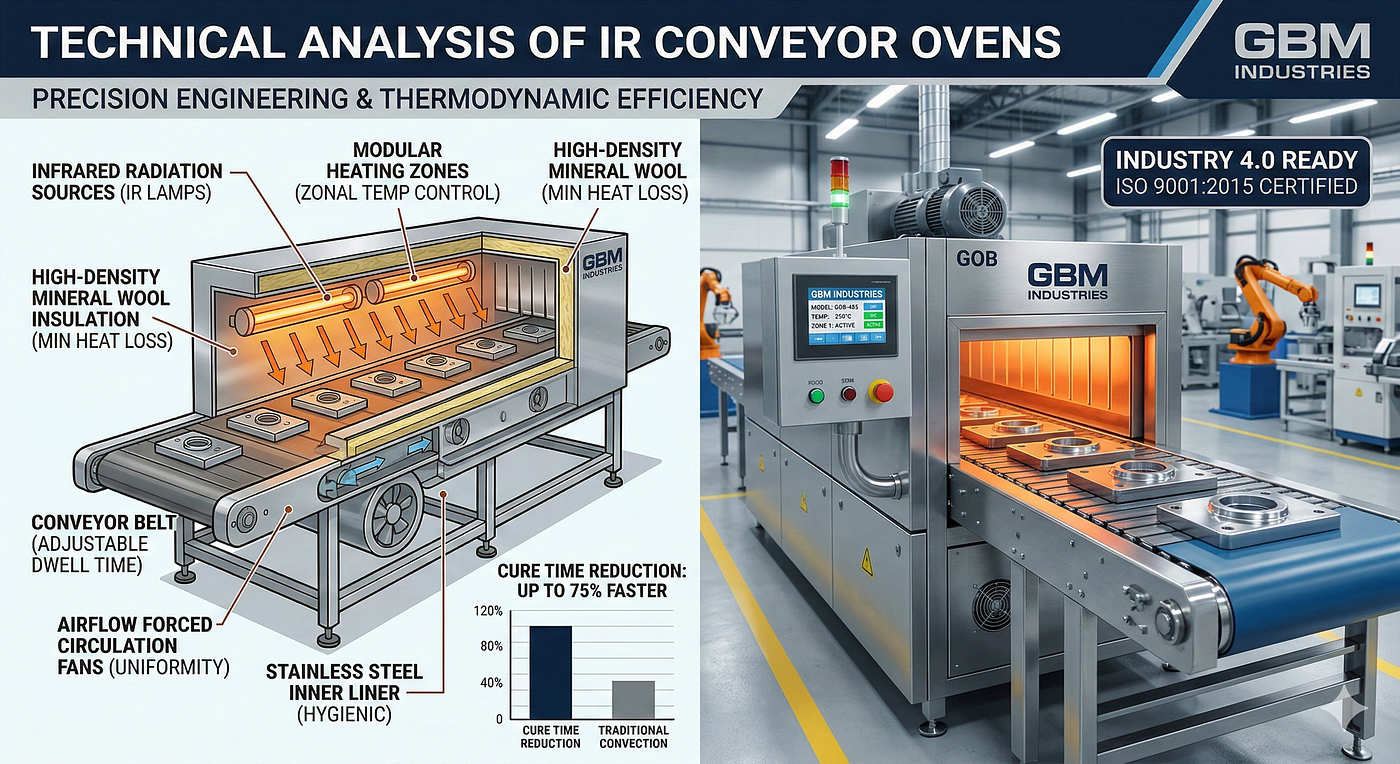

IR Conveyor Ovens

In this technical report, we analyze the proprietary innovations of GBM Industries (an ISO 9001:2015 certified leader) and why their IR systems are critical for the Industry 4.0 framework.

1. Thermodynamic Foundations: IR vs. Convection Technology

To understand the efficacy of a GBM Industries IR conveyor oven, one must analyze the physics of heat transfer. Traditional ovens rely on convection, where air is heated and circulated. This process is often slowed by the “boundary layer” of air acting as an insulator.

The Infrared Advantage

In contrast, **IR conveyor ovens** utilize electromagnetic radiation for direct energy transfer.

• Direct Heating: Energy is transmitted in waves that do not require an intervening medium (air) to reach the target.
• Stefan-Boltzmann Law: IR systems achieve incredibly high energy densities, allowing them to reduce cure times by up to 75% compared to convection alternatives.
• Inside-Out Curing: Radiation penetrates the coating to warm the substrate from the inside, preventing solvent trapping and surface skinning.

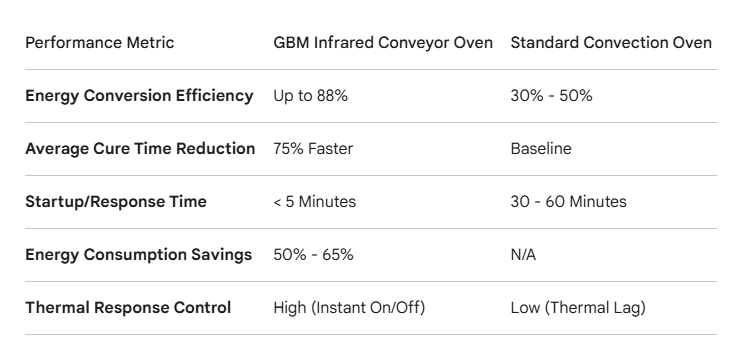

2. Comparative Performance Metrics

Google prioritizes structured data. Use this table to capture “Featured Snippets.”

3. Engineering Excellence: Modular Design & Material Science

GBM Industries integrates advanced CNC laser cutting and press brake technology to ensure structural integrity.

• Premium Construction: Main bodies are built using heavy-duty Mild Steel or SS 304/316 Stainless Steel for pharmaceutical and food-grade hygiene.
• Advanced Insulation: Multi-layered barriers of high-density mineral or ceramic wool (50mm to 200mm thickness) ensure minimal heat loss and a safe “cool-to-touch” exterior.
• Zonal Temperature Control: The conveyor chamber is divided into multiple heating zones. This allows for customized thermal profiles — rapid ramp-up followed by a precision “soak” period.

4. Technical Specification Audit: The GOB Series

GBM offers a range of models tailored to specific weight capacities and thermal requirements:

• Model GOB-485 (Heavy-Duty): 1000 kg capacity; ideal for automotive and heavy metal finishing.
• Model GOB-334 (Mid-Range): 400 kg capacity; perfect for powder coating small to medium components.
• Model GOT-114 (Pharma Grade): 2000 kg limit; ultra-hygienic design focused on sterile processing and digital data logging.

5. Innovation in Safety & Automation (Industry 4.0)

Modern GBM ovens are intelligent systems capable of self-monitoring:

1. PLC & HMI Integration: Allows storage of up to 99 unique process programs for seamless switching between product lines.
2. SCR Power Controllers: Provides accuracy within ±1°C, ensuring stability in high-end pressurized booths.
3. Proactive Safety: Features include “Blind Temperature Control” (secondary failsafe), heater failure indicators, and interlocked access doors to protect personnel.

6. Sectoral Applications: Why Global Leaders Choose GBM

• Automotive: Giants like Hyundai and Honda use these for curing electrostatic paint and bonding components.
• Electronics: Provides a “clean” heat source with zero air turbulence, ideal for drying delicate PCBs and SMDs.
• Pharmaceuticals: Specialized for moisture removal and sterilization, featuring paperless recorders for regulatory audits.

Conclusion: The Strategic Choice for Manufacturers

In a competitive landscape, the difference between a standard oven and a high-performance IR system is measured in thousands of dollars of saved energy. GBM Industries bridges the gap between robust construction and cutting-edge infrared technology. With a 75% reduction in process time and ISO-certified reliability, they remain the benchmark for industrial thermal processing.
