Ground Effects — From Racing to Everyday Drive

Credits: Fifth Gear — Williams F1 vs BMW M5 #TBT

In modern racing, engine power is not only the dependent factor for overall speed. Aerodynamics play a huge part as well! The optimisation of air flow is not just limited to sides and the top, but to the floor as well. This optimisation of air flow under the car floor is known as Ground Effects. These Ground Effects helps generate a downforce underneath a car, making it go faster with good control and stability.

Fortunately, the concept of Ground Effects has also trickled down to normal road vehicles to improve speed along with overall stability and fuel efficiency.

Ground Effects in Racing

As discussed earlier why Ground Effects are used in Racing cars, that is to generate Downforce . What is Downforce? Downforce is the force that pushes the car onto the road, increasing stability and traction. This is important for race cars as they have to maintain high speeds throughout corners and straights.

1. Diffusers and Splitters —Race cars have a rear diffuser and a front splitter. The diffuser controls the air flow under the car. It creates more downforce by reducing air pressure. The splitter directs air above and below the car, making the overall aerodynamics efficient.

Credits: Diffusers — Efficient Aerodynamics — Explained, Engineering Explained

Front Splitter. Credits: https://www.pinterest.com/pin/racecar-ideas--451978512578150166/

2. Vortex Generators — These are small fins that creat tiny air spirals called vortices that help manage airflow, reducing drag and increasing downforce. We can see them on the rear wing and the side of race cars.

Small fins, known as Vortex Generators. Credits: https://www.professionalawesome.com/product/

3. Ground Effect Tunnels — These are mostly seen in Formula 1 cars. These are tunnels which create a low pressure zone pulling the car downward to the track.

Ground Effect tunnels on the floor of an F1 car. Credits: The Race

4. Active Aerodynamics — These are adjustable wings and flaps. They move according to the driver input or speed. They too help optimize downforce and reduce drag.

Active Aero on the rear spoiler/wing. Credits: https://autos.yahoo.com/heres-2025-ford-mustang-gtds

Now, you might have heard the word “Drag” a lot in my previous points. So, what exactly is Drag and why does it matter? Drag is the resistance a vehicle encounters as it moves through air. This aerodynamic force acts in the opposite direction of the vehicle’s motion.

There are 2 types of Drag:

1. Pressure Drag — This happens due to the shape of the car and the pressure differences around it. During motion, a high pressure builds up at the front and a low pressure at the rear, creating resistance.

Pressure Drag. Credits: https://grassrootsmotorsports.com/articles/wing-it-simple-talk-complex-subject-aerodynamics/

2. Skin Friction — This is the friction between the car’s surface and the air. The smoother the car surface, the lesser the skin friction.

Skin Friction. Credits: https://www.researchgate.net/figure/a-Instantaneous-skin-friction-for-the-DrivAer-car-model-at-ReL-156-10-6-simulated_fig5_341448954

Why does Drag matter?

If we look at the superficial level, drag matters for the following reasons:

• Fuel Efficiency: Higher drag forces require more energy to overcome, which means the engine has to work harder, consuming more fuel. Reducing drag can significantly improve a car’s fuel efficiency.

Credits: Top Gear Phillipines

• Performance: In high-performance cars, reducing drag is crucial for achieving higher speeds. Less drag means the car can accelerate faster and maintain higher speeds with less effort.

Credits: Fox 59

• Handling and Stability: Aerodynamic drag affects a car’s handling and stability. Proper aerodynamic design helps maintain stability at high speeds and reduces the likelihood of lift, which can make the car feel lighter and less stable.

Credits: Fifth Gear, Driving without Electronic Stability Control

• Environmental Impact: Lower drag results in better fuel efficiency, which reduces the overall carbon emissions of a vehicle. This is increasingly important as manufacturers strive to meet stricter environmental regulations and consumers become more eco-conscious.

Credits: Culminate Consulting

• Noise Reduction: Aerodynamic drag can also contribute to wind noise inside the car. Reducing drag can lead to a quieter and more comfortable ride.

Credits: Acoustic Fields

Ground Effects in Normal Cars

While normal cars don’t need those levels of downforce as of race cars, but still it can benefit from these ground effect tricks.

1. Underbody Panels — These smooth panels under the body of a car helps reduce drag and turbulence. They help improve fuel efficiency and stability at higher speeds.

Underbody Panels. Credits: MotorBiscuit

2. Front Air Dams and Splitters — Some cars have front air dams or splitters to reduce lift and direct airflow more efficiently, which helps with handling and fuel economy.

Credits: EZ Lip

3. Rear Spoilers and Diffusers — Even though they’re less aggressive than those on race cars, rear spoilers and diffusers on road cars help manage airflow and reduce lift, which improves stability, especially on the highway.

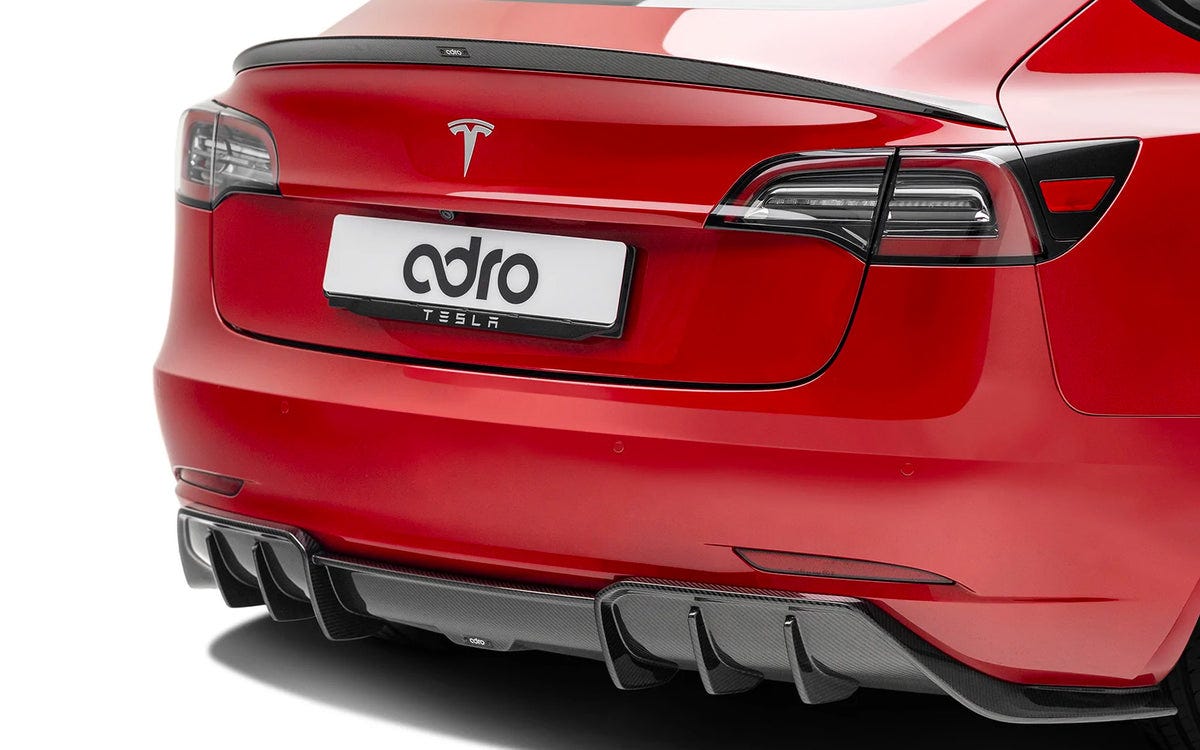

Rear Spoiler and diffuser. Credits: European Auto Source

4. Side Skirts—Side skirts help smooth out the airflow along the sides of the car, reducing drag and making the car more aerodynamic.

Side Skirts. Credits: Youtube, Number NYC

Benefits of Ground Effects

• Improved Stability: Ground effects help keep the car planted on the road, reducing the risk of losing control, especially at high speeds and during sharp turns.
• Better Traction: More downforce means better grip, allowing for more effective acceleration, braking, and cornering.
• Enhanced Fuel Efficiency: For everyday cars, better aerodynamics can lead to significant fuel savings, making ground effects not just about performance but also about efficiency.
• Safety: Better stability and control translate to safer driving, reducing the risk of accidents due to loss of control.

Conclusion

Ground effects are a fascinating blend of science and engineering that dramatically enhance a vehicle’s performance and safety. While they’re most famous in the racing world, these aerodynamic principles are also quietly making your everyday drive smoother and more efficient. Whether you’re a speed enthusiast or just appreciate a safe, comfortable ride, the impact of ground effects on car design is worth noting.
