Intelligent Training Job Orchestration: How HyperPod Bridges the Gap Between Hardware Failures and Training Recovery

Abstract: When a GPU node fails during large-scale distributed training, detecting the failure is only the first step. The training job — potentially spanning hundreds or thousands of processes across many nodes — must sense the topology change, coordinate a restart, reassign ranks, and resume training with minimal interruption. Existing tools address pieces of this problem: Kubernetes manages pod lifecycles, PyTorch Elastic handles worker restarts, and GPU monitoring tools detect hardware faults. But no single open-source system integrates all three layers into a coherent recovery pipeline. This article examines the training job orchestration problem in detail, surveys the capabilities and limitations of existing approaches (Kubeflow, PyTorch Elastic, Volcano, and their counterparts at Meta and NVIDIA), and provides a source-code-level analysis of SageMaker HyperPod’s Training Operator and Elastic Agent. The analysis reveals several architectural innovations: operator-controlled rendezvous that replaces distributed consensus with deterministic rank assignment; graduated three-level recovery (in-process → process-level → job-level) with automatic escalation; coordinated shutdown that converts O(NCCL_TIMEOUT) failure response into O(seconds); declarative regex-based anomaly detection requiring zero training code changes; checkpoint discovery that gives the orchestrator visibility into training state; and a reverse communication channel (rank_labels) that feeds parallelism topology back to the scheduler for topology-aware recovery.

1. The Orchestration Gap

1.1 From Detection to Recovery: An Unsolved Pipeline

Modern GPU clusters have increasingly sophisticated infrastructure for detecting hardware failures and automatically replacing faulty nodes — from DCGM-based GPU diagnostics to managed health monitoring agents that handle the full detect-diagnose-replace cycle. But this infrastructure-level automation, however capable, addresses only the first layer of the resilience problem. It solves for hardware; the training job is a separate concern. Once a new node is provisioned and passes health checks, a sequence of orchestration challenges remains:

1. Failure propagation: In synchronous distributed training, a single node failure causes NCCL collective operations to hang on all remaining nodes. These hangs must be detected and cleared before recovery can begin.
2. Rank reassignment: The failed node held specific global ranks. These ranks must be reassigned to the replacement node, and all surviving nodes must be informed of the new topology.
3. Process restart granularity: Must the entire job restart (hundreds of pods killed and recreated), or can recovery be surgical — restarting only the affected processes?
4. Communication re-initialization: PyTorch’s init_process_group must re-execute with the new topology. At large scale, the standard centralized TCPStore rendezvous can itself become a bottleneck.
5. State recovery coordination: Workers must load checkpoints and synchronize to the same training step before resuming. This requires coordination between the orchestration layer and the training framework.

Each of these challenges is addressed by different tools in the current ecosystem, but no single system handles the complete pipeline. This article examines how these challenges are addressed — first by surveying existing approaches, then by analyzing HyperPod’s integrated solution.

1.2 The Layered Architecture of Distributed Training

To understand why this integration is difficult, it is useful to consider the layers involved in running a distributed training job on Kubernetes:

Layer 4: Training Framework (PyTorch, NeMo, Megatron-Core) ↕ process management Layer 3: Process Launcher (torchrun / Elastic Agent) ↕ pod lifecycle Layer 2: Job Orchestrator (Training Operator / Kubeflow) ↕ node scheduling Layer 1: Infrastructure (K8s scheduler, GPU health monitoring)

A GPU hardware failure occurs at Layer 1. The health monitoring system detects it and replaces the node. But the training job lives at Layer 4. For recovery to succeed, the failure signal must propagate upward through every layer, each layer must take appropriate action, and the actions must be coordinated across layers. In the current open-source ecosystem, these layers are developed independently and communicate through narrow interfaces — primarily Kubernetes pod status and environment variables.

2. Current Landscape: Job Orchestration Tools and Their Limitations

2.1 Kubeflow Training Operator

The Kubeflow Training Operator [1] is the most widely adopted Kubernetes-native solution for managing distributed training jobs. It defines the PyTorchJob CRD (Custom Resource Definition), which specifies replica counts, resource requirements, and restart policies. The operator creates and manages pods for each worker, injecting environment variables ( MASTER_ADDR, MASTER_PORT, WORLD_SIZE, RANK) that PyTorch's distributed runtime requires.

Fault handling capabilities:

• BackoffLimit controls the number of retry attempts before marking a job as failed
• CleanPodPolicy governs pod cleanup after completion
• Optional ElasticPolicy enables torchrun-based elastic training with configurable rendezvous backends

Structural limitations: The Kubeflow operator has no visibility into what happens inside a running pod. It can detect that a pod has crashed (via Kubernetes pod status), but cannot detect:

• A GPU that is degraded but has not caused a process crash
• An NCCL collective that is hanging due to a remote node failure
• A training loop that has stalled due to a data pipeline issue
• A loss spike indicating divergent training

When the operator does detect a pod failure, recovery is coarse-grained: the entire job typically restarts because all workers must participate in init_process_group simultaneously. Even with ElasticPolicy enabled, the re-rendezvous covers the full participating worker set rather than a single failed worker - a single GPU fault still forces its entire local worker group to restart.

The recently released Kubeflow Trainer v2 [2] introduced a unified TrainJob CRD built on Kubernetes JobSet, with richer failure policies. However, it retains the same fundamental limitation: recovery means recreating the entire JobSet, and there is no integration with GPU health monitoring.

2.2 PyTorch Elastic Agent (torchrun)

PyTorch Elastic [3] provides the process-level fault tolerance that the Kubeflow operator lacks. The LocalElasticAgent runs on each node and manages worker processes as subprocesses. Its core loop:

1. Perform rendezvous (rank assignment via distributed store)
2. Start workers with assigned ranks
3. Monitor worker processes in a polling loop
4. On failure: re-rendezvous, restart all local workers

The rendezvous mechanism (C10d or etcd backend) provides distributed consensus on the current set of participating nodes. When a node fails, surviving nodes detect the failure through rendezvous timeouts, form a new group, and restart.

Key limitations in production environments:

Per-node scope: Each elastic agent instance manages only its local workers. There is no global view of the training job — agents on different nodes coordinate only through the rendezvous store. This means there is no centralized point that can make job-wide decisions about restart strategy or fault diagnosis.

No GPU health integration: The elastic agent monitors process exit codes but has no access to DCGM metrics, XID errors, ECC status, or NVLink health. A GPU can be silently degraded — producing incorrect results (silent data corruption, SDC) or running at reduced speed — without triggering any detection.

Centralized rendezvous bottleneck: The C10d rendezvous backend uses a single node as the coordination point. At the scale of hundreds of nodes, re-rendezvous after a failure involves all nodes simultaneously connecting to this single point, creating a network bottleneck that extends recovery time.

Coarse-grained restart: When the elastic agent detects a worker failure, it restarts all workers on the node — even if only one GPU is affected. On an 8-GPU node (e.g., p5.48xlarge), a single GPU failure triggers 8 worker restarts.

2.3 Gang Scheduling: Volcano and Kueue

Gang scheduling — the requirement that all pods of a distributed job be scheduled simultaneously — is addressed by Volcano [4] and Kueue [5]. Volcano’s PodGroup ensures "all or nothing" scheduling via minAvailable, preventing deadlocks where some pods are scheduled but the job cannot start because others are pending.

These schedulers handle the start of training jobs well, but their fault handling is limited. Volcano’s lifecycle policies map failure events to actions (e.g., PodEvicted → RestartJob), but the restart granularity is job-level - all tasks restart. Neither Volcano nor Kueue has visibility into GPU health or training progress.

2.4 The Integration Gap

Each tool above knows its own layer well but is blind to the others. Volcano and Kueue see resource availability and queue priority but not GPU health or training progress. The Kubeflow operator sees pod lifecycle and restart counts but not worker process state or NCCL health. The torchrun elastic agent sees worker exit codes and rendezvous state but has no view of the GPU hardware or the broader K8s node state. DCGM and HMA see hardware faults and ECC errors but know nothing about the training jobs depending on them.

No existing open-source system provides the complete pipeline: detect GPU failure → identify affected ranks → coordinate cross-node restart → reassign ranks → resume training — all without requiring manual intervention or full job restart.

3. HyperPod Training Operator: Architecture

The HyperPod Training Operator [6] addresses the integration gap by providing a vertically integrated orchestration system that spans from GPU health signals to training process management. It introduces a custom CRD ( HyperPodPyTorchJob), a job controller with health-aware scheduling, and a custom elastic agent that replaces PyTorch's rendezvous mechanism with operator-controlled rank assignment. AWS reports up to a 40% reduction in end-to-end model training time attributable to these resilience mechanisms on large-scale workloads [8].

3.1 System Components

The system consists of five components that operate across the orchestration layers. The official AWS architecture diagram (Figure 1) summarises how they interact; the subsequent Mermaid diagram zooms into the agent-internal composition examined later in §4-§7.

Figure 1: SageMaker HyperPod Training Operator architecture. Top: the Job Controller reconciles HyperPodPyTorchJob resources and ingests health signals from an External Node Monitor (EC2 events, HMA); Pod Managers fan out to each training pod to start/stop training and monitor process health. Bottom: the HyperPod Elastic Agent inside each pod watches its local rank processes for crashes and hangs via log tailing, feeding results back to the operator. Source: [8].

Job Controller: Deployed as a Kubernetes controller in the aws-hyperpod namespace. Watches HyperPodPyTorchJob resources and reconciles them by creating job pods and pod manager pods. It integrates three fault detection sources: the Health Monitoring Agent (HMA) from the infrastructure layer, AWS EC2 retirement notices, and the elastic agent's status reports.

Pod Manager: An intermediate control plane component. Each pod manager oversees several hundred pods, polling their elastic agent APIs to aggregate health status and coordinate recovery decisions. This fan-out design prevents the job controller from directly managing thousands of agent connections.

HyperPod Elastic Agent: The on-host runtime component, installed in every training container. It extends PyTorch’s LocalElasticAgent with a custom rendezvous backend, a FastAPI-based command server, a regex-based log monitoring system, and an IPC mechanism for communicating with training worker processes.

3.2 Job Specification: HyperPodPyTorchJob CRD

The HyperPodPyTorchJob CRD (API group: sagemaker.amazonaws.com/v1) extends the Kubeflow model with several capabilities specific to resilient training [6]:

The runPolicy introduces a two-tier restart model: process-level restarts are attempted first (up to jobMaxRetryCount times), with escalation to full job-level restart after numRestartBeforeFullJobRestart process restarts within evalPeriodSeconds. This graduated approach ensures that transient failures are handled quickly (process restart in seconds) while persistent failures eventually trigger a full job restart. The maxFullJobRestarts parameter bounds the total number of job-level restarts before the job is marked as failed.

The spares field reserves additional nodes that remain idle but ready for immediate failover. When a worker node fails, the job can migrate to a spare without waiting for new instance provisioning. This requires Kueue integration for resource management.

4. Operator-Controlled Rendezvous: Replacing Distributed Consensus

4.1 The Problem with Standard Rendezvous

In vanilla PyTorch Elastic, rank assignment occurs through distributed consensus. When workers start (or restart), they participate in a rendezvous protocol — typically backed by a C10d TCPStore on the rank-0 node. Each worker registers itself, and the rendezvous handler assigns ranks by sorting registered participants.

This design has several properties that become problematic at scale:

1. The rank-0 node is a single point of coordination: All other nodes connect to it during rendezvous. If rank-0 itself fails, rendezvous cannot complete until a new rank-0 is elected.
2. Re-rendezvous is a global barrier: After a failure, all surviving nodes must participate in re-rendezvous before any can resume training. At 500+ nodes, this synchronization can take minutes.
3. Ranks may change across restarts: Since ranks are assigned by sorting participant node descriptors, a node replacement can shuffle rank assignments. Checkpoint loading must account for this.
4. No centralized intelligence: The rendezvous handler has no visibility into why a node failed or whether the replacement is healthy. It merely counts participants.

4.2 HyperPod’s Approach: Operator as Rendezvous Authority

The HyperPod Elastic Agent replaces PyTorch’s distributed rendezvous with a custom HyperPodRendezvousBackend [7] that delegates rank assignment to the Training Operator:

The HyperPodStore is a minimal implementation of torch.distributed.Store that returns pre-computed values provided by the operator. Its get() method returns the rank assignment; set() and other methods are no-ops. This design eliminates worker-to-worker coordination during startup and recovery, because the operator has already determined the topology.

The rank assignment flow:

1. Operator determines the desired topology (which nodes, which ranks)
2. Operator calls /start on each agent with: rank, nnodes, master_addr, master_port, rankIps
3. Agent calls set_rdzv_info() to store the assignment
4. Agent writes pod_resourceconfig.json with the IP table (atomically via rename)
5. next_rendezvous() returns the pre-computed assignment - no distributed consensus needed

This design represents a paradigm shift from peer consensus to control plane assignment. In every existing open-source distributed training system — PyTorch Elastic, Horovod, DeepSpeed, MPI-based launchers — rank assignment emerges from worker-to-worker coordination: nodes register with a shared store (TCPStore, etcd, or MPI rank assignment), and ranks are derived from the set of participants. The operator-controlled model inverts this relationship entirely: the control plane determines the topology before workers start, and workers receive their assignments as input rather than computing them collectively.

This inversion is absent from other open-source training frameworks. The closest analogy is Kubernetes itself — where the scheduler assigns pods to nodes rather than pods negotiating placement — but applied here to the distributed training rank assignment problem specifically.

This architectural choice has several concrete implications. Recovery is faster because agents no longer wait on a global rendezvous barrier: the operator pushes the new topology to each agent individually, and each begins immediately upon receiving its assignment. Rank assignment is also deterministic, which lets the operator preserve topology across restarts and make topology-aware placement decisions — critical for pipeline-parallel training, where physical proximity between pipeline stages affects all-reduce performance. Fault information flows downward through the same channel: the operator has visibility into HMA health signals, node status, and historical fault records, and uses those to avoid nodes with repeated faults or place a replacement node adjacent to its pipeline stage peers. Finally, the operator maintains a single authoritative, versioned topology (tracked by ip_version), eliminating the ambiguity about which topology is "current" that plagues distributed consensus approaches during partial failures.

For In-Process Restart scenarios (Section 5.2), the operator can update rank assignments without restarting workers. The /update API sends incremental changes - only the ranks that have changed - rather than a full topology:

The ip_version field acts as an optimistic concurrency control token. The operator includes it in updates, and the agent reports it in /status responses, allowing the operator to detect whether an agent has received the latest topology.

5. Two Recovery Modes: PLR and IPR

The HyperPod Elastic Agent implements two distinct recovery strategies, selectable at launch time via the --inprocess-restart flag [7].

5.1 Process-Level Restart (PLR)

In PLR mode, recovery follows a stop-and-restart pattern analogous to traditional approaches, but with two critical differences: restart granularity is per-process rather than per-job, and rank assignment is operator-controlled rather than consensus-based.

The PLR agent’s main loop:

A key design detail: the agent does not immediately start workers upon initialization. It transitions to READY and waits for the operator to call /start with the rank assignment. This ensures the operator has full control over when and how workers are started, enabling coordinated recovery across the entire job.

The PLR recovery sequence:

Worker crash or log anomaly detected → Agent sets state to FAULTED (with reason and message) → Operator polls /status, sees FAULTED → Operator sends /stop to all agents → Agents kill worker processes, reset to READY → Operator determines new topology (potentially with replacement node) → Operator sends /start to all agents with new rank assignments → Agents start workers with new ranks → Training resumes from checkpoint

5.2 In-Process Restart (IPR)

IPR mode represents a fundamentally different approach: worker processes are not killed during recovery. Instead, they are paused at a synchronization barrier, receive updated rank information via IPC, and resume execution.

The IPR agent starts workers immediately upon initialization and waits for them to reach the RCB (Re-executable Code Block) barrier:

self._ipc_server.get_ranks_at_barrier(

When a fault occurs, IPR pauses workers instead of killing them:

The critical difference from PLR: send_fault() communicates with workers through a Unix domain socket IPC channel, instructing them to return to the RCB barrier. Worker processes remain alive, preserving their GPU memory state, Python interpreter, CUDA contexts, and loaded libraries. When the operator sends /start with updated rank information, the agent pushes the new environment to workers via IPC, and they resume:

self._ipc_server.send_start( worker_envs=worker_envs, self.start_log_monitoring()

Fallback mechanism: If IPR fails — for example, if a worker process crashes rather than returning to the barrier, or if the barrier timeout expires — the agent automatically falls back to PLR:

Workers can also explicitly request escalation by reporting a PROCESS_LEVEL_RESTART or JOB_LEVEL_RESTART restart mode through the IPC channel, giving the training framework control over the recovery strategy.

5.3 State Machine Comparison

The two modes differ in their state transition graphs:

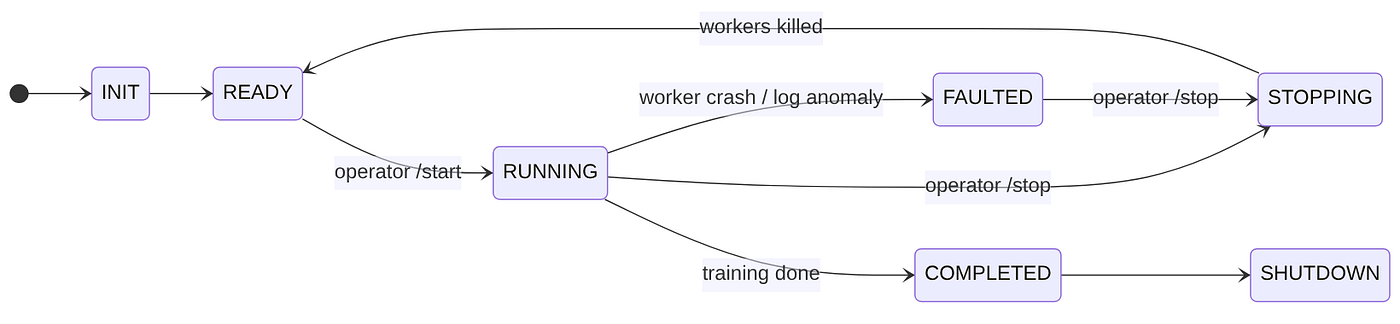

PLR state machine:

IPR state machine (more permissive — supports transitions back to INIT for PLR fallback):

The IPR machine allows transitions from FAULTED, STOPPING, and READY back to INIT, which represents the PLR fallback path - a full process restart when in-process recovery is not possible.

6. Regex-Based Log Monitoring: Detecting Anomalies Without Code Changes

6.1 Design Motivation

Hardware failures that cause immediate process crashes are straightforward to detect via process monitoring. A more insidious class of problems produces no crash but degrades training quality or progress:

• Hung NCCL collectives: A failed remote node causes local collective operations to block indefinitely. The training process is alive but making no progress.
• Loss spikes: A corrupted gradient or data batch causes the loss function to diverge. Training continues but produces garbage.
• Throughput degradation: A slow GPU or degraded network link reduces training speed without triggering errors.
• Silent checkpoint failures: Checkpoint writes fail silently, meaning recovery will lose more progress than expected.

Traditional monitoring tools require instrumenting the training code with health-check callbacks. The HyperPod approach inverts this: the agent monitors training logs externally, using configurable regex rules that require no code changes [6].

6.2 LogEvaluator: Rule Engine Implementation

The LogAgent runs a dedicated monitoring thread per local rank, tail-following the training process's stdout log file. Each log line is evaluated against a set of LogEvaluator rules:

The evaluation produces one of four states, with a priority ordering: FAULTED > HANGING > SLOW > HEALTHY. When any rule evaluates to SLOW, HANGING, or FAULTED, the agent's _monitor_workers override sets the worker state to UNHEALTHY, triggering the fault recovery pipeline.

6.3 Practical Rule Examples

The logMonitoringConfiguration section of the HyperPodPyTorchJob spec accepts an array of rule definitions. Several patterns illustrate the range of detectable anomalies:

Job hang detection — detects training loops that stop producing output:

Loss spike detection — catches divergent training via metric extraction:

This rule uses a regex capturing group to extract the loss value, compares it against a threshold (2.0), and marks the job as SLOW only after 5 consecutive violations - preventing spurious restarts from temporary noise. If the loss becomes NaN or inf, the numeric capturing group fails to match and the rule does not fire on its own; a complementary JobHangingDetection rule (below) catches the resulting stall via missing iteration logs.

Throughput monitoring — detects degraded performance:

Immediate fault on error pattern — catches known fatal errors:

The faultOnMatch: true flag bypasses all frequency and threshold logic, triggering immediate fault detection on the first pattern match.

6.4 Design Trade-offs

The regex-based approach has clear trade-offs:

Advantages: No training code modification required. Rules are defined declaratively in YAML and can be updated without rebuilding images. The evaluation overhead is minimal (regex matching on stdout lines at 1-second polling intervals).

Limitations: The approach depends on training scripts emitting structured log output to stdout. Log format changes require corresponding rule updates. More sophisticated anomaly detection (e.g., detecting gradient norm divergence or learning rate schedule anomalies) requires the training script to log the relevant metrics.

This is an explicit design choice: external observability over internal instrumentation. The training script’s only obligation is to log useful metrics to stdout — a practice that is near-universal in production training setups.

6.5 Industry Comparison: Training Anomaly Detection

The log monitoring approach can be placed in context by comparing it with existing mechanisms for detecting training anomalies:

Several distinctions are worth noting. Kubernetes probes provide only binary health signals (alive or dead) and have no concept of training progress, throughput degradation, or metric divergence. Prometheus-based monitoring can track arbitrary metrics but requires explicit instrumentation in the training code and provides alerting without automated recovery — an operator must interpret the alert, diagnose the issue, and manually intervene. NVIDIA NVRx integrates straggler detection more deeply but requires callback hooks in the training loop and is available only within DGX Cloud environments.

Meta’s internal lemon-node detection demonstrates that large-scale training operators recognize the need for training-aware anomaly detection — but it is proprietary, tightly coupled to internal infrastructure, and not available to the broader community.

The HyperPod LogEvaluator occupies a unique position: it is the only system that combines zero-code-change deployment (declarative regex rules in YAML), multi-dimensional detection (hangs, metric thresholds, error patterns), and automatic recovery triggering (directly integrated into the IPR/PLR/JLR escalation pipeline). The trade-off — dependence on structured log output — is mild given that production training scripts almost universally emit training metrics to stdout.

7. Agent-Worker Feedback Channels

7.1 Architecture

The HyperPod Elastic Agent communicates with worker processes through a Unix domain socket IPC channel (/tmp/hyperpod_elastic_agent_<PID>.sock), operating over the shared filesystem within a pod. Two services multiplex on the same socket server:

1. Checkpoint Discovery: Workers report checkpoint progress to the agent, which aggregates completeness information and reports it to the operator via the /status API.
2. In-Process Restart (IPR) coordination: The bidirectional channel for barrier synchronization, fault notification, rank information updates, and start/stop signals.

Messages are framed using a 4-byte big-endian length prefix + JSON payload, enabling reliable message exchange over the stream socket.

7.2 Checkpoint Discovery: Operator-Aware State Tracking

In standard distributed training, checkpoint management is entirely the responsibility of the training framework. The orchestration layer has no visibility into whether a checkpoint was successfully written, how far it progressed, or which is the latest valid checkpoint across all workers. After a failure, recovery typically involves scanning a shared filesystem for the latest checkpoint — a process that is fragile (partial writes may appear valid) and slow (directory listing at scale).

The HyperPod IPC channel introduces a CheckpointDiscoverySocketServer that accepts checkpoint progress reports from workers via a CheckpointTracker. Workers call checkpoint reporting APIs during training, and the agent aggregates the reports. The operator can then query each agent's /status endpoint to determine the globally consistent latest valid checkpoint - without scanning the filesystem and without trusting any single worker's local view.

This design solves a subtle but important problem: in pipeline-parallel training, different pipeline stages may complete checkpoint writes at different times. A naive “latest file on disk” approach may select a checkpoint where some stages are at step N and others are at step N-1, leading to inconsistent recovery. With operator-aggregated checkpoint discovery, the operator can determine the latest step at which all workers have confirmed a successful write, ensuring consistent recovery.

In Kubeflow and PyTorch Elastic, by contrast, checkpoint management is entirely delegated to the training script, with no feedback loop to the orchestration layer.

7.3 IPR Communication Protocol

The IPC protocol for IPR defines several message types:

7.4 Topology Feedback: rank_labels

The RANK_LABELS message in the IPC protocol represents a reverse communication channel - information flowing from the training framework up to the orchestration layer. Workers use hyperpod_notify_labels() to report their parallelism topology: tensor parallel rank, pipeline parallel stage, data parallel group membership, and other framework-specific metadata.

This reverse channel solves a fundamental information asymmetry. The orchestration layer assigns ranks, but it does not inherently know how those ranks map to the training framework’s parallelism topology. In a 3D-parallel configuration (DP × TP × PP), the rank-to-topology mapping depends on the framework’s parallelism configuration, which may change between training runs. By receiving topology labels from workers, the operator can make topology-aware scheduling decisions during recovery:

• Pipeline affinity: Place replacement nodes adjacent (same rack, same switch) to their pipeline stage peers, minimizing cross-stage communication latency.
• Tensor parallel co-location: Ensure tensor parallel groups remain on the same NVSwitch domain after node replacement.
• Data parallel balancing: Distribute data parallel replicas across failure domains to minimize the impact of correlated failures.

In existing systems, the orchestration layer has no knowledge of the training framework’s parallelism topology. Kubeflow and PyTorch Elastic treat all workers as interchangeable — a significant limitation when physical network topology affects training performance, as it does for any multi-dimensional parallelism strategy.

7.5 Restart Mode Negotiation

Workers can influence the recovery strategy through the IPC channel by specifying a RestartMode:

When multiple workers report failures with different restart modes, the agent reports the most severe mode to the operator (JLR > PLR > IPR). This ensures that the recovery strategy matches the worst-case failure across all workers.

8. Fault Recovery Pipeline: End-to-End Flow

Combining all components, the complete fault recovery pipeline operates as follows.

8.1 Coordinated Shutdown: Preventing Cascading NCCL Timeouts

A critical but often overlooked aspect of the recovery pipeline is how the operator stops a running job. In synchronous distributed training, all ranks participate in NCCL collective operations (AllReduce, AllGather, ReduceScatter) at each training step. When one rank fails, the remaining ranks block on the next collective, waiting for the failed rank to respond. Without intervention, each rank waits until its NCCL timeout expires. PyTorch’s default NCCL timeout is 10 minutes (600 s); large-scale deployments commonly raise it to 30 minutes (1800 s) to tolerate transient communication stalls. In a 512-node cluster, this means the entire cluster sits idle for the duration of the timeout, consuming GPU-hours that produce no training progress.

The problem is compounded in systems without centralized orchestration. In vanilla PyTorch Elastic, each node’s elastic agent independently detects the local failure (via worker process exit) and independently attempts re-rendezvous. But the surviving nodes have no mechanism to detect the remote failure — they experience only a hung collective. Each surviving node must wait for the full NCCL timeout before it can begin recovery.

The HyperPod Training Operator eliminates this cascade by implementing coordinated shutdown: when one agent reports a fault (or when HMA detects a node failure via label changes), the operator immediately broadcasts /stop to all agents in the job. This preemptive shutdown breaks the hung collective on every node simultaneously, reducing the failure-to-recovery-start latency from the NCCL timeout (10-30 minutes) to the operator's polling interval (seconds).

The coordination flow:

This design converts a O(NCCL_TIMEOUT) failure response into an O(polling_interval) response — a reduction from minutes to seconds.

8.2 Hardware Fault Detected by HMA

8.3 Training Anomaly Detected by Log Monitoring

LogAgent detects pattern: loss > 2.0 for 5 consecutive datapoints → LogState transitions to SLOW → _monitor_workers sets WorkerState to UNHEALTHY │ ▼ Agent transitions to FAULTED → reason: "LogSlow_LossSpikeDetection" → message: "The job is slowed on the following rules..." │ ▼ Operator polls /status, sees FAULTED with reason → Sends /stop to all agents → (Optionally) runs diagnostics or adjusts hyperparameters → Sends /start to resume

8.4 Escalation Path

The graduated escalation — IPR → PLR → JLR → FAILED — ensures that the lightest possible recovery mechanism is tried first, minimizing downtime while providing fallback paths for progressively more severe failures.

9. Comparison with Existing Approaches

Five architectural differences are particularly significant:

First, the shift from worker-initiated to operator-controlled rendezvous represents an inversion of the rank assignment paradigm. In every existing open-source system — including PyTorch Elastic, DeepSpeed, and Horovod — rank assignment emerges from distributed consensus among workers. This means recovery requires a global synchronization barrier where all surviving nodes re-negotiate ranks simultaneously. In a 500-node cluster, this re-rendezvous creates a thundering-herd problem on the coordination point (rank-0’s TCPStore). The operator-controlled model eliminates this entirely: the operator pushes rank assignments to agents individually, each agent starts immediately upon receiving its assignment, and no inter-node synchronization is needed during recovery.

Second, the three-level graduated escalation (IPR → PLR → JLR) provides recovery granularity that no open-source system matches. PyTorch Elastic always restarts all local workers on a node. Kubeflow always restarts the entire job. HyperPod attempts the lightest recovery first — IPR preserves GPU memory state and restarts in seconds — and escalates only when necessary, adapting to the actual severity of the failure. The restartPolicy configuration ( numRestartBeforeFullJobRestart, evalPeriodSeconds, maxFullJobRestarts) allows fine-grained control over when escalation occurs, preventing both premature job-level restarts and infinite retry loops.

Third, the integration of log-based anomaly detection into the orchestration layer enables detection of failure modes that are invisible to process-level monitoring. A hung NCCL collective, a divergent loss function, or a throughput degradation would go unnoticed by both Kubeflow and PyTorch Elastic until the NCCL timeout fires (potentially 30 minutes) or the job exceeds its deadline. The zero-code-change deployment model (declarative regex rules in YAML) distinguishes this from approaches that require training code instrumentation (NVIDIA NVRx callbacks, custom Prometheus exporters).

Fourth, coordinated shutdown converts a distributed failure detection problem into a centralized one. Without coordination, each node independently waits for its NCCL timeout before detecting a remote failure — an O(NCCL_TIMEOUT) response. With operator-broadcast /stop, all nodes begin recovery simultaneously within seconds of the first fault detection - an O(polling_interval) response. For a typical NCCL timeout of 1800 seconds, this difference alone can save 30 minutes of idle GPU time per failure event.

Fifth, the bidirectional IPC channel creates a feedback loop between the training framework and the orchestration layer that does not exist in any other system. Checkpoint discovery gives the operator visibility into training state (latest valid checkpoint), and rank_labels give the operator visibility into parallelism topology. This information flows upward from training to orchestrator — the reverse of the typical command-and-control direction — enabling topology-aware scheduling and consistent checkpoint recovery that are otherwise impossible without manual intervention.

10. Operational Considerations

10.1 Configuring Log Monitoring Rules

Effective log monitoring requires training scripts to emit structured metrics to stdout. The minimum viable logging configuration:

Rules should be calibrated to the training workload:

• **expectedRecurringFrequencyInSeconds** should be set to 2-3× the expected batch iteration time, accounting for variance
• **metricEvaluationDataPoints** should be set high enough (5-25) to avoid spurious restarts from normal training noise
• **faultOnMatch** should be reserved for patterns that indicate unrecoverable errors (OOM, CUDA errors)

10.2 Choosing Between PLR and IPR

PLR is appropriate when:

• The training framework does not support the RCB pattern
• Memory overhead of maintaining paused processes is a concern
• Recovery from checkpoint is acceptable

IPR is appropriate when:

• Minimizing recovery time is critical (large clusters with frequent failures)
• The training framework supports the RCB barrier pattern (dedicated support exists in the SageMaker HyperPod training adapter for NeMo [10])
• GPU memory state should be preserved across restarts

10.3 Observability

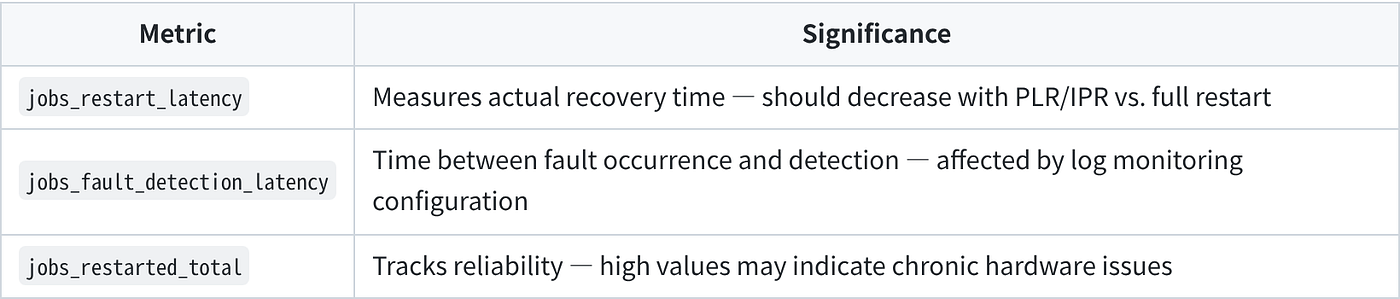

The Training Operator exposes Prometheus metrics on port 8081:

These metrics integrate with the HyperPod Monitoring and Observability EKS add-on for Grafana visualization.

11. Conclusion

The gap between detecting a hardware failure and resuming training involves multiple coordination challenges: propagating failure signals across layers, reassigning ranks, restarting processes at the appropriate granularity, and re-initializing communication groups. Existing open-source tools address individual pieces — Kubeflow manages pod lifecycle, PyTorch Elastic handles worker restarts, DCGM detects GPU faults — but no single system integrates them into a coherent recovery pipeline.

The HyperPod Training Operator and Elastic Agent close this gap through a set of architectural choices that, taken together, form a vertically integrated recovery pipeline:

• Operator-controlled rendezvous replaces distributed consensus with deterministic rank assignment, eliminating the re-rendezvous synchronization barrier that costs minutes at scale.
• Graduated three-level recovery (IPR → PLR → JLR) attempts the lightest mechanism first — preserving GPU memory state in seconds via in-process restart — and escalates only when necessary, with configurable thresholds governing when each escalation triggers.
• Coordinated shutdown broadcasts /stop to all agents when any single rank fails, converting failure response time from O(NCCL_TIMEOUT) - potentially 30 minutes of idle GPU time - to O(polling_interval) in seconds.
• Declarative log-based anomaly detection identifies hangs, loss spikes, throughput degradation, and error patterns through regex rules in YAML, requiring zero training code changes — a capability that no open-source counterpart (Kubernetes probes, Prometheus alerting) or known proprietary system (NVIDIA NVRx, Meta lemon detection) combines with automatic recovery triggering.
• Checkpoint discovery via the IPC channel gives the operator visibility into training state, enabling globally consistent checkpoint selection across all workers — particularly critical for pipeline-parallel training where different stages may checkpoint at different steps.
• Topology feedback through rank_labels allows the training framework to communicate its parallelism topology (PP stage, TP group) back to the orchestrator, enabling topology-aware scheduling decisions during recovery.

Each of these mechanisms addresses a gap that exists in the current open-source ecosystem. Together, they convert a multi-layered, manually coordinated recovery process into an automated pipeline that operates end-to-end — from GPU fault signal to training resumption.

However, orchestrating the recovery is still only half the story. After processes are restarted and ranks reassigned, the training state must be restored — and the speed of that restoration directly determines recovery time. For process-level restart, this means loading the most recent checkpoint from storage. At the scale of 70B+ parameter models, a full sharded checkpoint including optimizer state can reach several hundred gigabytes to over a terabyte; reading it back from S3 or a shared filesystem often takes many minutes, frequently dominating the entire recovery timeline. Whether this I/O bottleneck can be addressed through tiered storage, whether the job can continue on fewer nodes while waiting for replacement, and whether the checkpoint dependency can be eliminated entirely — these are the remaining layers of the resilience problem, each building on the orchestration foundation examined here.

References

• [1] Kubeflow. “Training Operator.” GitHub. https://github.com/kubeflow/training-operator

• [2] Kubeflow. “Trainer v2.” GitHub. https://github.com/kubeflow/trainer

• [3] PyTorch. “Elastic / TorchElastic.” https://pytorch.org/docs/stable/distributed.elastic.html

• [4] Volcano. “Volcano — Cloud Native Batch System.” https://volcano.sh/

• [5] Kubernetes-sigs. “Kueue — Kubernetes-native Job Queueing.” https://github.com/kubernetes-sigs/kueue

• [6] AWS. “Using the HyperPod Training Operator.” https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-eks-operator.html

• [7] AWS. “hyperpod-elastic-agent.” PyPI. https://pypi.org/project/hyperpod-elastic-agent/

• [8] AWS. “Accelerate large-scale AI training with Amazon SageMaker HyperPod training operator.” AWS Machine Learning Blog, 2025. https://aws.amazon.com/blogs/machine-learning/accelerate-large-scale-ai-training-with-amazon-sagemaker-hyperpod-training-operator

• [9] Grattafiori, A., et al. “The Llama 3 Herd of Models.” arXiv:2407.21783, 2024. https://arxiv.org/abs/2407.21783

• [10] AWS. “SageMaker HyperPod training adapter for NeMo.” GitHub. https://github.com/aws/sagemaker-hyperpod-training-adapter-for-nemo
