Semaphores in C++: Cleaner Multi-Threading with Permits and Signaling

Move beyond mutexes. Learn the core principles of semaphores and how to deploy them using C++20.

Part-4 of C++ Multi-threading series.

In the Part-3 **Deadlock by Example: Dining Philosophers, Permits, and Condition Variables **of Multi-threading series:

• We successfully implemented the dining philosophers program!
• We used mutexes to model exclusive access to forks.
• We used a counter and a mutex to model permits that you must have before attempting to eat.
• We used a condition variable to allow threads returning permits to tell waiting threads there are permits available.

This “permission slip” pattern with signaling is a very common pattern:

• Have a counter, mutex and condition_variable_any to track some permission slips
• Thread-safe way to grant permission and to wait for permission (aka sleep)
• But, it’s cumbersome to need 3 variables to implement this — is there a better way?

A semaphore is a single variable type that encapsulates all these functionality.

In the next section, I’ll explain semaphores using the dining philosophers problem as the context. The C++20 semaphore section appears at the end of the post, so don’t confuse the custom semaphore implementation with the standard library one.

What is a Semaphore?

A semaphore manages a count of finite resources. Think of it as a permit dispenser:

• You initialize it with the starting resource count.
• **wait()** — request a permit (blocks if count is 0 or negative).
• **signal()** — return a permit (wakes up waiting threads).

Note: count can be negative in our custom implementation! This allows for some interesting use cases (more later). A negative value of **-n means `n`** threads are currently blocked, waiting for signals.

class semaphore {
    public:
      semaphore(int value = 0);
      void wait();
      void signal();
    private:
      int value;
      std::mutex m;
      std::condition_variable_any cv;
}

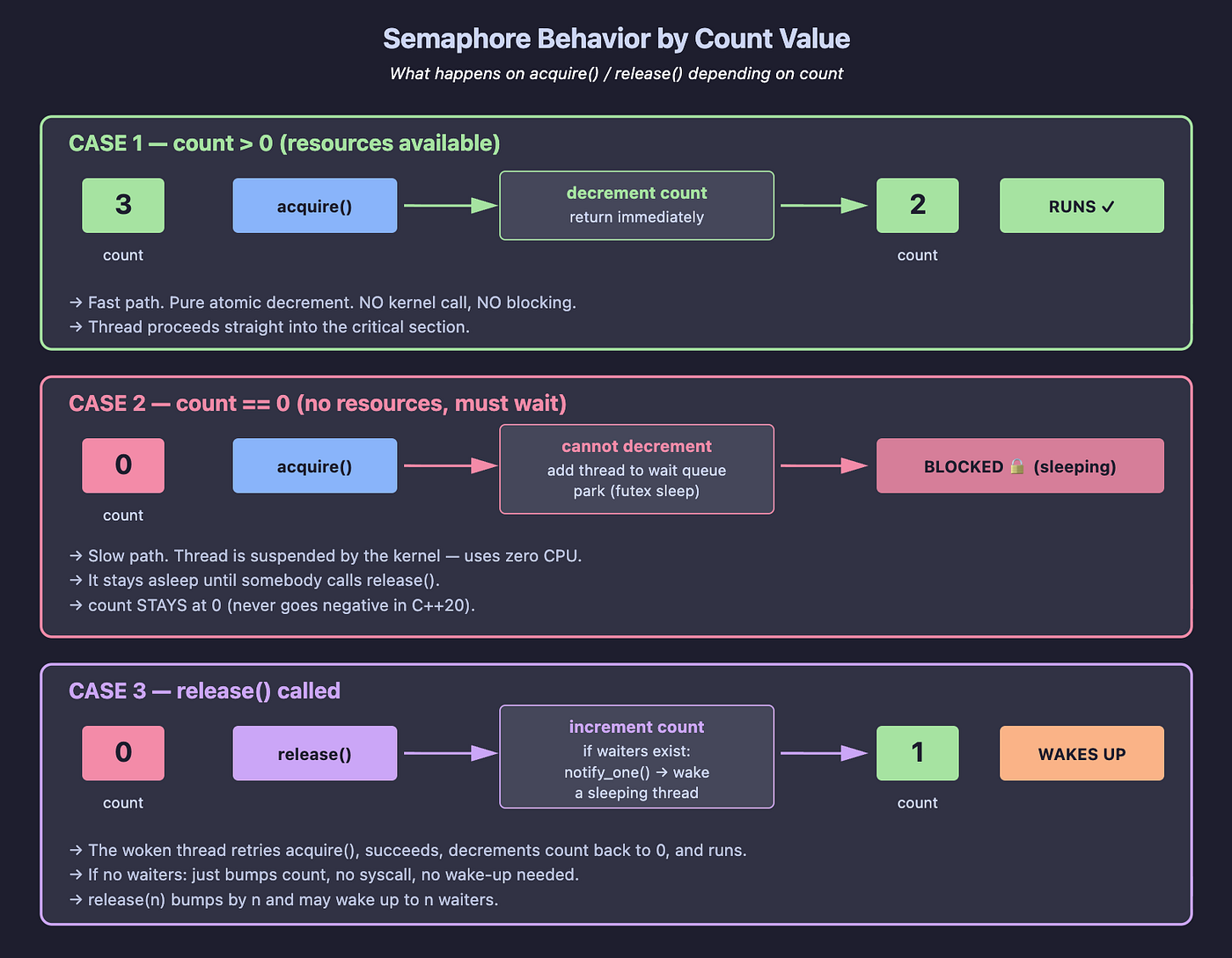

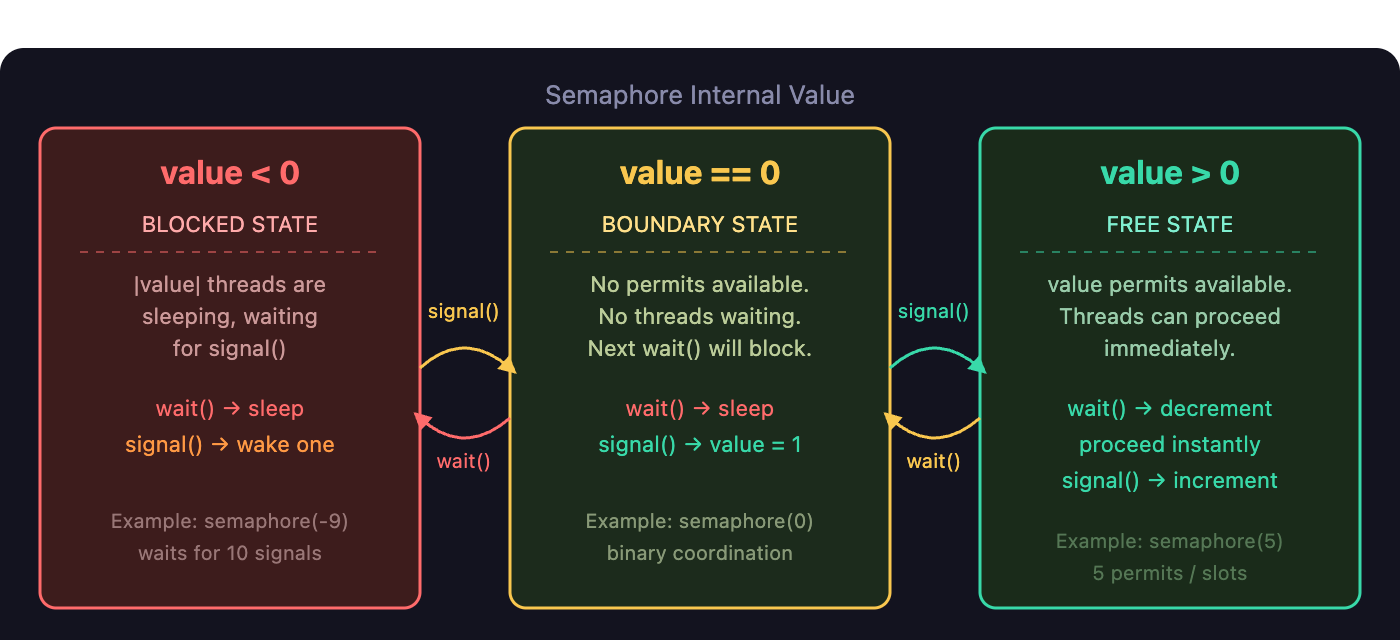

How Semaphores Work — State Machine

This is the most important section. The semaphore’s behavior changes entirely based on whether its internal count is positive, zero, or negative.

The Three Zones:

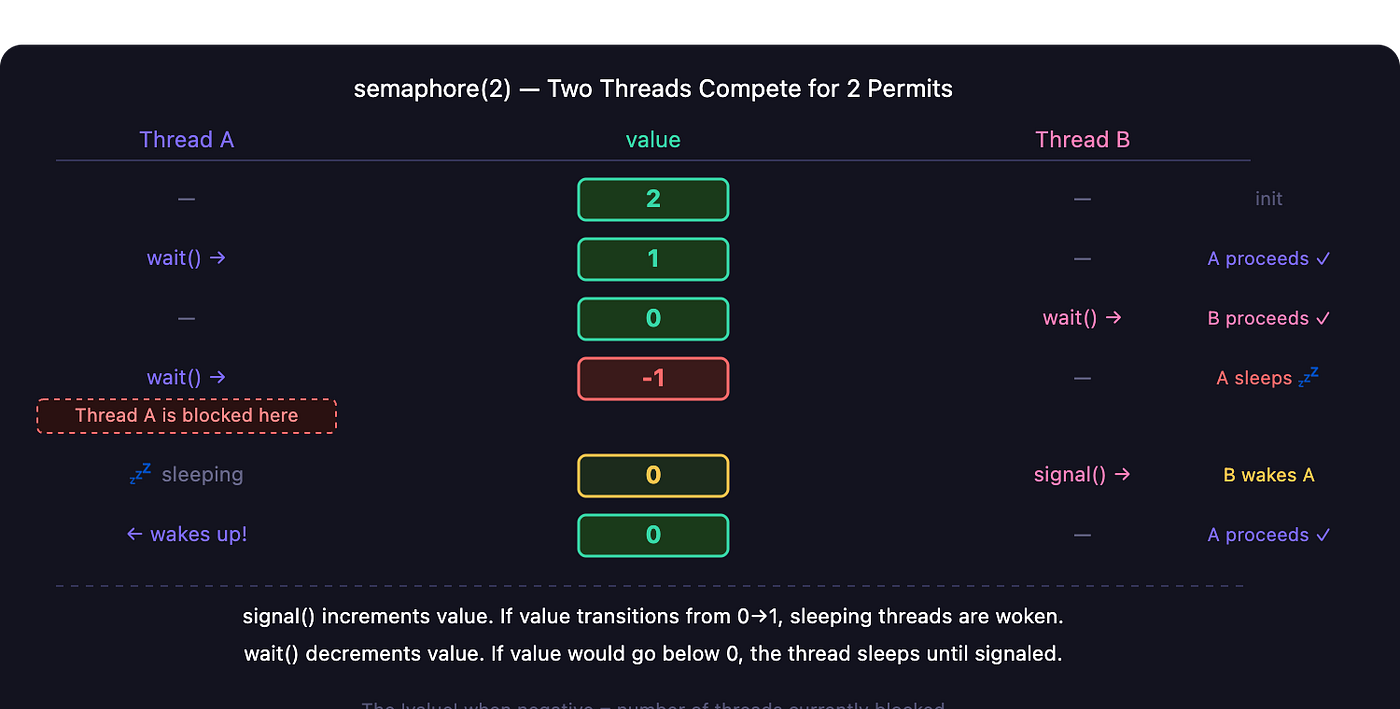

What Happens Step by Step:

Semaphore Implementation

**signal() — Return a permit**

void semaphore::signal() {
    m.lock();
    value++;
    if (value == 1) cv.notify_all();  // Wake up any waiting threads
    m.unlock();
}

**wait() — Request a permit**

void semaphore::wait() {
    m.lock();
    cv.wait(m, [this] { return value > 0; });  // Sleep until value > 0
    value--;
    m.unlock();
}

Why [this]? Lambdas capturing instance variables need **[this] to access them. Why loop / cv.wait with predicate?** Multiple threads can be woken for a single permit — the predicate re-checks the condition after waking.

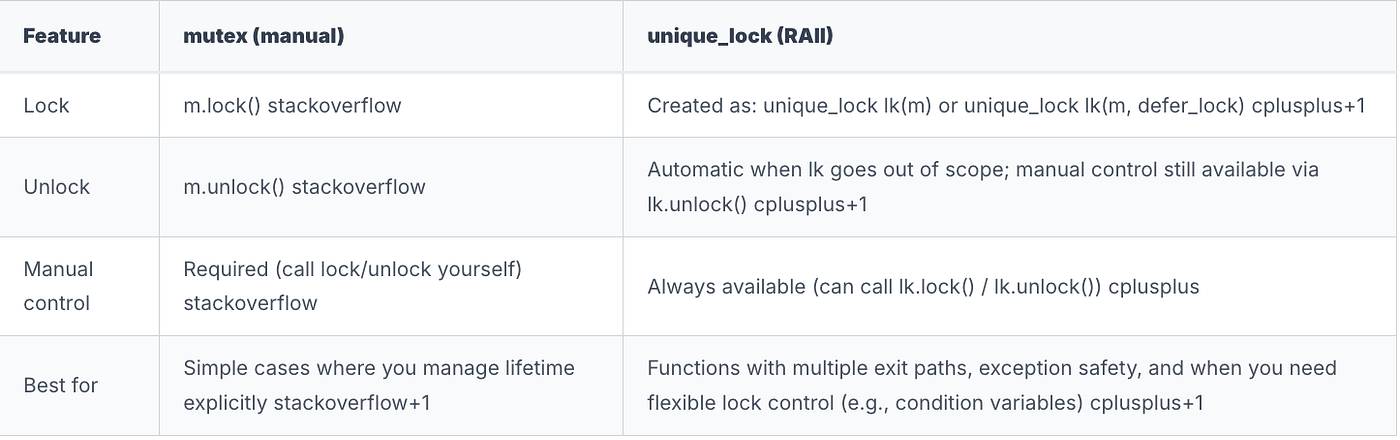

With unique_lock (cleaner version): unique_lock is a RAII wrapper that automatically locks on creation and unlocks on destruction — very useful when a function has multiple return paths.

void semaphore::signal() {
    unique_lock<mutex> lk(m);   // Locks on entry
    value++;
    if (value == 1) cv.notify_all();
}   // Unlocks automatically here

void semaphore::wait() {
    unique_lock<mutex> lk(m);   // Locks on entry
    cv.wait(lk, [this] { return value > 0; });
    value--;
}   // Unlocks automatically here

Particularly useful with **condition_variable because `cv.wait()** requires a lockable object, andunique_lock` satisfies that cleanly.

The Dining Philosopher's implementation using Our Custom Semaphore

Here’s our final version of the dining-philosophers, replacing size_t, mutex, and condition_variable_any with a single semaphore.

static void philosopher(size_t id, mutex & left, mutex & right, semaphore & permits) {
  for (size_t i = 0; i < kNumMeals; i++) {
    think(id);
    eat(id, left, right, permits);

  }
}
int main(int argc,
  const char * argv[]) {
  // NEW
  semaphore permits(kNumForks - 1);
  mutex forks[kNumForks];
  thread philosophers[kNumPhilosophers];
  for (size_t i = 0; i < kNumPhilosophers; i++) {
    mutex & left = forks[i];
    mutex & right = forks[(i + 1) % kNumPhilosophers];
    philosophers[i] = thread(philosopher, i, ref(left), ref(right), ref(permits));
  }
  for (thread & p: philosophers) p.join();
  return 0;
}

eat now relies on the semaphore instead of calling waitForPermission and grantPermission.

static void eat(size_t id,
                mutex & left,
                mutex & right ,
                semaphore & permits)
{
  // NEW
  permits.wait();

  left.lock();
  right.lock();
  cout << id << " starts eating om nom nom nom." << endl << osunlock;
  sleep_for(getEatTime());
  cout << id << " all done eating." << endl << osunlock;
  // NEW
  permits.signal();
  left.unlock();
  right.unlock();
}

Semaphore Use Cases

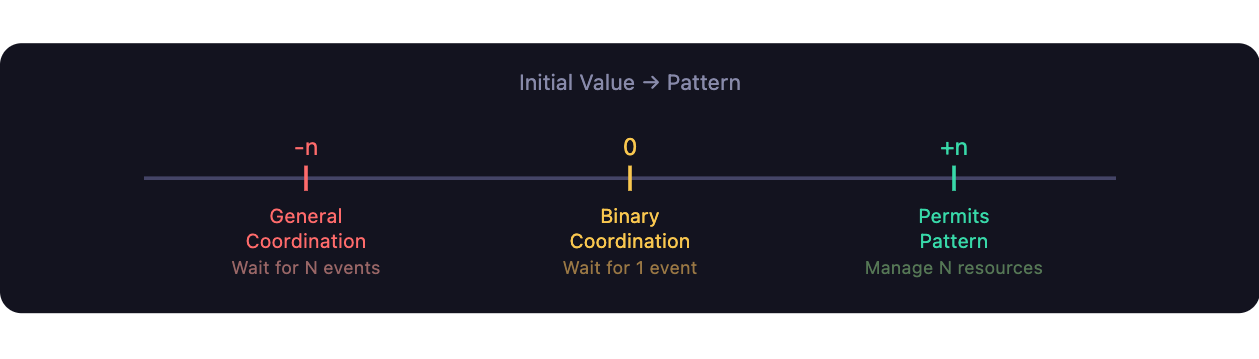

There are three core patterns, each determined by the initial value of the semaphore.

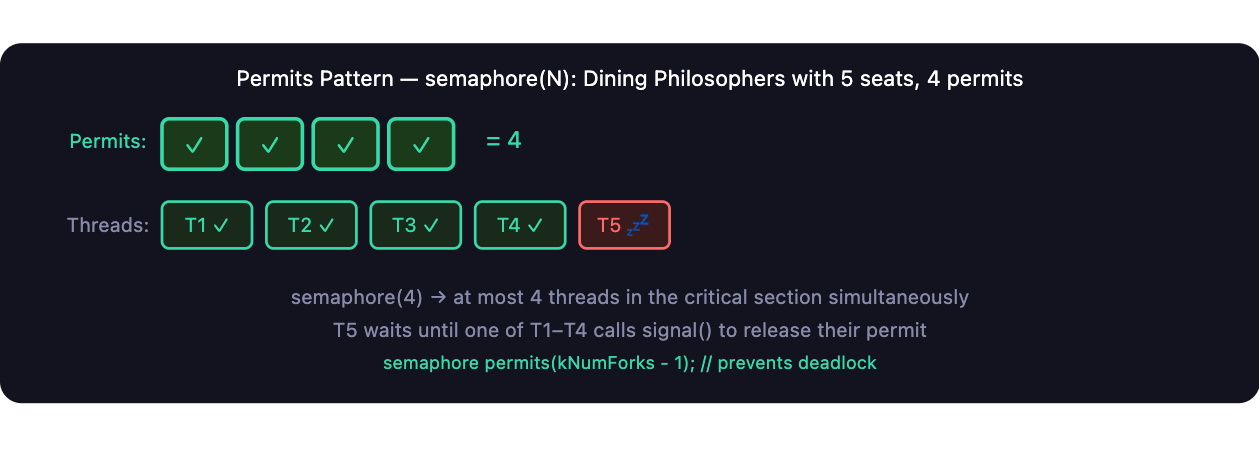

Use Case 1: Permits

Initial value = N (positive) Model N available resources. Threads consume permits with **wait() and return them with `signal()`**.

// Dining philosophers: allow at most (N-1) philosophers to eat at once
semaphore permits(kNumForks - 1);

static void eat(size_t id, mutex& left, mutex& right, semaphore& permits) {
    permits.wait();    // Acquire a permit before picking up forks
    left.lock();
    right.lock();
    // ... eat ...
    permits.signal();  // Return the permit
    left.unlock();
    right.unlock();
}

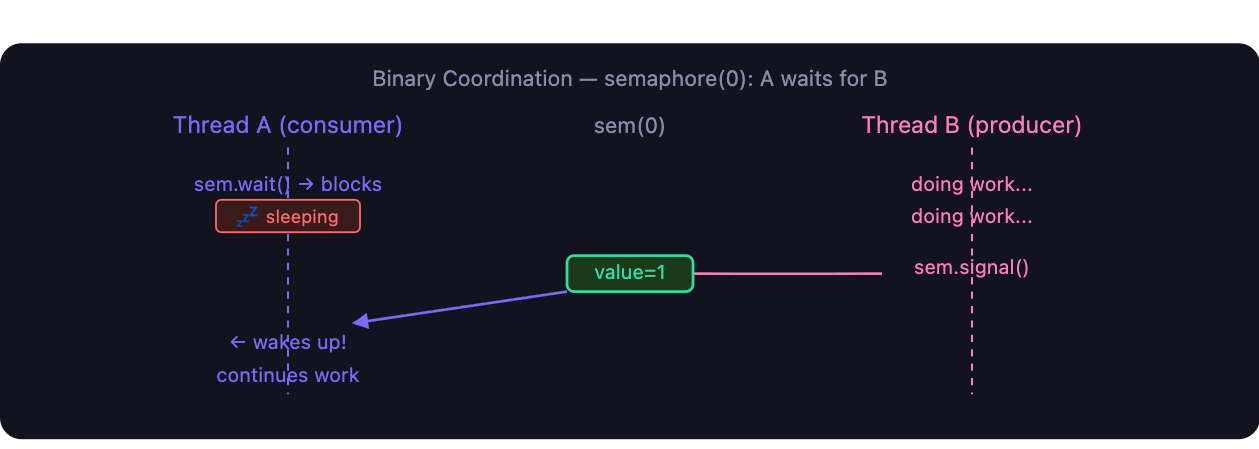

Use Case 2: Binary Coordination

Initial value = 0 Thread A waits for Thread B to complete some work. The semaphore encodes the event status: **0 = not done yet, `1`** = done but not yet acknowledged.

semaphore zeroSemaphore(0);  // No permits initially

void create(int count, semaphore& s) {
    for (int i = 0; i < count; i++) {
        cout << "Now creating " << i << endl;
        s.signal();  // Signal: new item available!
    }
}

void consume_after_create(int count, semaphore& s) {
    for (int i = 0; i < count; i++) {
        s.wait();    // Block until something is available
        cout << "Now consuming " << i << endl;
    }
}

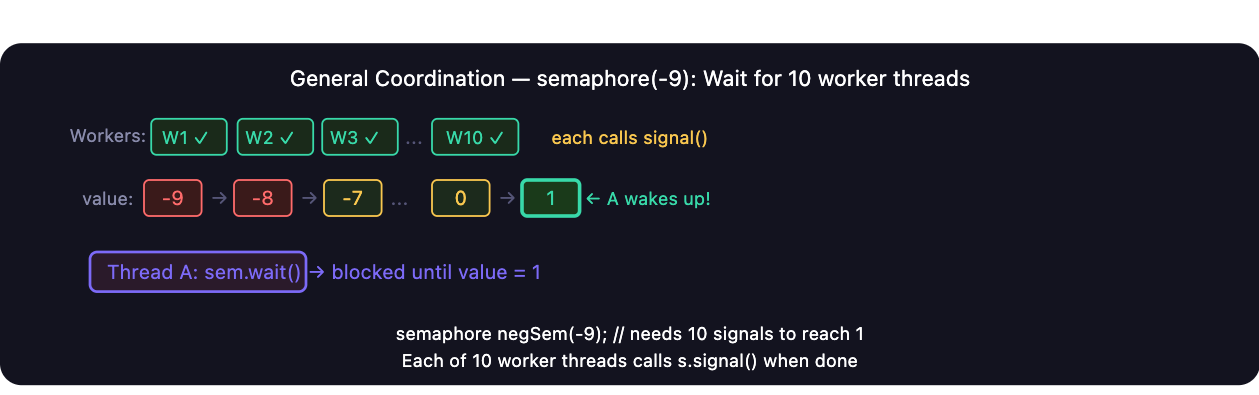

Use Case 3: General Coordination

Initial value = -(N-1) or 0 with N waits Thread A waits for N events to occur before proceeding. This generalizes **thread::join()**.

Option A: Initialize to **-(N-1). Thread A calls `wait()** once; each of the N threads callssignal()`. Only after all N signals does the count reach 1.

Option B: Initialize to **0. Thread A calls `wait()** N times; each of the N threads callssignal()` once.

semaphore negSemaphore(-9);  // needs 10 signals to reach 1

void worker(int i, semaphore& s) {
    cout << "Sending signal " << i << endl;
    s.signal();  // Each worker signals once when done
}

void read_after_ten(semaphore& s) {
    s.wait();  // Blocks until 10 signals have been received
    cout << "Got enough signals to continue!" << endl;
}

int main() {
    thread writers[10];
    for (int i = 0; i < 10; i++)
        writers[i] = thread(worker, i, ref(negSemaphore));
    thread r(read_after_ten, ref(negSemaphore));
    // ...
}

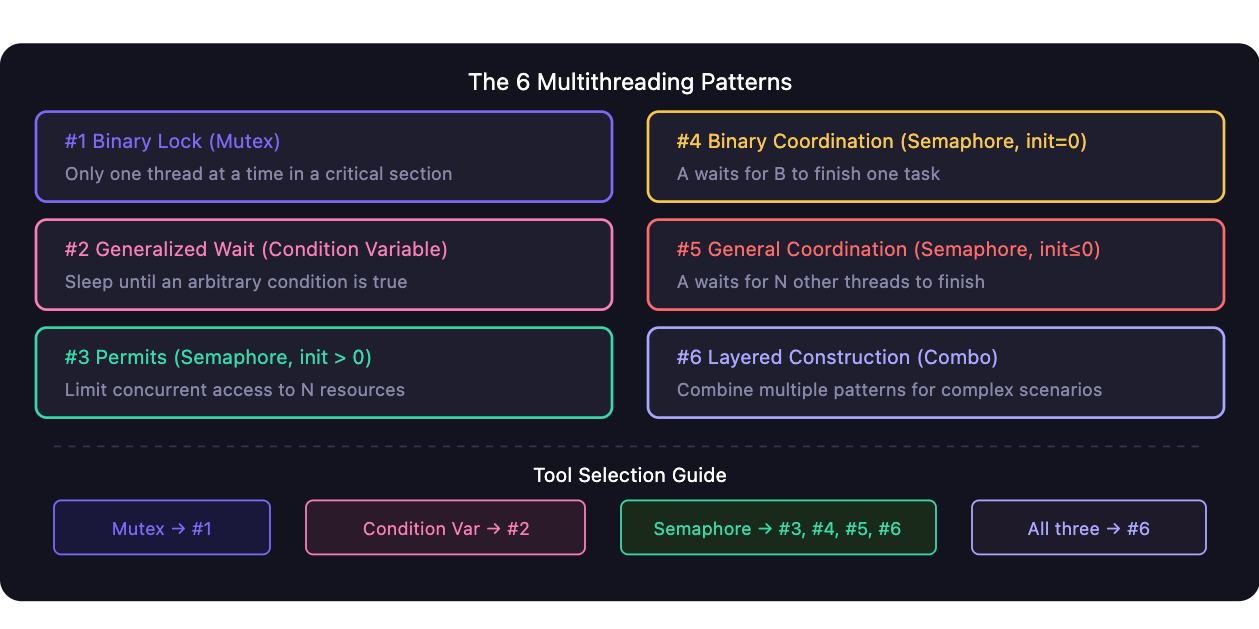

Multithreading Patterns Summary

Semaphore Vs Mutex — The Difference

The biggest mistake I see junior devs make when writing concurrent code is treating a binary semaphore and a mutex like they are the exact same thing. They aren’t. They solve entirely different system-level problems.

Mutexes are about ownership. Semaphores are about signaling and counting.

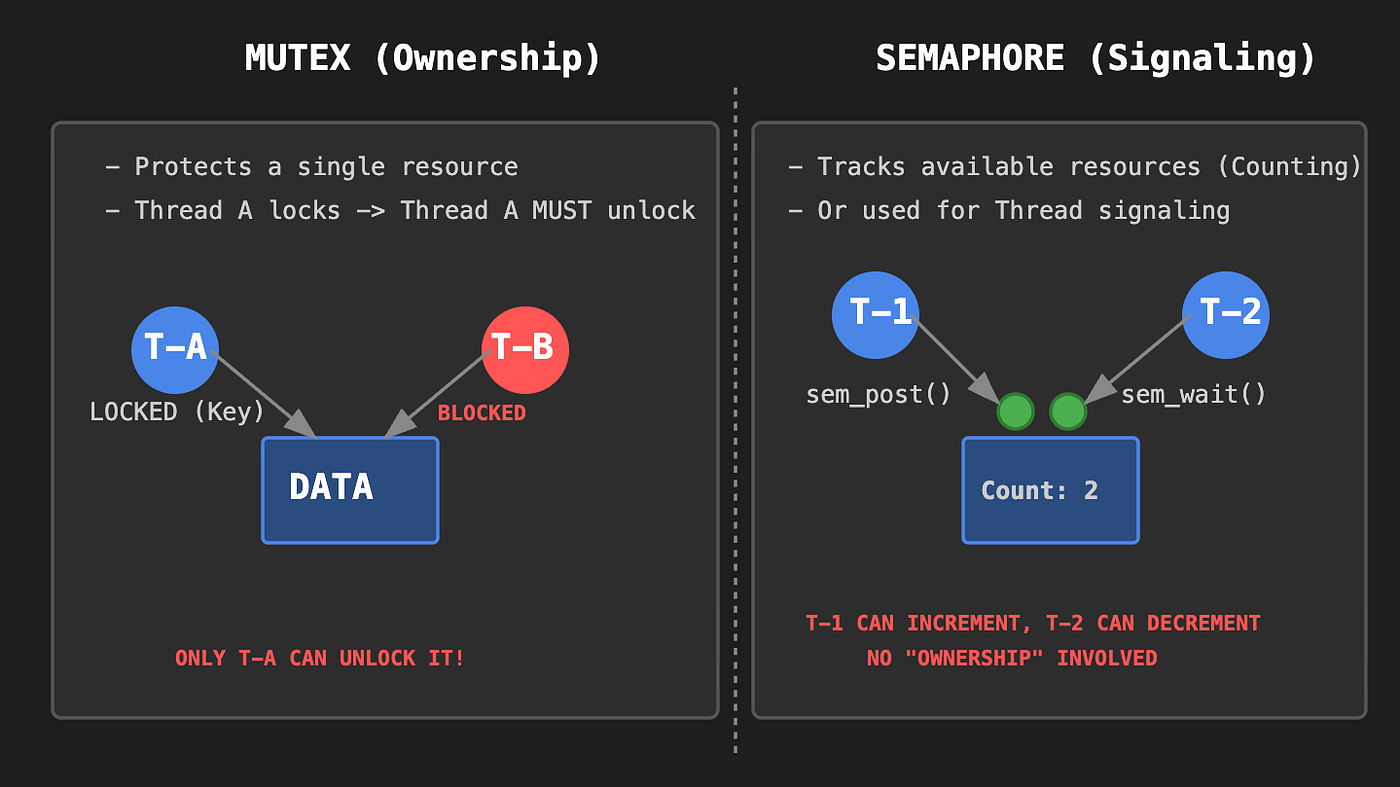

Here is a visual breakdown of how we look at them at the OS level, followed by the technical differences and code.

Mutex (Mutual Exclusion)

A mutex is a locking mechanism. You use it when you have a critical section of code where shared memory is being modified, and you absolutely cannot have two threads in there at the same time.

The Golden Rule: The thread that locks a mutex must be the thread that unlocks it. Because of this ownership model, the OS kernel can do smart things like Priority Inheritance. If a low-priority thread holds a mutex that a high-priority thread is waiting for, the OS will temporarily bump the low-priority thread’s priority up so it can finish and release the lock faster, preventing priority inversion.

#include <pthread.h>

// Statically initialize a mutex
pthread_mutex_t data_lock = PTHREAD_MUTEX_INITIALIZER;
int shared_counter = 0;

void* update_data(void* arg) {
    // 1. Thread acquires ownership
    pthread_mutex_lock(&data_lock);

    // 2. Critical Section (safe from race conditions)
    shared_counter++;

    // 3. Thread releases ownership.
    // Calling this from a different thread results in undefined behavior!
    pthread_mutex_unlock(&data_lock);

    return NULL;
}

Semaphore

A semaphore is a signaling mechanism built around a counter. It does not care about threads. It only cares about the integer it is guarding. There is no concept of “ownership”. Thread A can call **sem_wait() (decrementing the counter), and an entirely different Thread B can call `sem_post()`** (incrementing the counter).

We usually use them for two things:

1. Counting: Regulating access to a pool of identical resources (e.g., “I have 5 database connections, track them”).
2. Signaling/Execution Order: Making Thread B sleep until Thread A finishes a specific task.

#include <semaphore.h>
#include <pthread.h>
#include <stdio.h>

sem_t task_sem;

void* producer(void* arg) {
    printf("Producer: Crunching numbers...\n");
    // Simulate work...

    // Increment the semaphore. This signals the consumer that data is ready.
    sem_post(&task_sem);
    return NULL;
}

void* consumer(void* arg) {
    // Decrement the semaphore. If the count is 0, this thread goes to sleep
    // until the producer calls sem_post().
    sem_wait(&task_sem);

    printf("Consumer: Producer is done, I can process the data now.\n");
    return NULL;
}

int main() {
    // Initialize semaphore with a value of 0 (0 means locked/not ready)
    // 2nd arg '0' means shared between threads of this process
    sem_init(&task_sem, 0, 0);

    // ... thread creation logic omitted for brevity ...

    sem_destroy(&task_sem);
    return 0;
}

To summarise

If you need to protect a shared variable (**x = x + 1), use a mutex. If you need an event-driven system **where one thread unblocks another, or you're managing a bounded queue, use a semaphore.

Never use a binary semaphore just to protect a variable. It lacks priority inheritance, making your system vulnerable to priority inversion deadlocks — the exact bug that almost killed the Mars Pathfinder mission in ’97. Keep your tools doing what they were designed to do.

C++20 Semaphores

C++20 ships two semaphore types, and picking the right one matters:

#include <semaphore>

std::counting_semaphore<10> sem_a{0};  // max count = 10, starts at 0
std::binary_semaphore       sem_b{1};  // alias for counting_semaphore<1>

A couple things worth pointing out:

• The template parameter is the maximum value (compile-time), not the initial one.
• The constructor argument is the initial count.
• **binary_semaphore is literally just `using binary_semaphore = counting_semaphore<1>**;` — nothing fancy.

The Four APIs You’ll Actually Use

That’s it. The whole interface is tiny:

sem.acquire();              // blocks until count > 0, then decrements
sem.release();              // increments count by 1, wakes a waiter
sem.release(n);             // bump by n
sem.try_acquire();          // non-blocking, returns bool
sem.try_acquire_for(dur);   // wait up to a duration
sem.try_acquire_until(tp);  // wait until a time_point

No **wait(), no `signal()** — the committee pickedacquire/release` to match Dijkstra's P/V semantics in modern naming.

Important Points to Remember

• No owner. Unlike a mutex, any thread can release(). That's a feature, not a bug — but it also means you don't get RAII for free. Wrap it yourself if you need scope safety.
• **release(n) must not exceed the max. Going over `LeastMaxValue`** is UB.
• It’s not reentrant. Calling **acquire() twice from the same thread on a `binary_semaphore`** will deadlock you.
• Prefer semaphores over condition_variable for simple counting/signaling.

Closing Thoughts

Semaphores are deceptively simple: a counter with acquire and release operations. But once you see the three common initial states, they become a clean solution to a lot of concurrency problems.

The main takeaway is this: if you find yourself combining a mutex, a counter, and a condition variable just to manage permits or signaling, you’re probably rebuilding a semaphore. Use the right primitive instead of hand-rolling one.

Also remember the distinction: mutexes protect data, semaphores coordinate flow. They may look similar in examples, but their ownership rules and runtime behavior are very different.

Finally, the initial value is the design:

• Positive for resource pools.
• Zero for signaling.
• Negative, or multiple waits, for coordination barriers.

C++20 makes this practical and standard, so for simple counting and coordination problems, semaphores are usually the cleaner choice.
