Home wiring is essential for the safe delivery of electricity throughout a home or building.

First of all, what is house wiring?

House wiring is the entire electrical system through which electricity is safely transferred from the main power supply to various cars, switchboards, lights, fans, sockets and other electrical appliances.

Accident prevention

Correct wiring greatly reduces the risk of short circuits, electric shock, and fire.

House wiring gives a very nice and beautiful look to your house or palace.

Good wiring uses less energy and saves electricity.

phase neutral and the importance of the Earth

-Phase power has to reach the equipment

-Neutral is the resident path of electric current

-Provides protection by directing earth leakage current to safe ground

House wiring cable is not just a means of delivering electricity but it is an important part of home and family safety

Benefits of House Wiring

Increases home security

Chances of accidents are less

There is a normal distribution of power

Increases the life of the equipment

Saves electricity

Features of Good House Wiring

Overload protection

Use of MC and RCCB

Neat and organized wiring

Correct Earthing

Strong Insulation

While wiring your house, make sure to install earthing as without earthing your wiring is incomplete.

While getting the house wiring done, make sure to get the MCB from where the connection of the entire house can be disconnected.

In home wiring, you can get the wire installed according to the load and decide how much mm wire will be used at which place.

Make sure to connect the inverter wire to each board so that you don’t have to install the inverter wire in the future.

Home wiring makes your home look bright and beautiful.

Home wiring provides you with safety so that you never have to suffer from electric shock or electric shock in the future.

The wire switch board and MCB used in wiring the house should be of good brand so that there is no problem in future.

Ensure safe wiring reaches every sweet board in your home wiring.

The phase should always be on the right side of the socket and it is very important to have earthing in every socket.

The input to the socket will always be from the bottom and the output from the top.

Bring the main wire of each room to one place in the MCB box and connect it there. The entire building will be connected from that place only.And make sure to make separate circuits, this will limit your load.

It will be much easier for you to add new devices in the future.The main board of the room should always be on the right side of the room.

If there is any kind of fold in the house wiring, the mind will trip the MCB .

Home wiring looks neat and safe and there are no problems, chances of short circuits are less and folds are very less.

MCB for overload and short circuit protection

Electrical wire for phase neutral inverter and earthing

DB board to control all the circuits

Junction box for securely connecting wires

Switches to turn on and off lights, fans and other appliances

Earthing wire to protect yourself from electric shock

Insulation and wire connectors ensure secure connections.

Ceiling Rose LED Bulb Fan Regulator As Per Appliances

Safety rules

Do not do electrical work with sore hands

Turn off the main MCB before working.

Earth all appliances

Install MCB of correct capacity

Choose the correct wire size

Get the wiring checked periodically

Replace damaged or frayed wires immediately.

Objectives of House Wiring

Providing a safe electricity supply to the home

Delivering the required voltage to all devices

Providing protection against electric shock

Ease of future repair and maintenance

Extending the life of electrical equipment

power supply

General household supplies

Voltage 230 V

Figure 50 Hz

Single phase

In industries

415V

three phase

Wire Types

(1) phuse wire

red or brown color

brings supplies

(2)neutral wire

black or blue color

takes back the current

(3)Earth wire

green or yellow color

For safety

Electrician Note

Good house wiring requires proper planning, selection of correct wires, installation of standard safety devices and adherence to Indian Electrical Standards.

Required equipment

Tester, plier, screwdriver, multimeter, cutting plier, and drill machine

Household load estimation

LED light 9W

FAN 70W

TV 120W

Refrigerator 200W

washing machine 500W

Geyser 2000W

AC 1500W

Overload occurs when more current flows than is required.

Short circuit

When phase and neutral come in direct contact due to poor insulation, loose connections and water

Switch

Switching the supply on and off

Type

1way

2way

bell push

Main Control Panel

In which main MCB, RCCB and separate MCB are installed

Wire Size

(1) 1.5mm light

(2) 2.5mm socket

(3) 4mm Geyser

(4) 6 mm Ac

(5) 10mm Main Supply

Photo by Ryutaro Uozumi on Unsplash

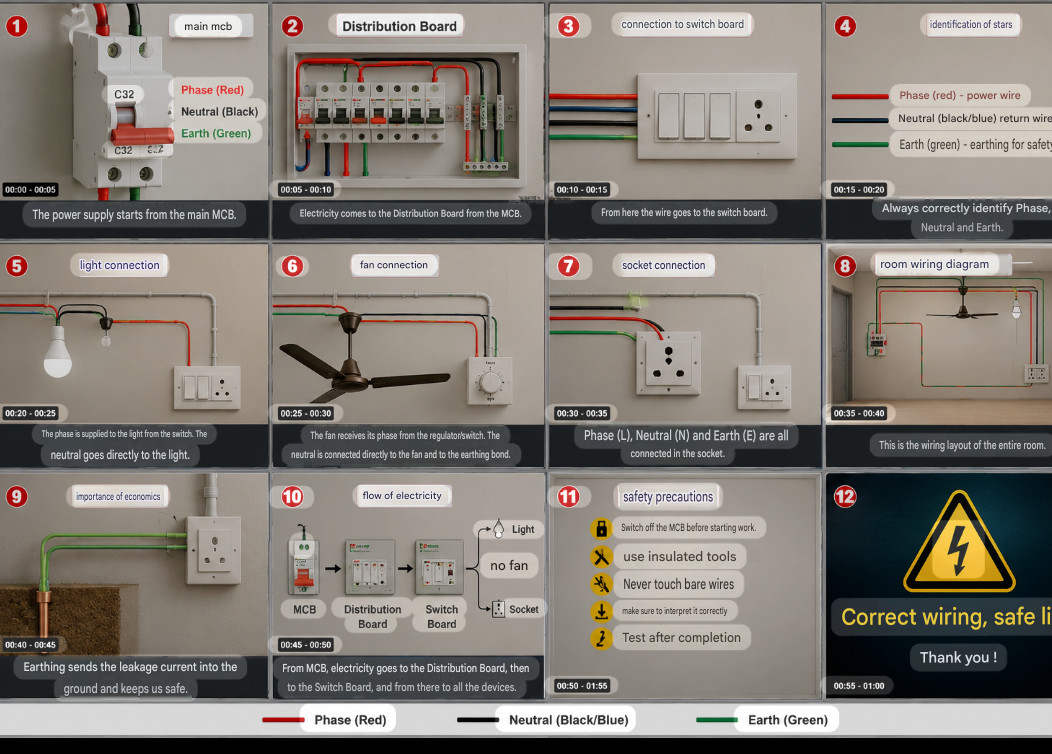

Electricity Department │ Main Supply │ Main MCB │ RCCB / ELCB │ Distribution Board ┌──────┴──────┐ │ │ Light MCB Power MCB │ │ │ │ Switch Board Socket Board

Five Types of House Wiring

1. Cleat wiring
2. batten wiring
3. casing -capping wiring
4. conduit wiring
5. concealed wiring

thanks for reading
