Analyzing Root Privilege Escalation in Cisco Catalyst SD-WAN Manager

In June 2026, CVE-2026–20245, a privilege escalation vulnerability that can lead to root-level command execution in Cisco Catalyst SD-WAN Manager, was publicly disclosed. The vulnerability is rated CVSS 7.8 (High) and stems from insufficient validation of user-supplied input within the SD-WAN Manager CLI. An attacker can upload a crafted file and perform command injection, potentially resulting in arbitrary command execution with root privileges on the affected system.

CVE-2026–20245 should not be viewed as a simple local privilege escalation issue. Although exploitation requires netadmin privileges, attackers who obtain valid credentials through credential theft or combine the flaw with existing SD-WAN authentication bypass vulnerabilities may gain control of the SD-WAN Manager and potentially push configuration changes to managed edge devices. Cisco has also noted limited cases where configuration changes were pushed to edge devices following successful exploitation.

This article examines the technical root cause of CVE-2026–20245, potential attack scenarios, and the risks that externally exposed SD-WAN management systems can pose to enterprise-wide network operations.

Technical Overview of CVE-2026–20245

CategoryDescriptionVulnerability IDCVE-2026–20245Affected ProductsCisco Catalyst SD-WAN Manager (Cisco SD-WAN vManage)Vulnerability TypeCommand Injection / Privilege EscalationCWECWE-116CVSS Score7.8 (High)Attack Conditionsnetadmin Privileges RequiredImpact ScopeRoot-level command execution, possible SD-WAN configuration manipulation

CVE-2026–20245 affects the CLI component of Cisco Catalyst SD-WAN Manager. The core issue is insufficient validation of user-controlled input contained within uploaded files. Attackers can upload specially crafted files to an affected system and exploit command injection vulnerabilities during file processing, ultimately achieving arbitrary command execution with root privileges. While exploitation requires netadmin privileges, SD-WAN Manager serves as the centralized control plane for SD-WAN edge devices, network policies, routing configurations, and connectivity structures.

As a result, escalation from netadmin to root privileges can have significant operational consequences that extend far beyond a single server. Compromise of the SD-WAN Manager may enable attackers to manipulate edge device configurations, alter routing policies, and impact the broader network infrastructure.

Technical Analysis of the File Upload and Input Validation Flaws

The root cause of CVE-2026–20245 is insufficient validation of user-controlled input processed by the Cisco Catalyst SD-WAN Manager CLI. An attacker with netadmin privileges can upload a specially crafted file to the affected system. If file contents, paths, or parameters are not properly validated, the file-processing logic may inadvertently execute unintended system commands. This can allow attackers to escalate privileges and execute arbitrary commands as root on the affected system.

Unlike unauthenticated remote code execution vulnerabilities, CVE-2026–20245 requires prior authentication. However, because SD-WAN Manager acts as the central control point for SD-WAN edge devices and policy management, successful privilege escalation can have consequences across the entire network fabric.

Attackers obtaining root privileges may be able to:

• Execute arbitrary system commands
• Modify system configurations
• Manipulate or delete logs
• Establish persistent access mechanisms
• Further compromise managed SD-WAN infrastructure

Therefore, CVE-2026–20245 should be viewed not merely as a privilege escalation vulnerability but as a pathway to broader control of the SD-WAN management plane.

Example Exploitation Scenario

Exploitation of CVE-2026–20245 is more likely to occur as part of a multi-stage attack involving credential theft, leaked credentials, or previously exploited SD-WAN vulnerabilities.

Identification of Externally Exposed SD-WAN Assets Attackers search the internet for exposed Cisco Catalyst SD-WAN Manager instances or related management interfaces. Indicators may include management portals, authentication pages, service banners, certificates, and exposed ports.

Obtaining netadmin Credentials Attackers acquire netadmin access through:

• Leaked administrator credentials
• Password reuse attacks
• Phishing campaigns
• Exploitation of authentication bypass vulnerabilities

Root Privilege Escalation via CVE-2026–20245 Once authenticated as netadmin, attackers upload a crafted file through the CLI and exploit command injection during file processing to execute commands as root.

Manipulation of Edge Device Configurations Because SD-WAN Manager centrally manages network policies and edge devices, attackers may push malicious configuration changes, alter routing policies, or disrupt network connectivity.

Persistence and Lateral Expansion Attackers may create additional accounts, modify configurations, manipulate logs, and establish remote access mechanisms to maintain long-term access. The critical point is that SD-WAN Manager functions as the network control plane rather than a simple management console. Compromise at this level can affect an organization’s entire SD-WAN environment.

Criminal IP Analysis of Exposed SD-WAN Manager Assets

Assessing the real-world risk of CVE-2026–20245 requires more than determining whether the vulnerability exists. Organizations must also understand whether Cisco Catalyst SD-WAN Manager interfaces are externally accessible. Criminal IP Asset Search can be used to identify exposed SD-WAN assets using queries such as:

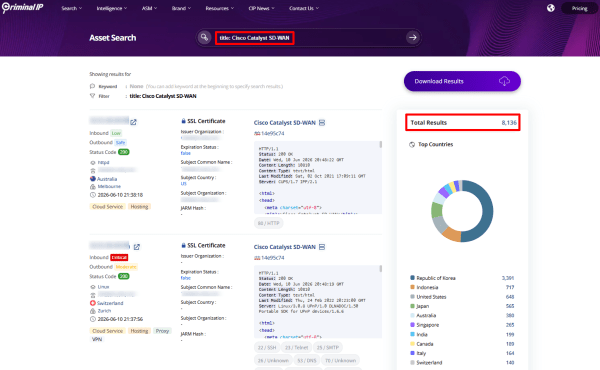

Criminal IP Search Query: title: Cisco Catalyst SD-WAN

This query identifies assets whose web interfaces contain the string “Cisco Catalyst SD-WAN” within their page title, suggesting that they may be Cisco Catalyst SD-WAN Manager or related management portals. As of early June 2026, Criminal IP identified approximately 8,100 internet-exposed Cisco Catalyst SD-WAN-related assets. SD-WAN Manager is not merely a device administration interface. It acts as the centralized control point for SD-WAN edge devices, policies, routing decisions, and network connectivity.

Consequently, externally exposed management interfaces may provide attackers with an initial foothold for:

• Credential stuffing attacks
• Use of leaked credentials
• Exploitation of related vulnerabilities
• Privilege escalation attempts

Because CVE-2026–20245 enables root-level command execution after netadmin access is obtained, exposed management interfaces may serve as the starting point for the full attack chain.

A detailed analysis of one identified asset revealed 97 open ports, 140 identified vulnerabilities, 12 Exploit DB references, 2 policy violations. Externally accessible ports included TCP 80, TCP 138, TCP 139, TCP 143, TCP 445, TCP 479, TCP 750, TCP 873, TCP 1129, TCP 1433, TCP 1522, TCP 2206. Several of these services were associated with known vulnerabilities.

This demonstrates that evaluating Cisco Catalyst SD-WAN Manager risk requires more than simply determining whether a management page is externally accessible. When exposed management interfaces are combined with numerous open ports, known vulnerabilities, and policy violations, attackers gain multiple opportunities to escalate privileges and expand access.

Organizations should therefore evaluate:

• Patch status
• Access restrictions
• Account activity
• Configuration changes
• Security logs

as part of a comprehensive risk assessment.

Remediation Guidance and Patch Status

At the time of disclosure, Cisco had not released a complete patch or broadly applicable workaround for CVE-2026–20245. Because the vulnerability enables root-level command execution after netadmin authentication, organizations should prioritize identifying signs of compromise and reviewing configuration changes rather than relying solely on future software updates.

Before performing upgrades, Cisco recommends collecting diagnostic data using the request admin-tech command on SD-WAN control components.

Organizations should review:

• /var/log/scripts.log
• vconfd_script_upload_tenant_list.sh
• vconfd_script_upload_vsmart_serial_numbers.sh
• vconfd_script_upload_chassis_number_file.sh

for suspicious execution activity.

Because these scripts may also run during normal operations, findings should be compared against expected baselines, including execution time, user account, uploaded file paths, and associated edge device configuration changes.

Recommended Actions

• Verify SD-WAN Manager and control component versions
• Run ‘request admin-tech’ and preserve logs
• Review ‘/var/log/scripts.log’ for suspicious activity
• Audit netadmin login and privilege change history
• Review configuration changes pushed to edge devices
• Restrict management interface access to trusted networks
• Block unnecessary externally accessible ports
• Rotate netadmin credentials and enforce least privilege
• Apply fixed software versions as soon as they become available
• Perform full incident recovery procedures if compromise is confirmed

A critical consideration is that simply applying software updates may not fully remediate an already compromised environment. If evidence of compromise exists, organizations must also validate edge device configurations, review administrator accounts, analyze uploaded files, and investigate abnormal configuration pushes. Ultimately, effective mitigation of CVE-2026–20245 requires reducing external exposure, validating system integrity, and continuously monitoring SD-WAN management infrastructure rather than focusing solely on patch status.

Conclusion

CVE-2026–20245 highlights the risks associated with compromising centralized network management systems such as Cisco Catalyst SD-WAN Manager. Although exploitation requires netadmin privileges, attackers who combine exposed management interfaces, stolen credentials, and related vulnerabilities may achieve root-level command execution and manipulate edge device configurations. The absence of a complete patch or general workaround at disclosure makes proactive security measures even more important. Organizations should prioritize determining whether SD-WAN Manager instances are externally accessible, reviewing configuration change history, monitoring for suspicious script execution, and auditing netadmin account activity.

Ultimately, responding to CVE-2026–20245 is not simply about determining whether a system is vulnerable. It requires continuously validating whether attackers can discover and access management interfaces, whether evidence of compromise already exists, and whether mitigation efforts have successfully reduced the organization’s attack surface.
