Convolutional Neural Networks (CNN): Teaching Computers to See Like Humans

Introduction

Imagine showing thousands of images of cats and dogs to a computer and asking it to identify each one correctly. While humans can recognize objects almost instantly, computers cannot naturally understand images — they only see a grid of numbers representing pixel values.

So, how do computers learn to “see”?

The answer lies in Convolutional Neural Networks (CNNs).

CNNs are one of the most influential breakthroughs in Deep Learning and Computer Vision. They automatically learn important visual features such as edges, textures, shapes, and objects, enabling machines to perform tasks like image classification, facial recognition, object detection, and medical image analysis with remarkable accuracy.

What is a Convolutional Neural Network (CNN)?

A Convolutional Neural Network (CNN) is a specialized type of Artificial Neural Network (ANN) designed specifically for processing visual data such as images and videos.

Unlike traditional machine learning algorithms that rely on manually engineered features, CNNs automatically learn the most relevant features directly from the training data. This ability significantly improves both accuracy and efficiency, making CNNs the foundation of modern computer vision systems.

CNNs are widely used in:

• Image Classification
• Face Recognition
• Medical Image Analysis
• Self-Driving Cars
• Object Detection
• Handwriting Recognition
• Satellite Image Analysis

Why Do We Need CNN?

Traditional machine learning models require manual feature extraction, where experts identify important characteristics such as edges, corners, or textures before training the model. This process is time-consuming and often fails to capture complex visual patterns.

CNNs overcome this limitation by automatically learning hierarchical features from raw images. During training, the network gradually learns to recognize simple patterns like edges and textures before combining them into more complex structures such as faces, vehicles, or animals.

This automatic feature learning makes CNNs highly accurate, scalable, and suitable for a wide range of computer vision applications.

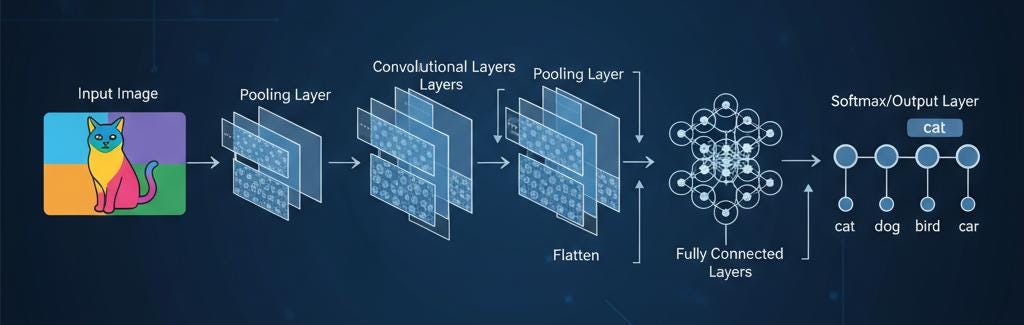

How Does CNN Work?

A CNN processes an image through a sequence of specialized layers:

Input Image → Convolution → ReLU → Pooling → Flatten → Fully Connected Layer → Output

Each layer extracts increasingly meaningful information from the image. Early layers detect simple features such as edges, while deeper layers recognize complex objects and patterns, allowing the network to make accurate predictions.

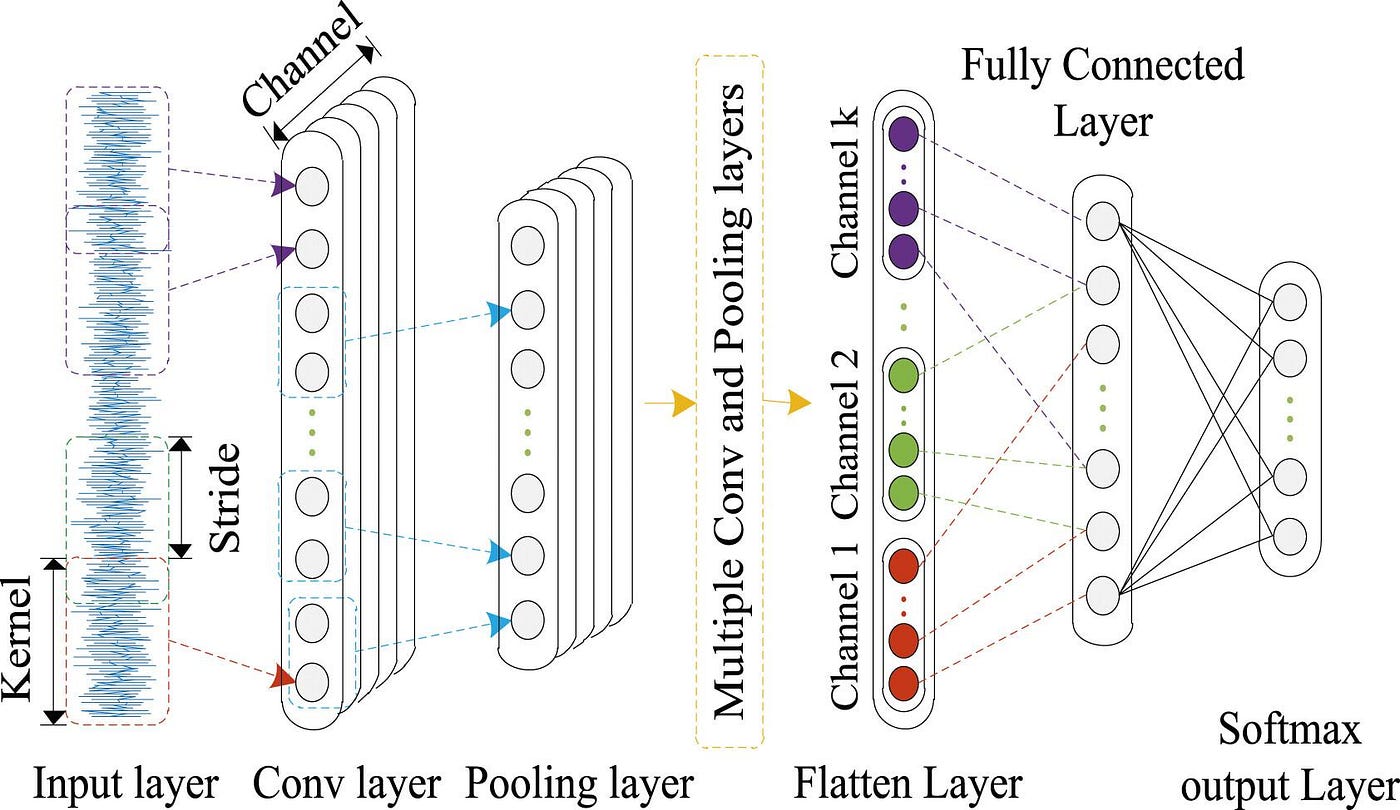

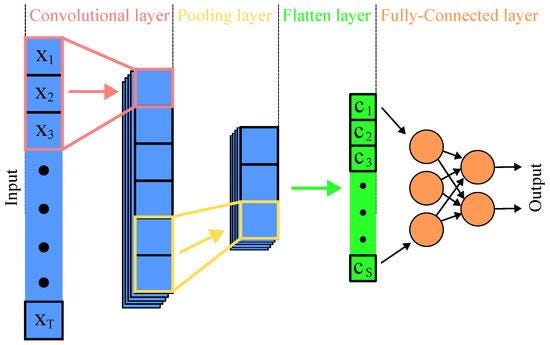

CNN Architecture

1. Input Layer

The input layer receives the original image.

For example:

• Grayscale Image → 28 × 28 × 1
• RGB Image → 224 × 224 × 3

Each pixel contains numerical values that represent image intensity.

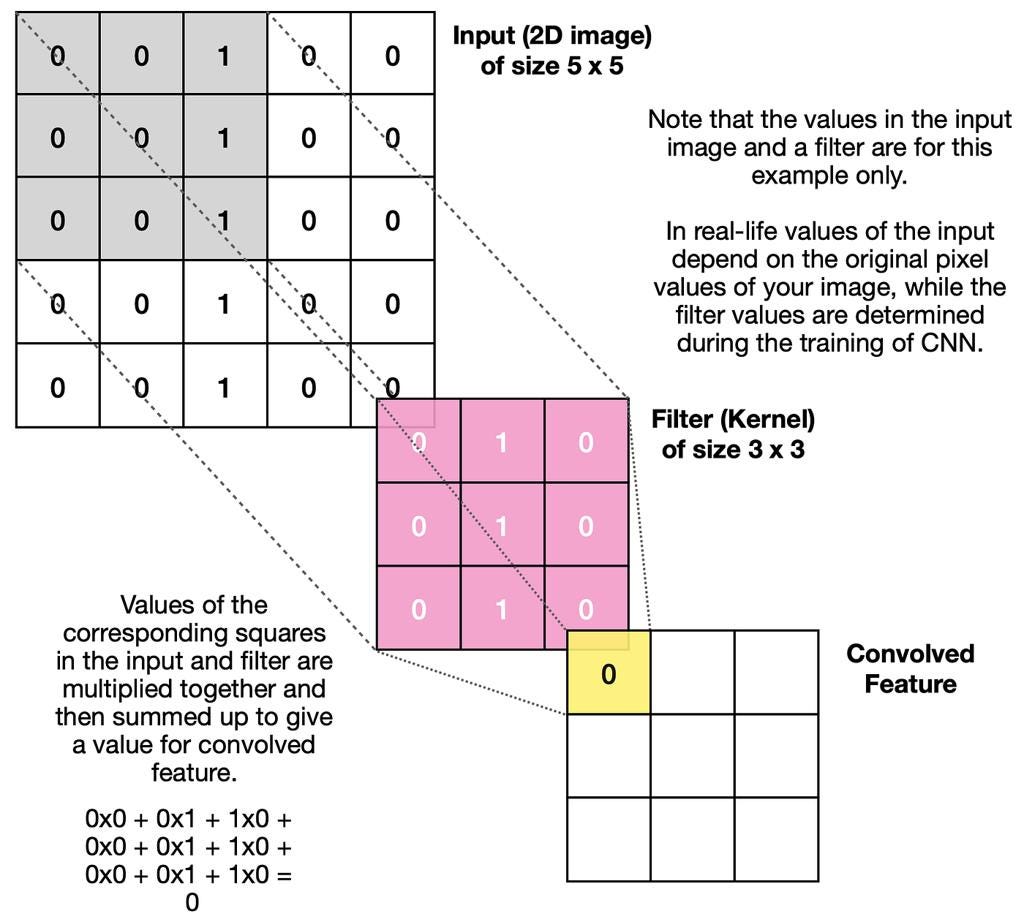

2. Convolution Layer

The Convolution Layer is considered the heart of a CNN because it extracts the most important visual features from an image.

A small filter (also called a kernel) slides across the image, scanning small regions at a time to detect patterns such as edges, corners, textures, and curves. The output produced by this operation is known as a feature map.

Convolution Formula

Feature Map = Input Image * Kernel

(Here, `` denotes the convolution operation, not ordinary multiplication.)*

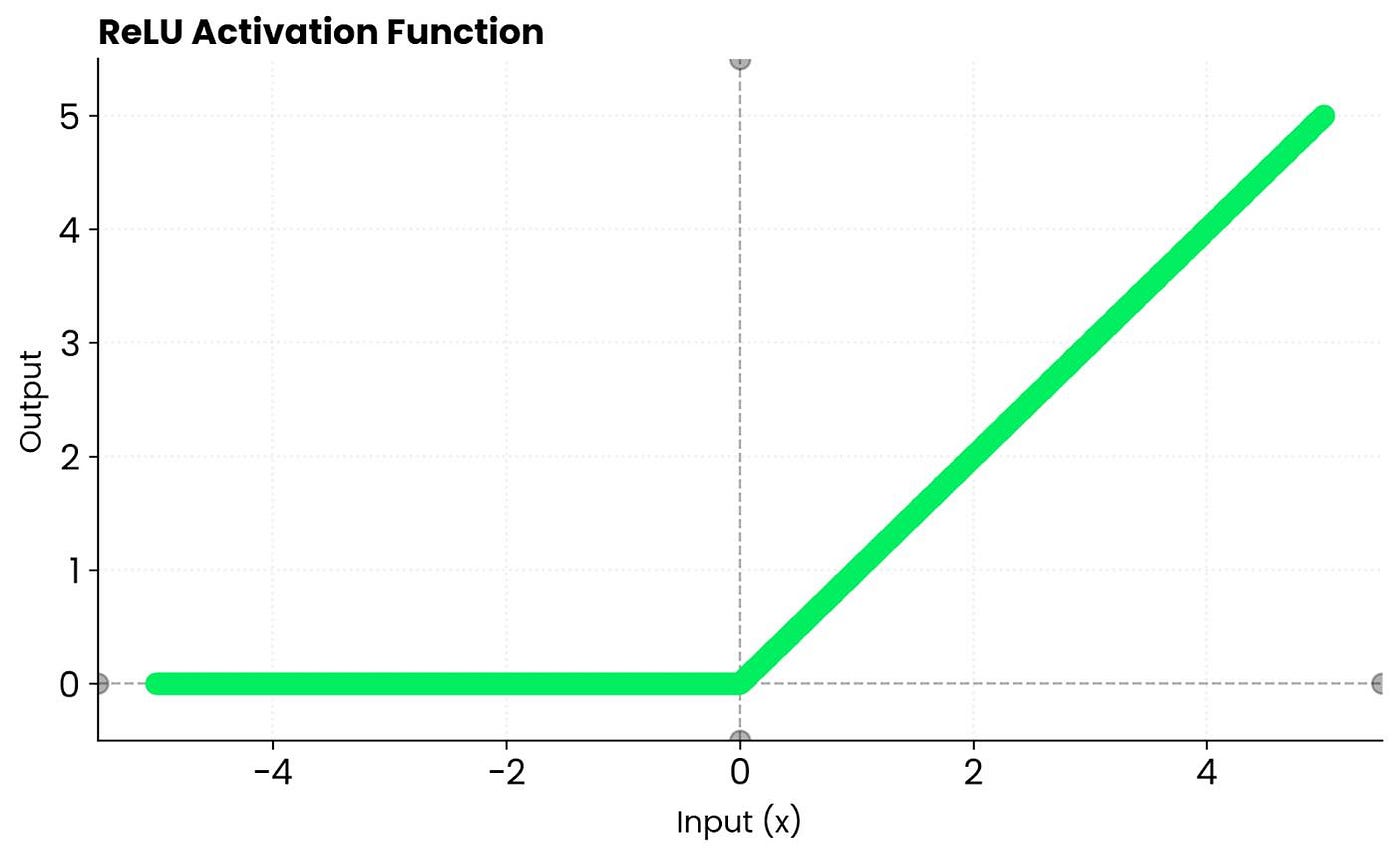

3. ReLU (Activation Function)

After convolution, the feature map passes through the ReLU (Rectified Linear Unit) activation function.

The ReLU activation function replaces all negative values with zero while preserving positive values, allowing the network to learn complex non-linear relationships efficiently.

Formula

ReLU(x) = max(0, x)

This introduces non-linearity, allowing CNNs to learn complex patterns.

4. Pooling Layer

Pooling reduces the spatial dimensions of the feature maps while retaining the most important information. This decreases computational cost, reduces memory usage, and helps minimize overfitting.

The two most common types are:

Max Pooling

Selects the largest value from each region.

Average Pooling

Calculates the average value from each region.

Pooling reduces computation and helps prevent overfitting.

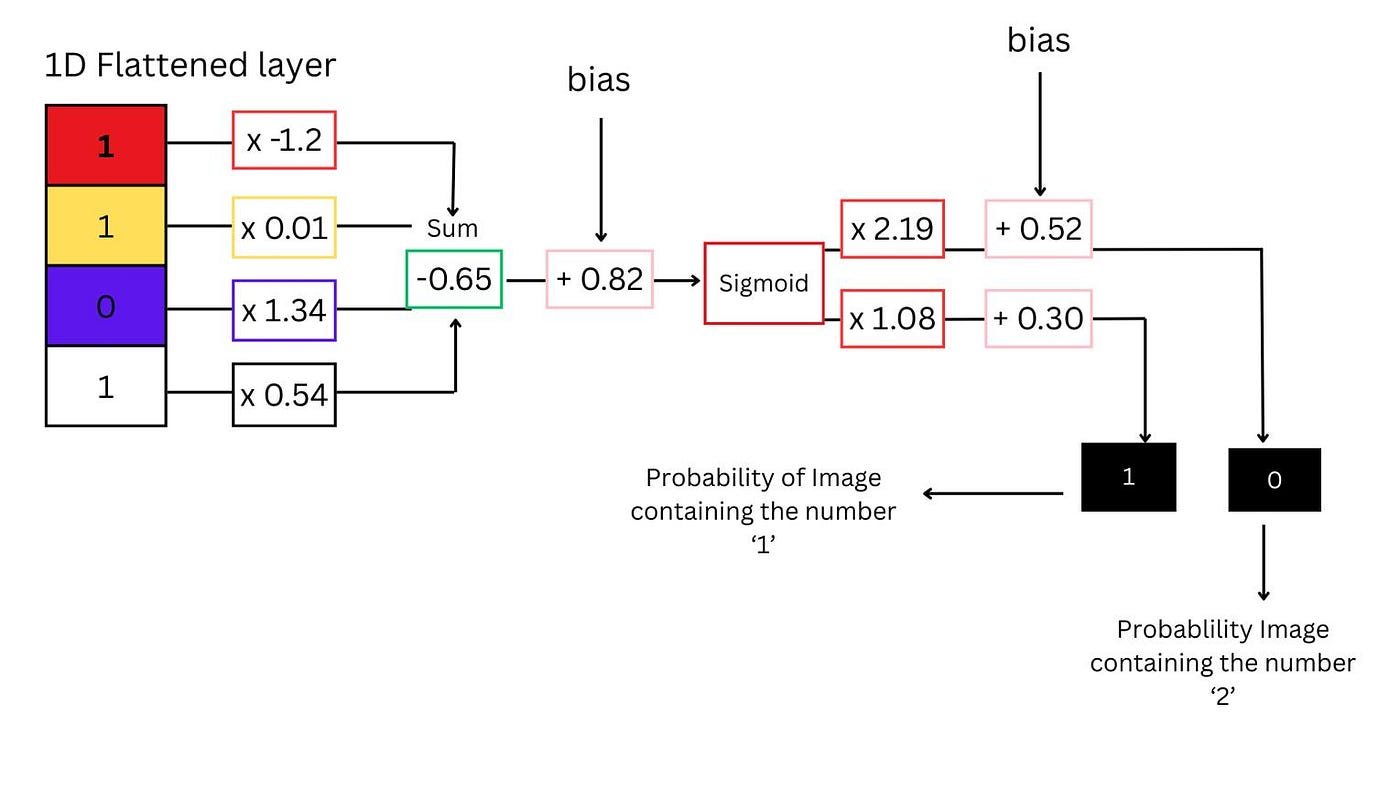

5. Flatten Layer

The Flatten layer transforms the two-dimensional feature maps into a one-dimensional vector, preparing the extracted features for the fully connected layers responsible for classification.

6. Fully Connected Layer

The Fully Connected Layer combines all extracted features and learns the relationship between them to predict the final output class.

For example:

• Cat
• Dog
• Car
• Airplane

7. Output Layer

The Output Layer generates the final prediction by assigning probabilities to each class. For binary classification, a Sigmoid activation function is commonly used, while Softmax is preferred for multi-class classification problems.

Sigmoid Function

The Sigmoid function is an activation function used in the output layer of binary classification problems, where there are only two possible classes (e.g., Cat vs. Dog, Spam vs. Not Spam).

It converts any input value into a probability between 0 and 1, representing the likelihood that an input belongs to the positive class.

Formula

Sigmoid(x) = 1 / (1 + e⁻ˣ)

Example

Suppose a CNN predicts whether an image contains a cat.

The network produces an output value of 2.5.

Applying the Sigmoid function:

Sigmoid(2.5) ≈ 0.92Output Probability = 0.92 (92%)

Since the probability is greater than 0.5, the model predicts:

Prediction: 🐱 Cat

If the probability had been 0.18, the prediction would be:

Prediction: 🐶 Not Cat (Dog)

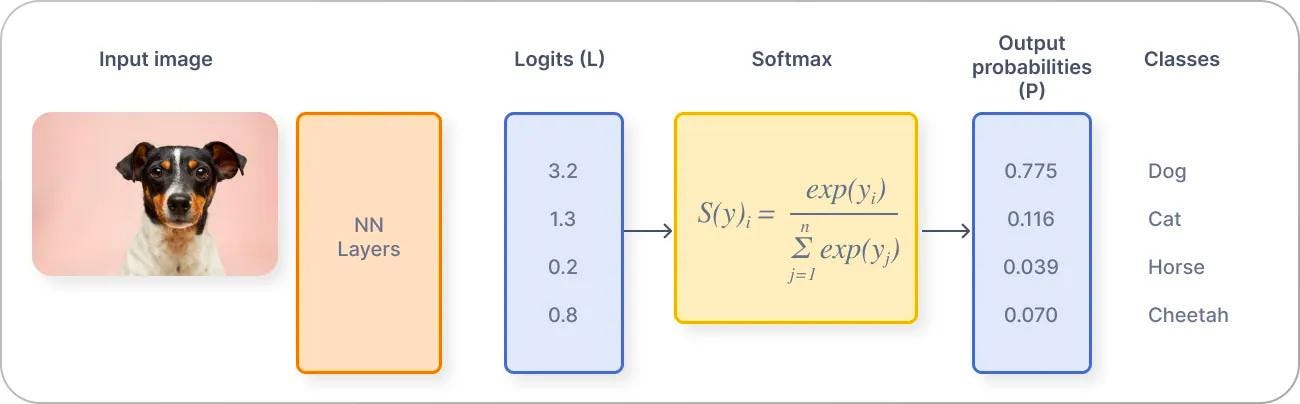

Softmax Function

The Softmax function is used in the output layer of multi-class classification problems, where an input can belong to more than two classes.

Instead of producing a single probability, Softmax converts the output scores into probabilities for all classes, ensuring that the probabilities add up to 1 (100%).

Formula

Softmax(xᵢ) = eˣⁱ / Σeˣʲ

where:

• eˣⁱ = exponential of the score for class i
• Σeˣʲ = sum of exponentials of the scores for all classes

Example

Suppose a CNN classifies an image into one of four categories:

• Cat
• Dog
• Horse
• Bird

The network outputs the following probabilities after applying Softmax:

ClassProbabilityCat0.10Dog0.75Horse0.10Bird0.05

Since Dog has the highest probability (75%), the model predicts:

Prediction: 🐶 Dog

The probabilities add up to:

0.10 + 0.75 + 0.10 + 0.05 = 1.00

Training Process

Instead of only listing the steps, briefly explain them:

• Forward Propagation: The input image passes through the network to generate predictions.
• Loss Calculation: The prediction error is measured using a loss function.
• Backpropagation: Errors are propagated backward to update the network’s weights.
• Weight Update: Optimization algorithms (e.g., Gradient Descent or Adam) adjust the weights.
• Repeat Until Convergence: The process continues over multiple epochs until the model achieves satisfactory performance.

Advantages of CNN

• Automatically learns image features.

• High accuracy in image classification.

• Reduces the need for manual feature engineering.

• Shares weights, reducing the number of parameters.

• Performs well on large image datasets.

Limitations of CNN

• Requires large labeled datasets.

• Computationally expensive to train.

• Needs powerful hardware (GPUs) for efficient training.

• Training can take significant time.

• Difficult to interpret compared to simpler machine learning models.

Applications of CNN

CNNs are used in many real-world applications:

• Image Classification
• Face Recognition
• Object Detection
• Medical Diagnosis
• Self-Driving Cars
• OCR (Optical Character Recognition)
• Facial Emotion Recognition
• Security Surveillance
• Agriculture and Crop Disease Detection
• Satellite Image Analysis

Evaluation Metrics for CNN

For image classification tasks, CNN models are commonly evaluated using:

• Accuracy
• Precision
• Recall
• F1-Score
• Confusion Matrix
• ROC Curve & AUC

These metrics help measure the model’s classification performance and identify areas for improvement

Summary :

Convolutional Neural Networks (CNNs) have revolutionized the field of Computer Vision by enabling machines to automatically learn meaningful features from images without manual intervention. Through layers such as Convolution, ReLU, Pooling, Flatten, and Fully Connected Layers, CNNs can accurately recognize objects, classify images, and solve complex visual recognition tasks. Their exceptional performance in applications such as medical diagnosis, autonomous driving, facial recognition, and security surveillance has established CNNs as one of the most powerful and widely adopted deep learning models in artificial intelligence.
