How Sunlight-Readable LCDs Power Outdoor Industrial Applications

Introduction: Why Outdoor Displays Are Different

LCD technology is no longer confined to offices and living rooms. Today, you’ll find displays in ticket machines, agricultural tractors, marine dashboards, and smart city systems. But once you move a display outdoors, everything changes. Direct sunlight, glare, heat, dust, and vibration all create challenges for both readability and durability.

This article takes a closer look at the technologies that make LCDs usable in sunlight and how industries are applying them in real-world outdoor environments.

Why Ordinary LCDs Struggle in Sunlight

Most consumer-grade LCDs are designed for indoor conditions. Their backlight brightness usually falls between 250 and 350 nits, which is fine indoors but hopeless against direct sunlight. In the open air, ambient light overpowers the display and washes out the image.

On top of that, reflective surfaces and the gap between the cover glass and panel create glare, further lowering contrast. This is why sunlight-readable displays are a necessity when designing outdoor or industrial equipment.

Key Stress Factors in Outdoor Environments

Designing a reliable outdoor display solution means accounting for:

• Sunlight & Reflection: Direct sun lowers contrast and clarity.
• Temperature Extremes: Devices may need to work from –20°C to +70°C.
• Dust & Water: Outdoor systems require IP65/67 sealing.
• Shock & Vibration: Machinery and vehicle displays must handle constant stress.

Without ruggedization, a typical consumer LCD will fail quickly.

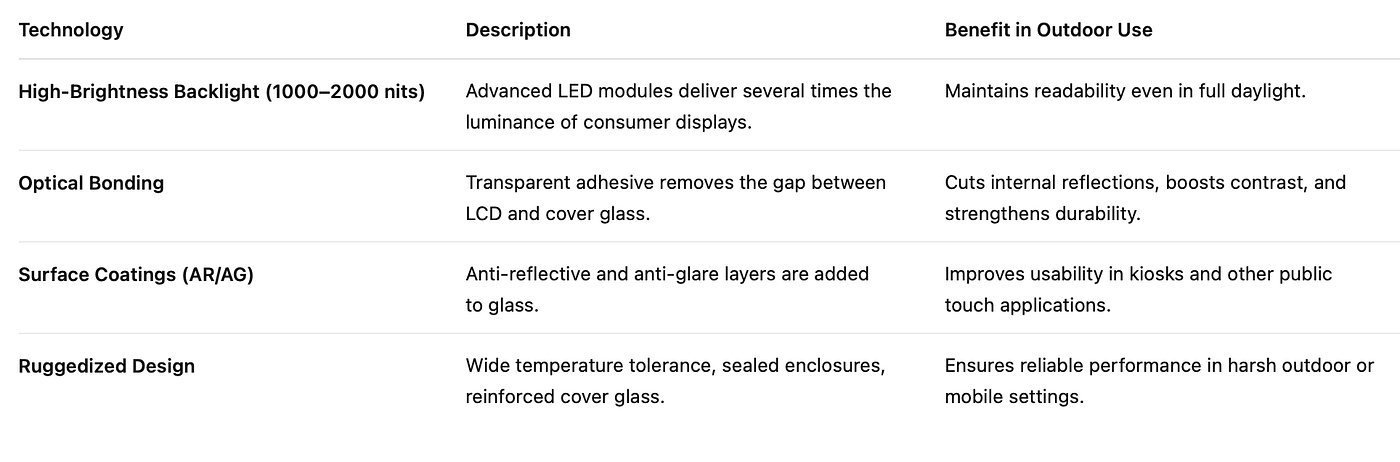

Core Technologies for Sunlight-Readable TFT LCDs

These are not optional extras — they’re what make a display truly industrial-grade.

High-Brightness Backlight Systems

The first step to outdoor readability is brightness. While consumer panels peak at around 350 nits, industrial sunlight-readable LCDs reach 1000–2000 nits.

This makes them essential for:

• Street kiosks and ATMs that need visibility in daylight.
• In-vehicle dashboards exposed to constant sunlight.
• Outdoor signage where content must be visible from a distance.

Modern LED backlight systems also ensure consistent color and brightness, even under heat stress.

Optical Bonding for Enhanced Clarity

Brightness alone isn’t enough. Internal reflections inside the display can still blur images. Optical bonding solves this by filling the air gap with adhesive, effectively removing reflections.

Benefits include:

• Better contrast and readability outdoors.
• Stronger resistance against shock and vibration.
• Protection from dust and moisture entering the display.

For critical uses such as ticketing machines or medical kiosks, optical bonding is now a standard requirement.

Surface Treatments: AR and AG Coatings

Even with bonding, surface reflections are a problem. That’s where AR (anti-reflective) and AG (anti-glare) coatings come in:

• AR minimizes mirror-like reflections from direct sunlight.
• AG diffuses scattered light to reduce glare at different angles.
• Optional AF (anti-fingerprint) coatings keep touch screens clean in public spaces.

These treatments make a big difference for touchscreen kiosks, where smudges can otherwise ruin visibility.

Ruggedization: Built for Harsh Conditions

Industrial outdoor displays also need to survive tough environments. Ruggedization measures include:

• Operating temperature range from –30°C to +80°C.
• IP65/67 enclosures to block dust and water.
• Reinforced glass to resist impacts.
• Vibration-proof design for heavy vehicles and machinery.

These features are essential in agriculture, mining, and marine systems, where conditions are harsh and uptime is critical.

Applications of Sunlight-Readable LCDs

Outdoor Kiosks and Payment Terminals

• Bright backlight ensures visibility in daylight.
• Optical bonding reduces reflections.
• Reinforced glass resists scratches from constant public use.

Transportation and E-Bike Displays

• Wide temperature tolerance keeps screens reliable.
• Touchscreens designed for use with gloves.
• IP-rated protection supports outdoor mobility devices.

Industrial Equipment and Agriculture

• High-brightness TFT panels stay visible in open fields.
• AR/AG coatings reduce glare during field work.
• Wide viewing angles ensure operators always see the data clearly.

Marine Navigation and Control Systems

• Bonded panels prevent fogging and condensation.
• Waterproofing protects against salt and humidity.
• UV resistance ensures long-term reliability at sea.

Future Trends in Outdoor TFT and Sunlight LCDs

Looking ahead, the industry is focusing on:

1. Energy-Efficient Backlighting to cut power use.
2. Ultra-Bright Panels pushing past 2000 nits.
3. Stronger Ruggedization for extreme conditions.
4. AI-Driven Adaptive Brightness using sensors to adjust to the environment.

These improvements will expand the use of LCDs in outdoor and industrial sectors.

Further Reading

If you’d like to explore more, check out:

• Embedded SBC resources — articles about single-board computers and related display technologies.
• Personal blog hub — a collection of insights and updates on embedded systems and display solutions.

Conclusion

Sunlight-readable LCDs combine brightness, bonding, coatings, and rugged design to achieve clarity and reliability where ordinary panels fail.

From kiosks to marine navigation, these technologies are shaping the next generation of industrial displays. As innovation continues — especially in energy efficiency and adaptive visibility — sunlight-readable TFT modules will become even more essential for outdoor and industrial applications.
