Nanoemulsion Preparation Process Using High-Pressure Homogenizer

Note: This nanoemulsion preparation protocol is intended for laboratory research purposes only. Process parameters may require optimization depending on materials, equipment configuration, and application conditions. Results may vary between laboratories.

Nanoemulsions are fine oil-in-water or water-in-oil dispersions with droplet sizes typically below 200 nm, widely used in pharmaceutical, cosmetic, and functional food applications due to their high stability and solubilization capability.

This guide provides a step-by-step workflow for nanoemulsion preparation using high-pressure homogenization for formulation and process development studies.

1. Why Use High-Pressure Homogenization for Nanoemulsions?

High-pressure homogenization is a widely used technique for producing nanoemulsions at laboratory scale due to its strong droplet size reduction capability and good reproducibility. Compared with conventional emulsification methods such as ultrasonication or low-shear mixing, it provides:

•

Consistent nanoscale droplet size distribution

•

High reproducibility for formulation development

•

Improved physical stability of emulsions

•

Process parameters that can be linearly scaled with appropriate system design

2. Materials & Reagents

API:

Oil-soluble active ingredient

Oil phase:

MCT (Medium Chain Triglycerides)

Emulsifiers:

Soy lecithin, glycerol, etc.

Aqueous phase:

Water for injection

Buffer & osmotic agents:

Na₂HPO₄, NaCl, etc.

pH adjusters:

NaOH, HCl

3. Step-by-Step Nanoemulsion Preparation

Step 1: Prepare Oil Phase

Dissolve the API in MCT and stir in a 60°C water bath until fully dissolved, forming a clear oil phase.

Step 2: Prepare Aqueous Phase

Add emulsifiers, phospholipids, and water for injection. Heat to 60°C and stir until no visible solids or oil droplets remain.

Step 3: Prepare Coarse Emulsion

Under 60°C and high-shear mixing (12,000 rpm), slowly add the oil phase into the aqueous phase. Continue shearing for 5–10 minutes to obtain a uniform coarse emulsion.

Step 4: High-Pressure Homogenization

Transfer the coarse emulsion into a high-pressure homogenizer, NanoGenizer-30K. Process at 15,000 psi for 2 passes at room temperature, then increase pressure to 30,000 psi until the desired droplet size distribution is achieved.

NanoGenizer High-Pressure Homogenizer

Step 5: pH Adjustment

Add buffer solution, mix thoroughly, and adjust pH to the desired range using NaOH or HCl.

Step 6: Characterization

Analyze particle size, polydispersity index (PDI), and zeta potential using dynamic light scattering (DLS).

4. Results

After high-pressure homogenization, the nanoemulsion exhibits significantly reduced droplet size and improved physical stability at laboratory scale.

Before high-pressure homogenization: Coarse, heterogeneous emulsion

After high-pressure homogenization: Stable nanoemulsion with uniform nanoscale droplets

Nanoemulsion Before and After High-Pressure Homogenization

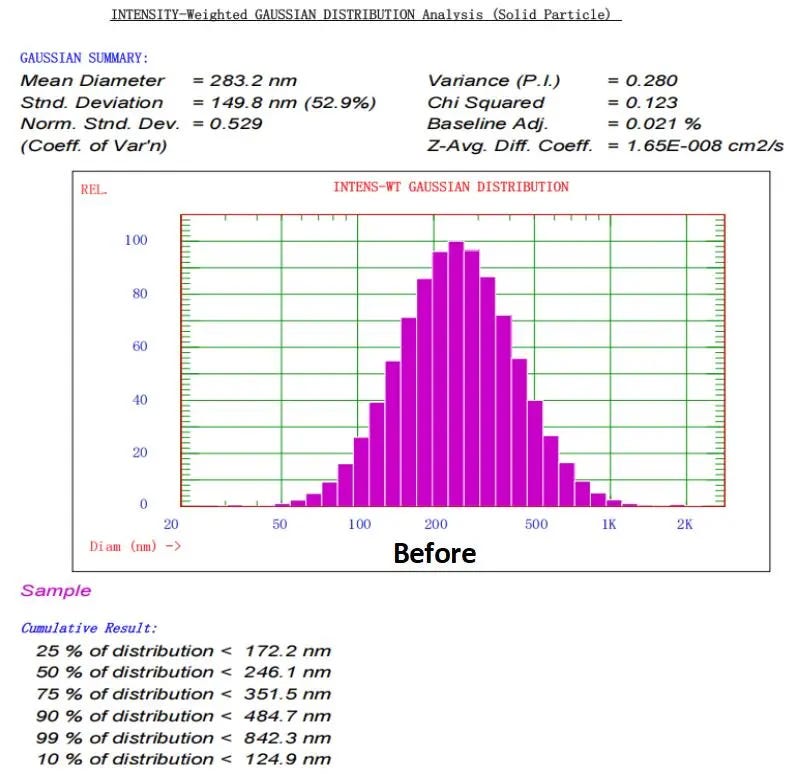

Particle Size Comparison Before and After High-Pressure Homogenization

5. Application Notes

This nanoemulsion preparation workflow is widely used in pharmaceutical formulation development, cosmetic research, and functional delivery system design. Process parameters such as pressure, number of passes, and temperature should be optimized according to specific formulation properties.

6. Process Development & Scale-Up Considerations

While this protocol describes a laboratory-scale workflow, high-pressure homogenization allows scalable transition of process parameters when moving toward pilot and further scale-up development, provided that system configuration and formulation conditions are appropriately optimized.
