The Clutch

If you have ever driven a manual transmission car, you’ve likely pressed the clutch pedal thousands of times. You may do it so instinctively that your foot moves almost before your mind does. But beneath that simple pedal lies an entire world of engineering, physics, material science, and mechanical choreography. The clutch is more than a link between the engine and the wheels. It is the bridge that makes driving smooth, predictable, and controllable. Without it, the engine would constantly stall, gear shifts would grind loudly, and vehicles would be nearly impossible to drive gracefully.

The heart of the clutch system lies in its purpose to momentarily disconnect the engine from the transmission so the driver can shift gears without damaging anything. The engine always spins when running, but the wheels constantly speed up, slow down, or come to a stop. The clutch is the negotiator in that mismatch. When you press the pedal, you separate the rotating engine from the slower or stationary transmission. When you release it, you reunite them in a controlled, friction-based handshake that propels the vehicle forward.

While this idea seems straightforward, the way it is achieved is anything but simple. Over many decades, automakers and engineers have developed several different clutch types to suit different needs. The single-plate clutch is the most common, found in most everyday cars. High-performance or heavy-duty applications often rely on multi-plate clutches, which pack several friction discs together to handle more torque in the same space. There are also centrifugal clutches used on small motorcycles and go-karts, and even fluid-based clutch couplings in older industrial setups. But in the world of cars, the diaphragm-spring clutch has become the king.

To understand why, it helps to know the anatomy of a clutch. The flywheel, bolted directly to the crankshaft, spins along with the engine. It provides a smooth surface and stabilizing mass. In front of it sits the clutch disc, a steel plate covered in friction material similar to brake pads. This disc is splined to the transmission input shaft, meaning it can slide slightly but turns with the shaft. Pressed tightly against the disc is the pressure plate, which clamps the disc to the flywheel with a force strong enough to transmit all of the engine’s torque. Surrounding this assembly is the clutch cover, which houses everything.

What makes diaphragm clutches so effective is the diaphragm spring a circular metal spring shaped like a disc with thin radial fingers. When the driver releases the clutch pedal, the diaphragm spring pushes the pressure plate firmly against the disc. When the driver presses the pedal, a release bearing pushes against those metal fingers, flattening the spring and relieving pressure. This movement is deceptively small yet incredibly powerful, capable of clamping or unclamping several hundred kilograms worth of force.

Older cars relied on mechanical linkages to transfer pedal movement into clutch action. Today, most manual vehicles use hydraulic clutch systems. When the pedal is pressed, fluid pressure travels through a master cylinder down to a slave cylinder, which moves the release mechanism. Hydraulics eliminate stiffness and inconsistencies, giving a more predictable, smoother pedal feel. In newer vehicles, some systems even self-adjust as the clutch wears, keeping pedal height and engagement points consistent throughout the clutch’s life.

As clutch technology evolved, manufacturers began introducing more specialized designs. Pull-type clutches, for example, reverse the conventional motion by pulling the diaphragm spring to disengage instead of pushing it. This might sound minor, but the result is higher clamping force and greater durability, which makes pull-type clutches a favorite in performance cars. There are also clutches designed with central release bearings fitted directly around the input shaft. This eliminates the need for an external release fork, reducing friction points and mechanical complexity.

And then there is the dual-mass flywheel which is a relatively modern innovation now found in many diesel-powered and high-torque gasoline vehicles. Instead of one solid flywheel, the dual-mass version uses two separate plates connected by strong internal springs and dampers. As the engine produces vibrations and torsional pulses, these springs absorb and smooth them out before they reach the transmission. Drivers feel this as a quieter cabin, smoother acceleration, and fewer vibrations at low RPMs. However, these components are expensive to manufacture and replace, and their complexity has created extensive debate among mechanics and car owners alike.

Even with all this sophistication, clutch systems remain wear-and-tear components, meaning they require periodic servicing. Over time, the friction material on the clutch disc wears down. Drivers may notice slipping, where the engine revs but speed does not increase at the same rate. They might feel shuddering when moving the vehicle from a stop, or they might experience difficulty engaging gears due to incomplete clutch disengagement. A spongy pedal can indicate hydraulic issues, while grinding sounds often point to release bearing failure or linkage misalignment.

Maintaining a clutch involves more than just replacing worn parts. It requires understanding the system, checking for oil leaks from engine or transmission seals that can contaminate the disc, ensuring hydraulic fluid is at the correct level, and listening for changes in pedal feel. Mechanics also test how smoothly the clutch engages, whether the engagement point has shifted, and whether the flywheel surface remains even or needs resurfacing. In cars equipped with dual-mass flywheels, technicians must inspect the internal damping movement to ensure it remains within safe tolerances.

The more you learn about clutches, the easier it becomes to appreciate the engineering behind what seems like such a simple action of pressing a pedal. Every smooth gear change, every clean acceleration, every quiet shift relies on a precisely engineered sequence happening in milliseconds. From the moment your foot moves, hydraulic pressure travels, metal fingers flex, friction plates separate or join, springs compress, torque transfers, and rotational energy flows effortlessly from the engine to the wheels. It is mechanical harmony, refined over a century of invention.

Clutches also raise deeper questions about how drivers interact with machines. A manual transmission car forces the driver to be part of the process. It demands timing, coordination, and feel. The clutch pedal becomes a teacher of rhythm, patience, and mechanical sympathy. For many drivers, the simple act of operating a clutch turns driving from a passive routine into an engaging experience, a connection between human and machine that is increasingly rare in today’s automated world.

Learning about clutches gives us more than practical knowledge; it offers a glimpse into the meticulous engineering that makes cars feel alive. Whether through the heavy thump of an old cable-operated clutch, the light precision of a hydraulic system, or the refined smoothness of a dual-mass flywheel, every clutch tells a story of innovation, problem-solving, and mechanical artistry. And for anyone who appreciates how machines work, understanding the clutch turns an everyday action into a deeper appreciation of the forces quietly shaping the world beneath the hood.

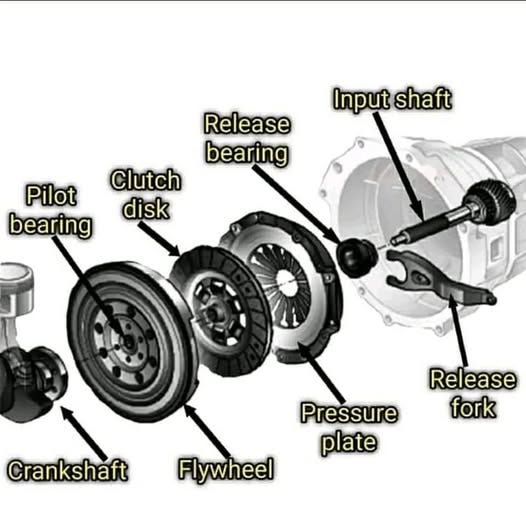

Clutch Diagram: Key Components and Their Functions

A clutch diagram is a visual representation of the parts that make up a vehicle’s clutch system. The clutch is a critical component in manual transmission vehicles, allowing the driver to engage and disengage the engine from the transmission to shift gears smoothly. Here’s an explanation of the key components often found in a clutch diagram and their functions:

1. Clutch Disc (Friction Disc)

The clutch disc is a thin, circular plate covered in friction material. It is positioned between the flywheel and the pressure plate. When the clutch is engaged, the clutch disc is pressed tightly between these components, allowing power from the engine to transfer to the transmission. Over time, the friction material wears out and the disc may need to be replaced.

2. Flywheel

The flywheel is a large, heavy disc attached to the engine’s crankshaft. It provides a smooth surface for the clutch disc to engage and maintains momentum in the engine. The flywheel’s inertia helps to keep the engine running smoothly when the clutch is engaged.

3. Pressure Plate

The pressure plate presses the clutch disc against the flywheel when the clutch is engaged. It is housed within the clutch cover and is responsible for maintaining firm contact between the clutch disc and the flywheel. When the clutch pedal is pressed, the pressure plate is released, allowing the clutch disc to disengage from the flywheel.

4. Clutch Cover (Clutch Housing)

The clutch cover houses the pressure plate, springs, and diaphragm. It bolts to the flywheel and works together with the pressure plate to apply pressure to the clutch disc. When you release the clutch pedal, the clutch cover presses the pressure plate onto the disc, re-engaging the transmission.

5. Release Bearing (Throwout Bearing)

The release bearing is a small bearing that connects to the clutch fork. When the clutch pedal is pressed, the release bearing pushes against the pressure plate, releasing the pressure on the clutch disc and disengaging the engine from the transmission. A worn release bearing can cause a squealing noise when the clutch is engaged.

6. Clutch Fork (Release Fork)

The clutch fork is a lever that transmits force from the clutch pedal to the release bearing. When the driver presses the clutch pedal, the fork moves the release bearing, which disengages the clutch. A damaged or misaligned clutch fork can result in poor clutch operation.

7. Pilot Bearing or Bushing

The pilot bearing or bushing is located in the center of the flywheel and supports the end of the transmission’s input shaft. It helps to align the input shaft during gear changes and reduces friction between the rotating flywheel and the transmission input shaft.

8. Diaphragm Spring

The diaphragm spring is a type of spring mechanism located in the clutch cover. It controls the movement of the pressure plate. When the clutch pedal is pressed, the diaphragm spring releases the pressure on the clutch disc, disengaging the engine from the transmission. Its design allows for smooth clutch operation.

9. Input Shaft

The input shaft is part of the transmission that connects to the clutch disc. When the clutch is engaged, power is transferred from the engine through the clutch disc to the input shaft, which then turns the gears in the transmission.

10. Clutch Pedal

The clutch pedal is what the driver presses to control the engagement and disengagement of the clutch. Pressing the pedal activates the clutch fork, which moves the release bearing and disengages the clutch. Releasing the pedal allows the clutch disc to re-engage with the flywheel.

How It All Works Together:

When you press the clutch pedal, the clutch fork moves the release bearing against the pressure plate, disengaging the clutch disc from the flywheel. This allows you to change gears or stop the car without stalling the engine. Releasing the pedal causes the pressure plate to press the clutch disc back against the flywheel, re-engaging the transmission and allowing power to flow from the engine to the wheels.

Conclusion:

A clutch diagram helps visualize the relationship between the various components in the clutch system and how they work together to enable smooth gear shifting. Understanding the clutch components and their functions is important for diagnosing problems or performing maintenance in a manual transmission vehicle.

Understanding Different Types of Clutches: A Clear Guide for Curious Drivers

The clutch is one of the most essential components in any vehicle equipped with a manual transmission, yet most drivers rarely stop to think about how many variations of this mechanism exist. Behind the simple action of pressing a pedal lies a wide range of engineering designs, each created to manage torque, control engagement, and match different kinds of engines and driving demands.

Clutches can generally be categorized by how they operate. The most familiar group is the friction clutch family. These rely on frictional contact between rotating surfaces to transmit engine power to the transmission. The classic single-plate clutch is the type most drivers are used to. It uses one friction disc pressed tightly against a spinning flywheel to engage the drivetrain. Its simplicity, reliability, and ease of service make it the go-to choice for most manual cars.

In more demanding environments, however, engineers turn to the multi-plate clutch, which stacks several friction discs together to handle significantly higher torque. This design is common in motorcycles, racing vehicles, and compact high-performance systems where space is limited but power output is high. There’s also the cone clutch, which operates by pressing two cone-shaped surfaces together. This shape allows for greater frictional contact, making it effective in older machinery and certain heavy-duty applications.

Not all clutches rely solely on friction. Some operate through a mechanical locking mechanism, like the positive clutch, also known as the dog clutch. Instead of friction, it uses interlocking teeth that mesh together to create an absolutely direct, non-slipping connection between shafts. While extremely effective, this design requires precise timing and is mostly found in industrial systems rather than road cars.

The centrifugal clutch represents another interesting approach. Instead of a pedal, this clutch engages automatically as engine speed increases. When the engine reaches a certain rpm, centrifugal force pushes outward on weighted shoes, causing them to grip the outer drum and engage the drivetrain. This system is commonly used in scooters, go-karts, lawn equipment, and small motorcycles because it simplifies operation for the user.

Modern vehicles often incorporate more advanced clutch mechanisms for smoother operation. The hydraulic clutch replaces mechanical linkages with fluid pressure, allowing for much easier pedal feel and more consistent engagement. Meanwhile, the electromagnetic clutch uses a magnetic field — activated by electric current — to pull the clutch components together. These are often found in systems that require quick engagement, including air-conditioning compressors and industrial machinery.

Within automotive systems, two specialized clutch types are especially noteworthy. The diaphragm clutch, which uses a diaphragm spring instead of multiple coil springs, provides a smoother, lighter pedal feel and has become the modern standard in most manual cars. The vacuum-assisted clutch uses engine vacuum to reduce pedal effort and assist engagement, making it easier for drivers to operate in older diesel vehicles or heavier machinery.

Finally, there is the overrunning clutch, sometimes called a freewheel clutch. This clever design allows one shaft to turn faster than the other, engaging power in only one direction while freewheeling in the opposite. It’s commonly used in starter motors, automatic transmissions, and systems that require smooth directional transitions.

All of these clutch designs — from friction-based to magnetic, from automatic centrifugal systems to diaphragm-based automotive units — reveal how varied and innovative clutch engineering can be. Each type serves a specific purpose, and together they form the unseen backbone of countless machines. Whether ensuring a smooth gear change on your morning commute or managing torque in high-performance engines, clutches quietly make modern motion possible.

Key Technical Terms Explained

Understanding clutch systems becomes much easier once the core technical terms are familiar. For instance, torque transmission refers to how rotational force moves from the engine to the wheels through the clutch. The flywheel, a heavy disc attached to the crankshaft, provides the surface on which the clutch plate makes frictional contact. The pressure plate is the component that clamps the clutch disc against the flywheel, and in diaphragm clutches, this force is supplied by a diaphragm spring, a circular spring that flexes to engage or disengage the system.

Another important term is clutch slip, which describes the moment when the clutch plate does not fully grip the flywheel, causing a loss of power transfer. While some slip is intentional during gear changes, excessive slip leads to wear. The release bearing (or throw-out bearing) allows the clutch fork or hydraulic system to push against the diaphragm spring smoothly, and engagement point refers to the moment the clutch begins to transmit power as the pedal is released.

Modern clutches may also involve systems like the dual-mass flywheel, designed to absorb engine vibrations and reduce drivetrain harshness, and pull-type clutches, where the release mechanism pulls rather than pushes the pressure plate to disengage the system. Finally, the overrunning clutch, or freewheel mechanism, describes clutches that transmit power only in one direction while allowing the other to rotate freely.

These terms form the foundation for understanding how different clutch systems work and why certain vehicles or machines use specific designs.

Review Questions to Deepen Understanding:

1. Why do you think most modern vehicles use diaphragm clutches instead of older coil-spring designs? Consider how pedal effort, durability, and heat management influence the choice.
2. How does a multi-plate clutch manage to handle more torque despite being physically smaller than a single-plate clutch? Think about how increasing the number of friction surfaces affects power transfer.
3. In what scenarios would a centrifugal clutch be more practical than a pedal-operated clutch? Small engines, scooters, and beginner-friendly machines offer some clues.
4. What makes a positive (dog) clutch unsuitable for everyday road cars even though it provides a perfect, slip-free connection? Consider the importance of smoothness and timing in normal driving.
5. How does a dual-mass flywheel improve driving comfort, and what trade-offs might come with such a design? Vibration reduction is key, but there are other factors to weigh.
6. If you were designing a high-performance car, which clutch type would you choose: single-plate, multi-plate, or something more specialized and why? Torque handling, heat resistance, and responsiveness are all worth thinking about.
