Cortex-A7 i.MX 6UltraLite Single Board Computer With Dual Ethernet Ports and Dual Can Ports

OKMX6UL-C1 is an embedded Linux ARM technology based development board/single board computer(SBC) featuring NXP(Freescale) i.MX 6UltraLite ARM Cortex-A7 processor. It is a complete, ready-to-use embedded system development board consisting a CPU module with based board, its CPU module is compact size even smaller than NXP original SoM. OS Linux is well supported, and widely used in automotive telematics, IoT gateway HMI, home energy management systems, smart energy concentrators, intelligent industrial control systems, electronics POS devices, smart appliances, financial payment systems and other fields.

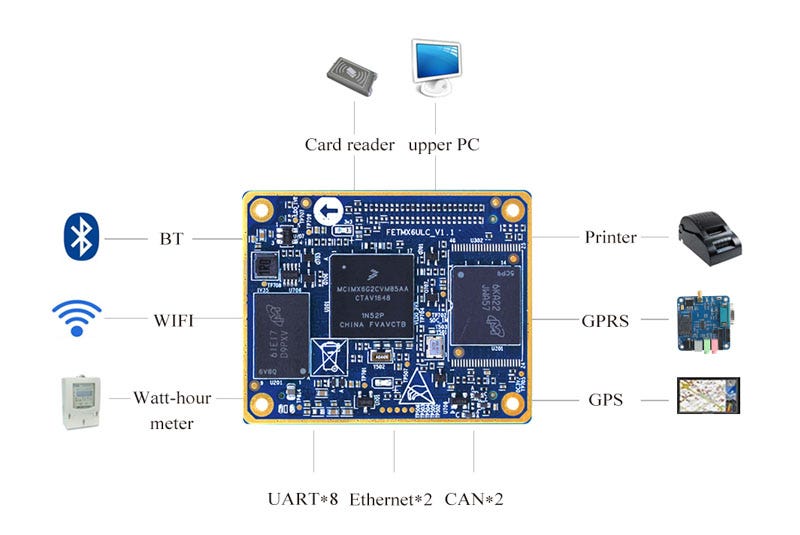

The OKMX6UL-C1 single-board computer is used to evaluate the FETMX6UL-C1 system on module(SoM), which can serve both as a development platform and an end product. With rich peripheral interface resources, including Ethernet, CAN, UART, 130w parallel camera, WIFI&BT, etc.

Compact size and felexible configuration

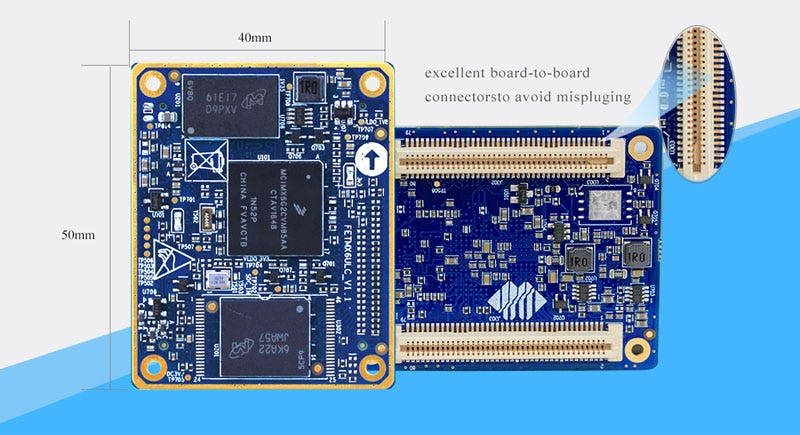

CPU module dimension: 40mm * 50mm, 6-layer ENIC PCB design, and a couple of board-to-board connectors to avoid misplug

Industrial grade components integration

The CPU module is integrated by industrial grade components tested in environment of -40℃ to +85

Media player and digital video record

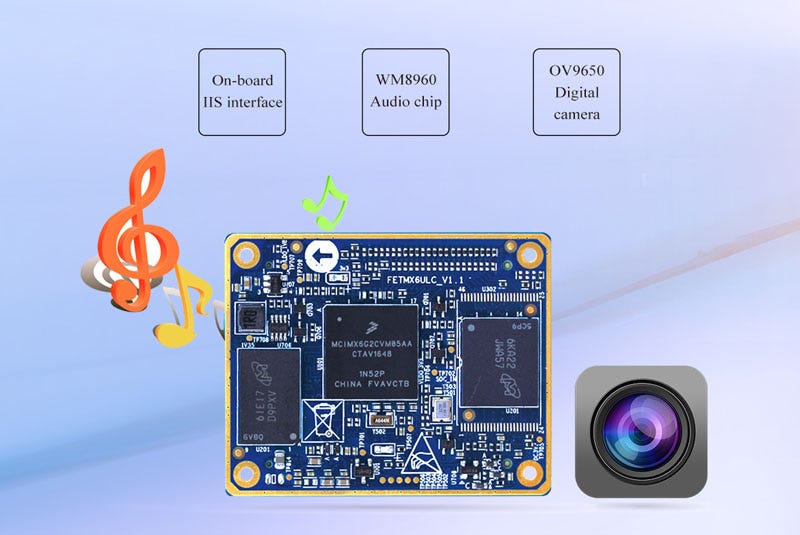

On-board IIS and audio chip of WM8960 for music displaying, and OV9650 camera is supported.

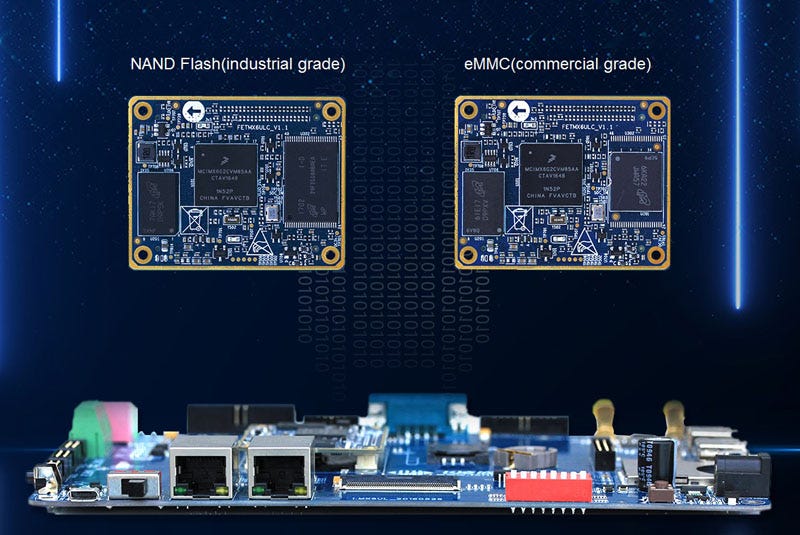

OKMX6UL-C consists of carrier board and SoM, it’s available for SoM FETMX6UL-C1(eMMC, commercial grade) and FETMX6UL-C2(NAND Flash, industrial grade)

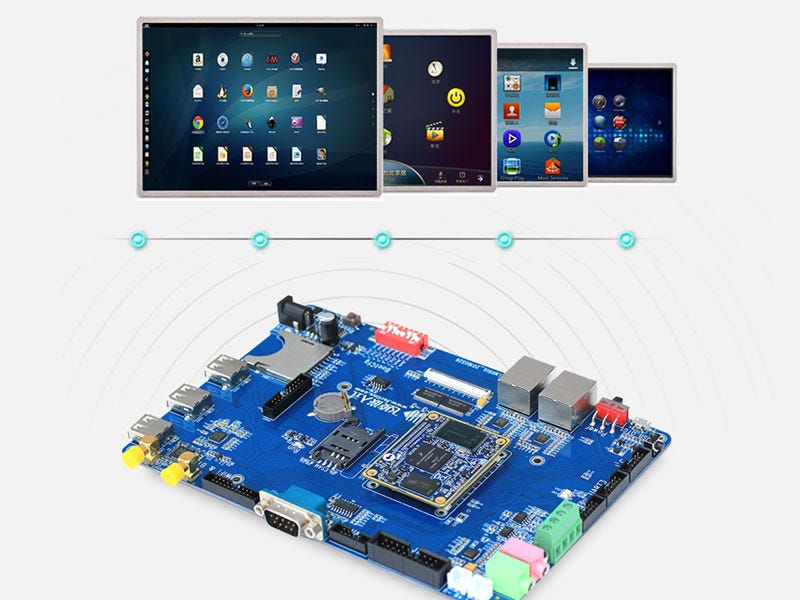

Applicable for different sized displays

4.3'’ LCD(resistive touch), 7'’ LCD(resistive touch) and 7'’ LCD(capacitive touch) are all well supported

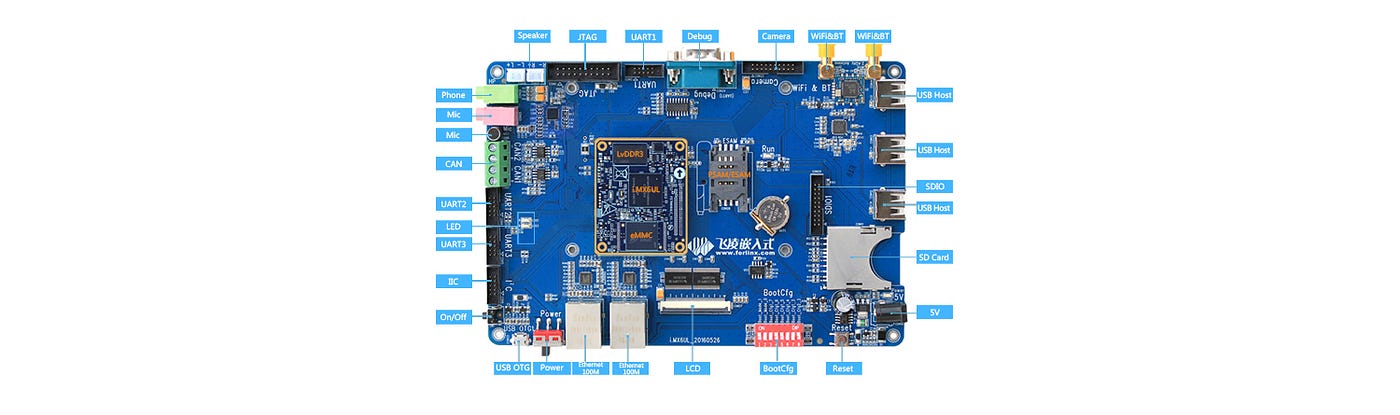

OKMX6UL-C1 Single Board Computer Pin Diagram
