MCP Primer: From Local Tool to Remote Server

Summary

MCP, or Model Context Protocol, is a standard way for AI applications to connect with external tools and data.

A simple way to understand MCP is this:

MCP Server exposes capabilities. MCP Client consumes those capabilities. MCP Host manages one or more MCP Clients. MCP Inspector is a developer tool used to test MCP Servers.

In this article, we will build a small MCP notes server in Python. The server can:

• Add a note
• List notes
• Search notes

Then we will consume it in two ways:

1. Locally, through stdio, using MCP Inspector
2. Remotely, through Streamable HTTP, using a custom MCP Client

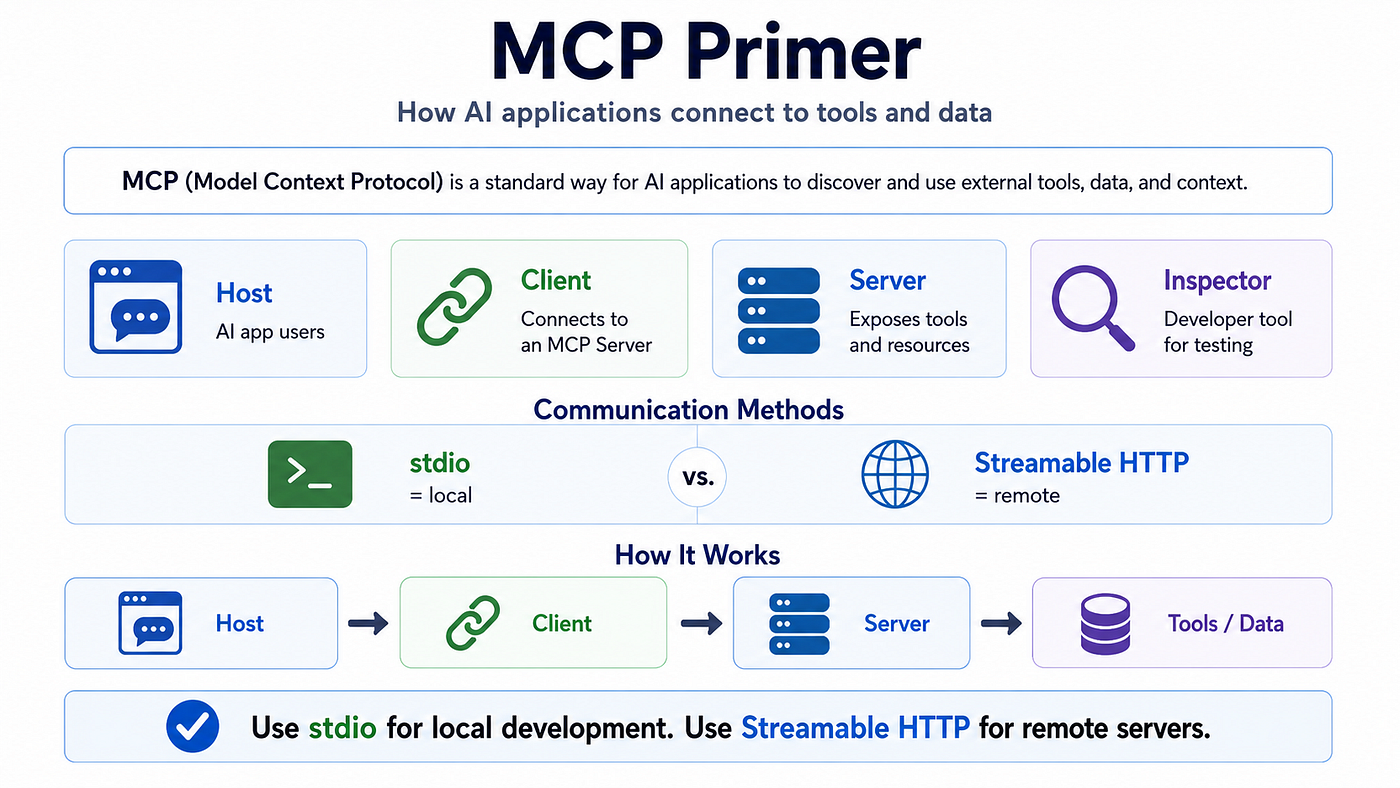

By the end, you should understand the most important MCP concepts: Host, Client, Server, Inspector, stdio, Streamable HTTP, and @mcp.tool().

1. Why MCP Matters

Before MCP, every AI application had to integrate with every external tool in its own way.

For example, if an AI assistant needed to access:

• A database
• A file system
• Jira
• GitHub
• Internal business APIs
• Search services
• Knowledge bases

Each integration could become a custom implementation.

MCP tries to solve this by providing a standard protocol between AI applications and external capabilities.

A simple analogy:

REST API is usually designed for web applications and services. MCP is designed for AI applications and agents.

MCP is not exactly the same as REST. It can use HTTP as a transport, but the protocol itself is based on MCP messages, capabilities, tools, resources, prompts, and client-server lifecycle.

2. The Most Important MCP Roles

The first confusing part of MCP is usually this question:

Who consumes the MCP Server?

There are three important terms:

MCP Host

An MCP Host is the AI application that the user interacts with.

Examples:

• Claude Desktop
• Claude Code
• Cursor
• VS Code extension
• Your own AI agent application

The Host usually does not talk to the MCP Server directly. Instead, it creates MCP Clients.

MCP Client

An MCP Client is the component that connects to an MCP Server.

A Host may create one MCP Client per MCP Server.

For example:

MCP Host
  |
  | creates
  v
MCP Client
  |
  | connects to
  v
MCP Server

If one Host connects to three MCP Servers, it may create three MCP Clients.

MCP Host
  |
  +--> MCP Client A --> MCP Server A
  |
  +--> MCP Client B --> MCP Server B
  |
  +--> MCP Client C --> MCP Server C

MCP Inspector

MCP Inspector is a developer tool.

It is not your production Host. It is mainly used for testing and debugging MCP Servers.

You can use MCP Inspector to:

• Connect to an MCP Server
• View available tools
• Call tools manually
• Inspect tool results
• Debug connection problems

For local development, MCP Inspector is often the first tool you should use.

3. Who Consumes the MCP Server?

There are three common ways to consume an MCP Server.

1. MCP Inspector consumes MCP Server

This is mainly for local development and debugging.

MCP Inspector
     |
     | MCP protocol over stdio or Streamable HTTP
     v
MCP Server

2. MCP Host consumes MCP Server by creating MCP Client

This is the common AI application model.

MCP Host
     |
     | creates MCP Client
     v
MCP Client
     |
     | MCP protocol
     v
MCP Server

3. Custom MCP Client consumes MCP Server directly

You can also write your own MCP Client.

This is useful when you are building your own agent, backend service, automation system, or enterprise AI platform.

Custom MCP Client
     |
     | MCP protocol
     v
MCP Server

4. How Does MCP Communicate?

MCP has a protocol layer and a transport layer.

The protocol defines the message structure and behavior.

The transport defines how messages move between client and server.

Two important transports are:

• stdio
• Streamable HTTP

5. stdio Transport

stdio means standard input and standard output.

In this mode, the MCP Client starts the MCP Server as a local subprocess.

Then they communicate through stdin and stdout.

MCP Client
     |
     | starts local process
     v
notes_server.py
     |
     | reads from stdin
     | writes to stdout

This is common for local tools.

For example, a local filesystem MCP Server may run on the same machine as Claude Desktop or Cursor.

The important idea:

stdio is usually local.

6. Streamable HTTP Transport

Streamable HTTP is used when the MCP Server runs as an independent HTTP service.

The MCP Client connects to a URL such as:

http://localhost:8000/mcp

or remote:

https://mcp.yourdomain.com/mcp

The important idea:

Streamable HTTP is usually used for remote or production-style MCP Servers.

However, this does not mean the MCP Server is a normal webpage.

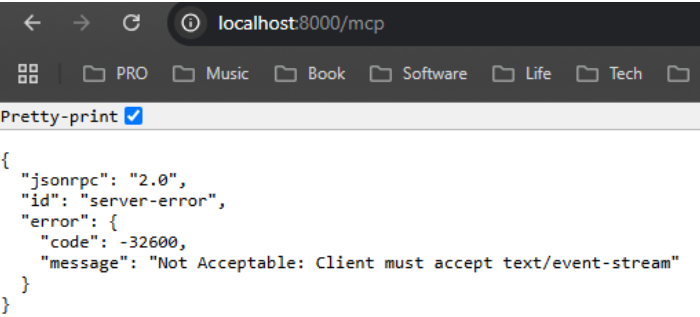

If you open the MCP endpoint in a browser, you may not see a useful page.

Why?

Because the browser is not performing the MCP client lifecycle. It is not initializing an MCP session, listing tools, or calling tools using MCP messages.

So the correct mental model is:

Browser:       "Are you a webpage?"
MCP Server:    "No. Please use an MCP Client."

7. What We Will Build

We will build a simple notes MCP Server.

It provides three tools:

add_note(title, content)
list_notes()
search_notes(keyword)

The server stores notes in a local JSON file:

notes.json

The architecture is simple:

MCP Client or Inspector
     |
     | MCP protocol
     v
notes_server.py
     |
     v
notes.json

8. Create the Project

Create a new folder:

mkdir mcp-notes-demo
cd mcp-notes-demo

Initialize the Python project:

uv init

Create a virtual environment:

uv venv

Activate it on Windows:

.venv\Scripts\activate

Install MCP:

uv add "mcp[cli]"

Now the project is ready.

9. Create the Local MCP Server

Create a file named:

notes_server.py

Add the following code:

from pathlib import Path
import json
from datetime import datetime
from mcp.server.fastmcp import FastMCP

mcp = FastMCP("notes-demo")
NOTES_FILE = Path(__file__).with_name("notes.json")

def load_notes() -> list[dict]:
    if not NOTES_FILE.exists():
        return []

    with NOTES_FILE.open("r", encoding="utf-8") as file:
        return json.load(file)

def save_notes(notes: list[dict]) -> None:
    with NOTES_FILE.open("w", encoding="utf-8") as file:
        json.dump(notes, file, indent=2, ensure_ascii=False)

@mcp.tool()
def add_note(title: str, content: str) -> str:
    notes = load_notes()

    note = {
        "id": len(notes) + 1,
        "title": title,
        "content": content,
        "created_at": datetime.now().isoformat(timespec="seconds"),
    }

    notes.append(note)
    save_notes(notes)

    return f"Added note #{note['id']}: {title}"

@mcp.tool()
def list_notes() -> str:
    notes = load_notes()

    if not notes:
        return "No notes found."

    lines = []
    for note in notes:
        lines.append(
            f"#{note['id']} | {note['title']} | {note['created_at']}"
        )

    return "\n".join(lines)

@mcp.tool()
def search_notes(keyword: str) -> str:
    notes = load_notes()
    keyword_lower = keyword.lower()

    results = [
        note
        for note in notes
        if keyword_lower in note["title"].lower()
        or keyword_lower in note["content"].lower()
    ]

    if not results:
        return f"No notes found for keyword: {keyword}"

    lines = []
    for note in results:
        lines.append(
            f"#{note['id']} | {note['title']}\n{note['content']}"
        )

    return "\n\n---\n\n".join(lines)

if __name__ == "__main__":
    mcp.run()

The key line is this:

@mcp.tool()

This means:

Expose this Python function as an MCP Tool.

Without @mcp.tool(), the function is just a normal Python function.

With @mcp.tool(), the MCP Server can advertise this function to MCP Clients.

For example, this function:

@mcp.tool()
def add_note(title: str, content: str) -> str:
    ...

becomes an MCP Tool named:

add_note

The MCP Client can discover it and call it.

10. Test the Server with MCP Inspector

Run:

uv run mcp dev notes_server.py

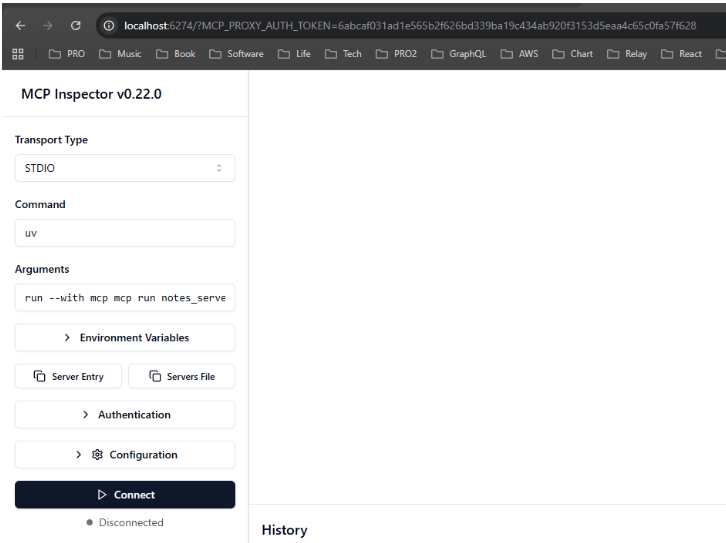

This starts the MCP development environment and opens MCP Inspector.

In MCP Inspector:

1. Click Connect
2. Go to Tools
3. Try add_note
4. Try list_notes
5. Try search_notes

The flow looks like this:

MCP Inspector
     |
     | MCP protocol over stdio
     v
notes_server.py
     |
     v
notes.json

At this point, you have created your first MCP Server and consumed it through MCP Inspector.

After clicking the Connect button, it will show tabs

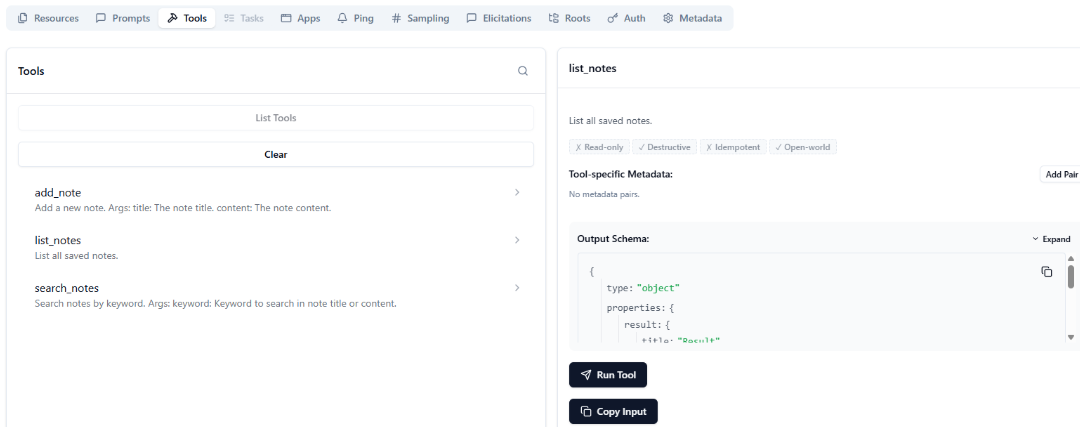

Under Tools, you can test tools liking testing Restful APIs in Postman.

11. Why MCP Inspector Is Not the Final Application

MCP Inspector is useful, but it is not the final user-facing application.

It is like Postman for REST APIs.

For REST APIs:

Postman -> REST API

For MCP:

MCP Inspector -> MCP Server

In production, the consumer is usually an MCP Host or your custom MCP Client.

12. Create a Streamable HTTP MCP Server

Now let’s expose the same notes server through Streamable HTTP.

Create a new file:

notes_server_http.py

Add this code:

from pathlib import Path
import json
from datetime import datetime
from mcp.server.fastmcp import FastMCP

mcp = FastMCP(
    "notes-demo-remote",
    host="0.0.0.0",
    port=8000,
    stateless_http=True,
    json_response=True,
)

NOTES_FILE = Path(__file__).with_name("notes.json")

def load_notes() -> list[dict]:
    if not NOTES_FILE.exists():
        return []

    with NOTES_FILE.open("r", encoding="utf-8") as file:
        return json.load(file)

def save_notes(notes: list[dict]) -> None:
    with NOTES_FILE.open("w", encoding="utf-8") as file:
        json.dump(notes, file, indent=2, ensure_ascii=False)

@mcp.tool()
def add_note(title: str, content: str) -> str:
    """Add a new note."""
    notes = load_notes()

    note = {
        "id": len(notes) + 1,
        "title": title,
        "content": content,
        "created_at": datetime.now().isoformat(timespec="seconds"),
    }

    notes.append(note)
    save_notes(notes)

    return f"Added note #{note['id']}: {title}"

@mcp.tool()
def list_notes() -> str:
    """List all saved notes."""
    notes = load_notes()

    if not notes:
        return "No notes found."

    return "\n".join(
        f"#{note['id']} | {note['title']} | {note['created_at']}"
        for note in notes
    )

@mcp.tool()
def search_notes(keyword: str) -> str:
    """Search notes by keyword."""
    notes = load_notes()
    keyword_lower = keyword.lower()

    results = [
        note
        for note in notes
        if keyword_lower in note["title"].lower()
        or keyword_lower in note["content"].lower()
    ]

    if not results:
        return f"No notes found for keyword: {keyword}"

    return "\n\n---\n\n".join(
        f"#{note['id']} | {note['title']}\n{note['content']}"
        for note in results
    )

if __name__ == "__main__":
    mcp.run(transport="streamable-http")

The most important difference is this:

mcp.run(transport="streamable-http")

Now the MCP Server runs as an HTTP-based MCP service.

Run it:

uv run python notes_server_http.py

The MCP endpoint is:

http://localhost:8000/mcp

For a remote server, replace localhost with the server IP or domain name:

http://192.168.1.50:8000/mcp

or:

https://mcp.yourdomain.com/mcp

13. Why You Cannot Consume It Like a Normal Web Page

This part is important.

When we see an HTTP URL, we naturally want to open it in a browser.

But an MCP Streamable HTTP endpoint is not a normal website.

This is not the right mental model:

Browser
   |
   v
MCP Server

The correct model is:

MCP Client
   |
   | MCP protocol over Streamable HTTP
   v
MCP Server

A browser can send simple HTTP requests, but it does not automatically behave as an MCP Client.

An MCP Client must:

1. Connect to the MCP endpoint
2. Initialize the MCP session
3. List available tools
4. Call tools using MCP messages
5. Parse MCP responses

That is why we need a real MCP Client.

14. Create a Custom MCP Client

Create a file:

client_remote.py

Add this code:

import asyncio
from mcp import ClientSession
from mcp.client.streamable_http import streamable_http_client

def print_tool_result(result):
    for item in result.content:
        if hasattr(item, "text"):
            print(item.text)
        else:
            print(item)

async def main():
    server_url = "http://localhost:8000/mcp"

    # Remote examples:
    # server_url = "http://192.168.1.50:8000/mcp"
    # server_url = "https://mcp.yourdomain.com/mcp"

    async with streamable_http_client(server_url) as (
        read_stream,
        write_stream,
        _,
    ):
        async with ClientSession(read_stream, write_stream) as session:
            await session.initialize()

            tools = await session.list_tools()
            print("Available tools:")
            for tool in tools.tools:
                print("-", tool.name)

            result = await session.call_tool(
                "add_note",
                {
                    "title": "Remote MCP Client",
                    "content": "This note was created from a remote client.",
                },
            )
            print_tool_result(result)

            result = await session.call_tool("list_notes", {})
            print_tool_result(result)

if __name__ == "__main__":
    asyncio.run(main())

Run the client:

uv run python client_remote.py

Expected output:

Available tools:
- add_note
- list_notes
- search_notes

Added note #1: Remote MCP Client

#1 | Remote MCP Client | 2026-06-16T...

Now the flow is:

client_remote.py
     |
     | MCP protocol over Streamable HTTP
     v
notes_server_http.py
     |
     v
notes.json

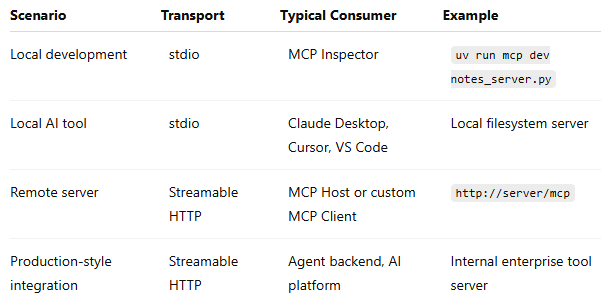

15. Local vs Remote MCP

Here is the simplest comparison.

A good rule of thumb:

*Use stdio when the MCP Server runs locally as a child process. Use Streamable HTTP when the MCP Server runs independently and may be reached over the network.*

16. MCP Is Not Just “Two Agents Talking”

A common early misunderstanding is:

MCP is used for two agents to communicate.

That is not the best definition.

A better definition is:

MCP is a standard protocol for AI applications to access external tools, data, and context.

Those external capabilities may be:

• Files
• Databases
• APIs
• Search engines
• Internal business systems
• Code repositories
• Knowledge bases

MCP can be used inside agent systems, but MCP itself is not limited to agent-to-agent communication.

17. MCP vs REST API

MCP may use HTTP, but MCP is not just REST.

REST usually exposes resources through URLs such as:

GET /notes
POST /notes
GET /notes/123

MCP exposes capabilities such as:

tools/list
tools/call

In our example, the MCP Server exposes tools:

add_note
list_notes
search_notes

The MCP Client does not call:

POST /add_note

Instead, it calls the MCP tool through the MCP protocol.

That is the key difference.

HTTP can be the transport, but MCP is the protocol.

18. The Most Important Mental Model

The most important MCP mental model is this:

MCP Host
   |
   | creates
   v
MCP Client
   |
   | uses transport: stdio or Streamable HTTP
   v
MCP Server
   |
   | exposes tools/resources/prompts
   v
Real system: files, DB, API, business logic

In our notes example:

MCP Host or Client
   |
   v
MCP Server
   |
   v
Python functions
   |
   v
notes.json

In a real enterprise system:

MCP Host or Agent
   |
   v
MCP Client
   |
   v
MCP Server
   |
   v
PostgreSQL / Jira / GitHub / Internal APIs / Knowledge Base

19. What Should Be Exposed as MCP Tools?

A good MCP Tool should be an action or query that an AI assistant can safely call.

Good examples:

search_candidates(request_id)
get_request_summary(request_id)
list_recent_tickets(project_key)
search_notes(keyword)
create_interview_schedule(candidate_id, time)

Bad examples:

run_sql(sql)
execute_shell(command)
delete_all_data()

The difference is safety and intent.

A tool like this is risky:

run_sql(sql)

because the model can generate arbitrary SQL.

A safer design is:

get_candidate_profile(candidate_id)
search_requests(keyword)
compare_candidates(request_id, candidate_ids)

The MCP Server should expose business-safe operations, not unlimited system access.

20. Production Considerations

For a demo, our notes server is enough.

For production, we need more:

Authentication

Remote MCP Servers should not be open to everyone.

They need authentication and authorization.

Authorization

Not every user should access every tool or every record.

For example:

User A can read request 123
User B cannot read request 123

The MCP Server must enforce this.

Do not rely only on the LLM to make permission decisions.

Tool Design

Tools should be small, clear, and safe.

A tool should have:

• Clear name
• Clear input schema
• Clear output format
• Limited scope
• Predictable side effects

Logging and Observability

You should log:

• Which tool was called
• Who called it
• Input parameters
• Execution time
• Success or failure
• Error details

Rate Limiting and Protection

MCP Servers can become a new entry point into your internal systems.

So they need the same protection as other backend services:

• Rate limit
• Timeout
• Retry control
• Backpressure
• Circuit breaker
• Audit logs

MCP does not remove backend engineering. It makes backend engineering more important.

21. Conclusion

MCP is easier to understand when we separate four concepts:

Who consumes?     Host, Client, Inspector
Who provides?     MCP Server
How communicate? stdio or Streamable HTTP
What expose?      Tools, resources, prompts

For local development:

MCP Inspector -> stdio -> MCP Server

For remote usage:

MCP Client -> Streamable HTTP -> MCP Server

For real AI applications:

MCP Host -> MCP Client -> MCP Server -> Real business system

The small notes server in this article is simple, but the pattern is powerful.

Today it stores notes in notes.json.

Tomorrow the same pattern can connect an AI assistant to PostgreSQL, Jira, GitHub, internal APIs, or an enterprise knowledge base.

That is the real value of MCP:

MCP turns external tools and data into standardized capabilities that AI applications can discover and use.
