All ABOUT SWITCHED MODE POWER SUPPLY (SMPS) -2026

Introduction

Switched Mode Power Supply (SMPS) is a type of power supply unit that helps convert low voltage AC electricity from the electrical wall socket, into higher DC voltages for use by electronic equipment. An SMPS is highly efficient and small in size compared to other types of power supplies. This makes them ideal components when designing or building compact electronics devices such as tablets, laptops or embedded systems.

The cost-effectiveness and high efficiency ratio can also help reduce energy costs overtime, which has become an essential factor in today’s working environment where consumers are looking at ways to decrease their carbon footprint. With more advanced features like soft start technology; sophisticated circuit designs improve heat dissipation while keeping noise levels down during operation as well improved overload protection making it safe even with fluctuation network input conditions — this versatile piece of hardware should be top on list for any technologically minded digital device user!

Switched Mode Power Supply (SMPS) is a type of power supply that uses advanced circuitry technology to convert AC voltage into DC, allowing it to run efficiently and at much higher voltages than standard transformers. Its components include transistors, diodes, integrated circuits and printed circuit boards which are controlled by digital logic methods. SMPS use pulse-width modulation method for energy regulation along with other features such as overvoltage protection or overload detection system.

With the help of these state-of-the-art technologies they require very little maintenance compared to conventional transformers for their efficient operation in various applications like TV sets, computers etc. Additionally they save more space than traditional transformer units due to its smaller size & weight making them ideal option for custom installations where specific component requirements need met without sacrificing portability or convenience.

What does SMPS mean?

Switched Mode Power Supply is a converter. Switching devices at higher frequencies and storage components like capacitors or inductors are used to convert the power. It is used as an AC to DC converter and for power efficiency instead of a Linear Power Supply (LPS).

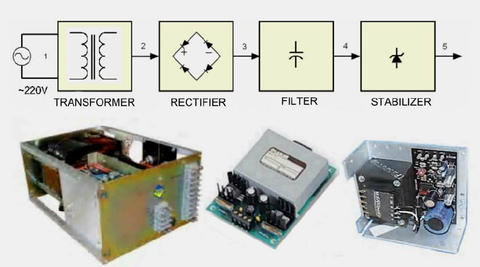

The Linear Power Supply (LPS) is a regulated power supply that losses a lot of power in the form of heat through a series resistor to control the output voltage, resulting in minimal ripple and noise. A linear power supply has a worse energy efficiency (40–50%) since it needs larger semiconductor devices to manage the output voltage and produces more heat. So, to reduce the heat and improve efficiency ‘Hewlett Packard’ used an SMPS in its first pocket calculator.

An SMPS converts the voltage and current characteristics as it distributes power to DC loads like personal computers from a DC or AC source (often mains power; see AC adapter). In contrast to a linear power supply, a switching-mode supply’s pass transistor alternates between full-on and full-off states with low dissipation and spends comparatively less time in transitions with high dissipation, minimizing wasted energy. In an ideal switched-mode power supply, there is no power loss. The ratio of on-to-off time can be changed to control voltage (also known as duty cycles). A linear power supply, in contrast, controls the output voltage by continuously releasing power from the pass transistor. A key benefit is the greater electrical efficiency of the switched-mode power supply.

Comparison between LPS and SMPS

Linear Power Supply (LPS)

Switched Mode Power Supply (SMPS)

Linear Power Supply consists of linear regulators like LM7805

Switched Mode Power Supply consists of switching regulators like MOSFET and transistors.

It only stepdown and produce the output voltage in linear mode

It supplies the power by switching of series of transistors in the cut off and saturation region.

Low Power factor

The Medium power factor can reduce by adding a series of capacitors

Reliable than the SMPS

Reliability depends on the transistor used

Very poor efficiency than the SMPS

Better efficiency than LPS

The Complexity of the design is low

The Difficulty in the design

The Weight of the device is more

Light-weight

Switched Mode Power Supplies are complex. The key benefit of this increased complexity is stabilised designs made possible by switched mode operation, which may provide more power for a given size, price, and weight of power unit. The AC is rectified and smoothed by a reservoir capacitor when the input is the AC mains (line) supply before being processed by what is essentially a DC-to-DC converter to generate a regulated DC output at the desired level. Therefore, an SMPS can be used in many different battery-powered systems to convert DC to DC, either step up or step down, or AC to DC, such as in a desktop computer power supply.

Blog diagram and working of SMPS

AC Input: Without utilising a transformer, the rectifier and filter circuit combination receive the 50 Hz AC input supply signal directly. That AC input sends to the rectifier bridge.

Switch: In this portion, a fast-switching device, such as a MOSFET or Power transistor, is used. It switches ON and OFF in response to fluctuations, and its output is connected to the primary of the transformer located in this section.

Output Stage: To obtain the necessary DC voltage, the output signal from the switching portion is once more rectified and filtered. The control circuit receives this regulated output voltage.

Control circuit: The signal is picked up by the output sensor, which connects it to the control system. Any rapid spikes shouldn’t harm the circuitry because the signal is segregated from the other section. The signal and a reference voltage are both sent as one input to the error amplifier, a comparator that compares the incoming signal with the necessary signal level.

Applications of Switched Mode Power Supply (SMPS)

Switched Mode Power Supplies (SMPS) are widely used across modern electronics due to their high efficiency, compact size, and reliable voltage regulation. These features make them essential in powering a variety of devices and systems.

SMPS is commonly used in consumer electronics such as computers, televisions, laptops, and mobile chargers, where stable DC power is required from AC mains. It also plays a key role in industrial equipment and automation systems, ensuring consistent power delivery for control circuits and machinery.

In addition, SMPS is heavily utilized in telecommunication systems, medical devices, and embedded systems, where space-saving design and energy efficiency are critical. Battery-powered systems and IoT devices also rely on SMPS for efficient DC-to-DC conversion and power management.

Overall, the versatility of SMPS allows it to be used in applications ranging from small portable gadgets to high-power industrial systems, making it a fundamental component in modern electronics.

Classification of SMPS

SMPS is classified into two types:

1. Non-isolated Topology 2. Isolated topology

Non-isolated Topology

Type

Energy storage

Feature

Buck

Single inductor

o/p I continuous

Boost

Single inductor

i/p i is continuous

Buck — Boost

Single inductor

Both i/p and o/p I discontinuous

Split — pi

2 inductors and 3 capacitors

Bidirectional power control

cuk

Capacitor and two inductors

Both i/p and o/p I continuous

Sepic

Capacitor and two inductors

i/p i is continuous

Zeta

Capacitor and two inductors

o/p i is continuous

Switched Capacitor

Capacitors only

No magnetic storage is needed

The Buck converter Circuit has a transistor with a flywheel circuit (Dl, L1 and C1). The inductor L1 is used to conduct current through the load while the transistor is turned on. Any inductor’s activity opposes variations in current flow and serves as an energy reserve. In this instance, the inductor stores energy taken from the increasing output; this energy is later released back into the circuit as a back e.m.f. as the current from the switching transistor is quickly switched off, preventing the switching transistor output from increasing immediately to its peak value.

It is a DC-to-DC power converter that steps up the voltage from its input (supply) to its output while stepping down current (load). This type of switched-mode power supply (SMPS) has at least two semiconductors (a diode and a transistor) and at least one energy storage component, such as a capacitor, inductor, or both. To reduce voltage ripple, filters built of capacitors are typically attached to such a converter’s input (load-side filter) and output (occasionally in conjunction with inductors) (supply-side filter). Since boost converters are extremely nonlinear systems, a range of linear and nonlinear control approaches have been investigated to achieve good voltage regulation with significant load changes.

Isolated Topology

Type

Energy Storage

Feature

Fly back

Mutual inductor

isolated form of the buck-boost converter

Ring Choke Converter

Transformer

The low-cost self-oscillating flyback converter

Half-forwarded

Inductor

Easy to increase or decrease the o/p Voltage

Forward

Inductor

Isolated form the of buck converter

Resonant forward

Inductor and capacitor

Resonant at a fixed frequency

push-pull

inductor

Half bridge

Inductor

Full bridge

inductor

Very efficient use of a transformer, used for highest powers

Isolated cuk

2 inductors and 2 capacitors

Perhaps the most popular isolated topology is the flyback. Typically, it is used in low-cost, low-power applications. In addition to the transformer, the flyback topology only needs one active switch and no additional output inductor. As a result, the topology is simple to utilise and inexpensive. Due to the single-ended architecture and the large input and output ripple currents, additional capacitors are needed at both the input and the output.

A full bridge converter is one of the often-employed types that provides isolation in addition to stepping up or down the input voltage. Other capabilities might include switching the polarity and delivering numerous output voltages at once.

Discover budget-friendly **SMPS Price** deals.

Advantages of SMPS:

• The effectiveness is between 85 and 95 per cent.
• Less power is wasted, and less heat is produced.
• Reduced harmonic feedback
• Compactable size and portable.
• Low Manufacturing cost
• having the capability of providing the required voltage

Disadvantages of SMPS:

• Switching at high frequencies causes the noise to exist.
• The circuit is complicated to analyse.
• electromagnetic interference is produced.

Conclusion

In this blog post, we have learnt that SMPS (Switch Mode Power Supply) is an essential aspect of modern electronics and technology. Understanding the meaning and functioning of SMPS, as well as comparing it with LPS (Linear Power Supply) and exploring its classification and advantages, can help you make informed decisions when it comes to powering your devices. Whether you are an electronics enthusiast or a professional, staying informed about SMPS is crucial to stay ahead in the game. So, don’t wait any longer, dive into the world of SMPS and take advantage of its numerous benefits!
