Falling film evaporators: a revolutionary force in the processing of heat-sensitive products

In the food and fine chemicals sectors, many high-value or functional products are very sensitive to heat. Traditional evaporation equipment, due to the long residence time and high heating temperature of materials, often leads to product quality degradation, loss of nutrients, and even changes in flavor and color. How to efficiently and gently concentrate these heat-sensitive materials has always been a huge challenge facing the industry.

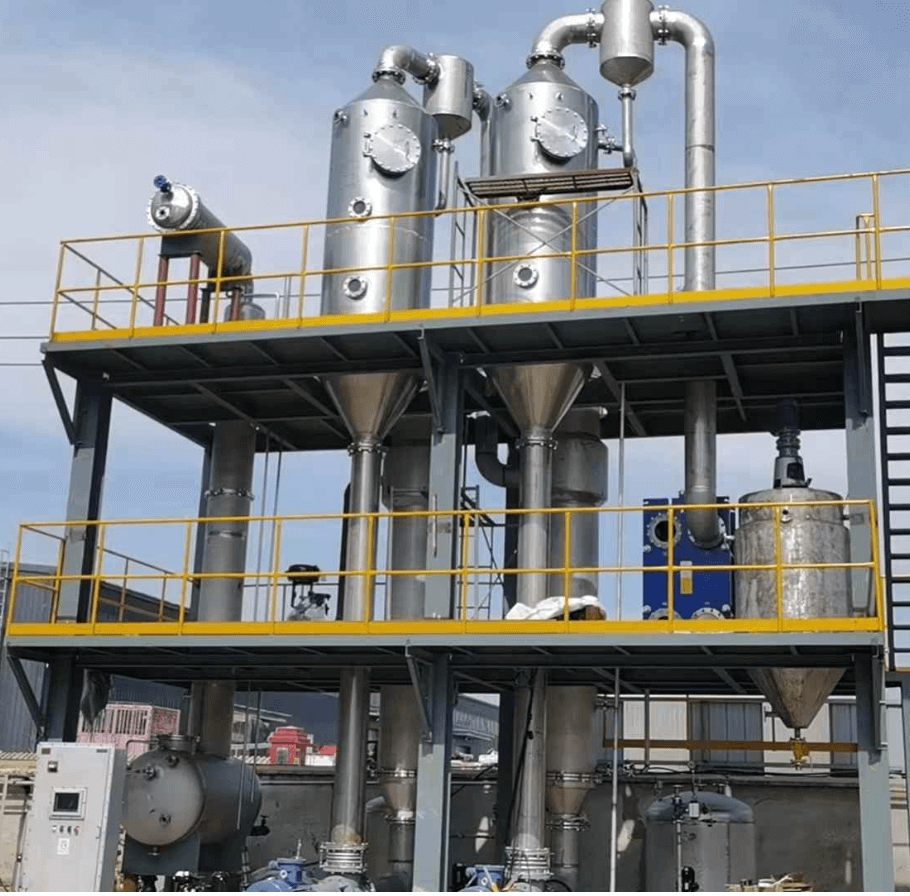

Falling film evaporators

The emergence of falling film evaporators has completely changed this situation. It is no longer a simple equipment upgrade, but provides a revolutionary solution for the processing of heat-sensitive products, which perfectly meets the needs of modern industry for high quality, high efficiency and low energy consumption. Let you understand the 5 major differences between falling film evaporators and forced circulation evaporators.

Core Principles: Thin Film and High-Speed Flow The core charm of the falling film evaporator is that it creates an extremely efficient and gentle heat transfer mechanism.

The material is evenly distributed to the top of the heating tube, and under the action of gravity, vacuum suction and its own flow force, an extremely thin and continuous liquid film is formed along the inner wall of the tube. This liquid film is the key to the falling film evaporator’s ability to protect heat-sensitive products.

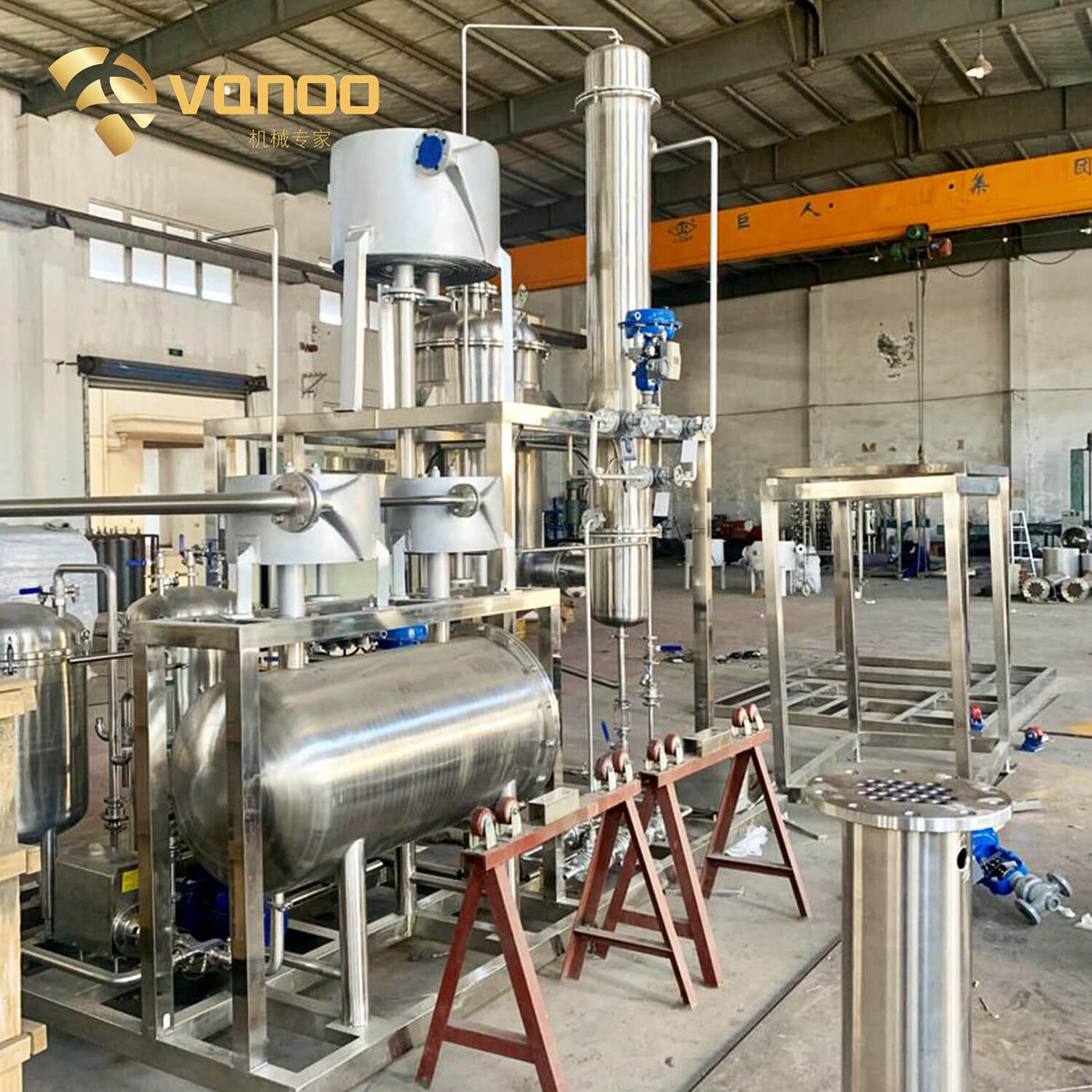

Falling film evaporators

Extremely high heat transfer efficiency: the liquid film thickness is usually only a few millimeters or even thinner, which greatly reduces the thermal resistance. The heat of the heating steam can quickly and evenly penetrate the film and be transferred to the material, achieving rapid evaporation.

The heating time is extremely short: the entire concentration process only takes a few seconds from the time the material enters the heating tube to the time it leaves. This “flash evaporation” feature greatly reduces the time the material experiences high temperature, thereby maximizing the protection of heat-sensitive substances such as vitamins, proteins, polysaccharides or active chemical ingredients.

Gentle, low-pressure operation: Falling film evaporators typically operate under vacuum. The boiling point of water decreases significantly as pressure decreases. For example, under high vacuum, water may boil at temperatures of $40^\circ \text{C}$ or even lower. This low-temperature evaporation environment is the best condition for maintaining the natural characteristics, biological activity and flavor of products such as juice, dairy products, antibiotics or plant extracts.

Practical changes brought about by falling film evaporators This unique mechanism brings tangible benefits to the concentration of heat-sensitive products:

Chemical evaporation equipment company Vanoo

Quality improvement: In juice concentration, it can retain the natural flavor and color of fresh fruits to the maximum extent; in the pharmaceutical industry, it can ensure that the activity of biological products such as antibiotics and vaccines is not destroyed; in dairy processing, it can avoid protein denaturation and maintain the nutritional value of dairy products.

Energy consumption optimization: Due to the small heat transfer temperature difference and high heat transfer coefficient, falling film evaporators are very suitable for use with multi-effect evaporation systems or vapor mechanical recompression (MVR) technology. This integrated design can utilize the latent heat of steam in cascade, significantly reducing overall operating energy consumption and bringing considerable economic benefits to the enterprise. Falling film evaporator: How to use MVR technology to reduce energy consumption by 70%?

Wide applicability: Whether it is low-viscosity liquids or materials containing a small amount of suspended particles, the falling film evaporator can effectively handle them. By optimizing the design of the liquid distributor, it can be ensured that the material forms a perfect film on the inner wall of the heating tube to avoid the “dry wall” phenomenon that causes the material to overheat.

Summary: solutions for the future The falling film evaporator has evolved from an industrial equipment to an indispensable technical pillar in the field of heat-sensitive product processing. It successfully solves the contradiction between high efficiency and high quality, allowing companies to provide healthier, more natural, and more valuable end products while ensuring production capacity.

For engineers and technicians in the food and chemical industry, mastering the principles and applications of falling film evaporators is a necessary ability to cope with future market demand for high-quality concentrated products. It is not only an equipment choice, but also represents a concept of pursuing gentle, efficient and green processing.
