The Problem Swin Transformer Solves

The biggest challenge with using standard Transformers for images is the math. Standard self-attention compares every single pixel to every other pixel, causing computational costs to quadratically (O(N²)) as image resolution grows. The Swin Transformer fixes this by introducing a localized, hierarchical approach.

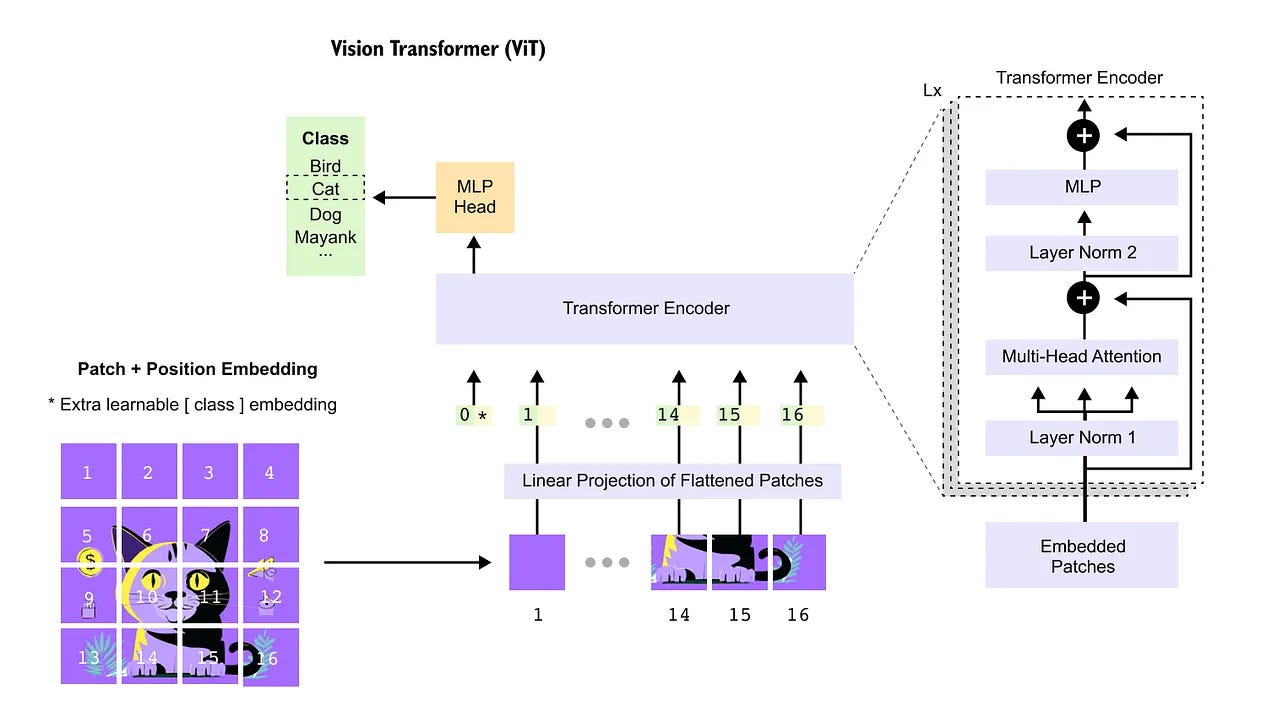

Source Image

This does not replace CNNs or full transformers; instead, it bridges the two designs using a controlled attention mechanism.

Core Problem in Vision ML

All modern vision architectures are constrained by the computation cost O(N²), where (N) is the number of image patches.

For high-resolution images:

• (N) becomes large
• computation becomes impractical
• memory usage explodes

So every architecture is trying to answer:

How do we model global relationships without paying full global cost?

Baseline systems Swin relates to

Convolutional Neural Networks (CNNs)

CNNs solve vision using:

• fixed local receptive fields
• weight sharing
• hierarchical downsampling

What CNNs do well:

• Efficient computation (linear scaling)
• Strong spatial inductive bias
• Works well on limited data

Limitation:

• Global interaction is indirect
• Long-range dependencies require deep stacking

CNNs assume locality as a hard constraint.

Residual Networks

ResNet improves:

• gradient flow
• trainability of deep CNNs

But it does not change:

• locality structure
• convolutional bias

ResNet solves optimization, not representation limitations.

Vision Transformers (ViT)

ViT changes the paradigm:

• image → patch tokens
• full self-attention across all tokens

Strengths:

• global context from first layer
• flexible interactions

Weakness:

• quadratic cost
• weak inductive bias
• high data requirements

ViT removes structure instead of managing it.

Swin Transformer

Swin does not remove global attention. It just restricts it.

It introduces two mechanisms:

Window-based self-attention (W-MSA):

• Image is divided into fixed windows
• Self-attention is computed inside each window only

This changes complexity:

• ViT: O(N²),
• Swin: O(NM²)

Where:

(M) = window size (constant) This focuses on local attention per layer.

Shifted window attention (SW-MSA)

This shifts window boundaries, which creates:

• cross-window interaction over layers
• gradual information mixing

It’s not a graph-based global connectivity, neither instant global reasoning

Instead, it’s iterative spatial communication.

Hierarchical structure

Swin uses patch merging, which:

• combines neighboring tokens
• reduces resolution
• increases feature dimension

This is NOT deterministic downsampling in token space similar in effect to CNN stride, but not adaptive

Comparison of locality behavior

CNN vs Swin

CNN:

• fixed spatial kernel
• same operation everywhere

Swin:

• fixed window structure
• dynamic attention inside window

Swin does NOT “learn locality from scratch”. It uses fixed locality with learned weighting inside it.

ViT vs Swin

ViT:

• global attention everywhere
• immediate full connectivity
• quadratic cost

Swin

• local attention + shifted partitions
• global behavior appears over depth

Swin does NOT match ViT’s global reasoning per layer.

Instead, swin approximates global context through depth-wise propagation of local interactions.

Swin vs YOLO

YOLO (You Only Look Once):

YOLO is optimized for:

• real-time inference
• single-pass prediction
• latency constraints

Swin is optimized for:

• representation quality
• hierarchical feature learning
• backbone generalization

They are not competitors.

YOLO = execution model (fast prediction head)

Swin = representation backbone (feature construction)

What Swin actually contributes

The real contribution is not attention itself.

It is:

Replace full self-attention with structured, alternating local attention that still allows information flow across the entire image over multiple layers.

This introduces:

• controlled sparsity in attention
• linear scaling with image size
• hierarchical feature formation

Correct complexity interpretation

Swin attention cost: O(NM²),

Where:

(N): number of patches

(M): window size

Which is:

• linear in image size
• quadratic only inside small fixed windows
• Not “near-global efficiency”, but: globally scalable local computation

Conclusion

Vision architectures sit on three axes:

1. Connectivity

CNN: local fixed

ViT: fully global

Swin: local + structured mixing

2. Inductive bias

CNN: strong fixed bias

ViT: weak bias

Swin: moderate structured bias

3. Scalability

CNN: efficient

ViT: expensive at scale

Swin: balanced

Swin Transformer is best understood as:

A hierarchical vision transformer that replaces global self-attention with alternating local window attention and shifted partitions, allowinf scalable computation while gradually propagating information across the entire image.

It is not globally connected attention, nore learned locality like CNNs, and neither equivalent to ViT global reasoning

It is a structured approximation of global dependency using constrained local computation
