Set Up SSH Key Authentication for GitHub Actions and Remote Servers

1. Generate SSH Key

Open GitBash on your local machine and run this command, when prompted for a passphrase, just press Enter to leave it empty.

ssh-keygen -t ed25519 -C "github_action_dev_deployment" -f ~/.ssh/github_action_ssh_key

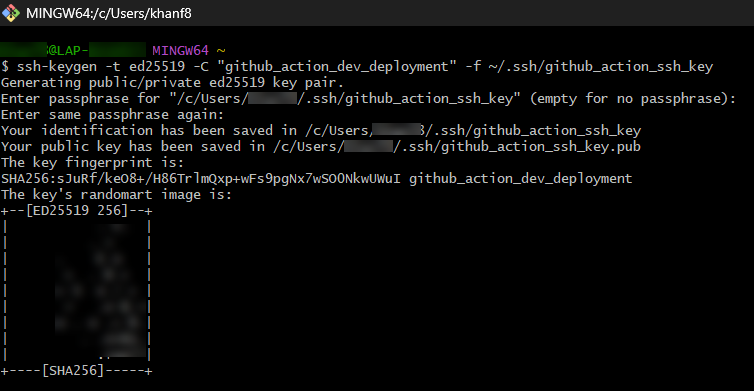

SSH Key Generation in GitBash

This creates two files:

~/.ssh/github_action_dev_key (private)

~/.ssh/github_action_dev_key.pub (public)

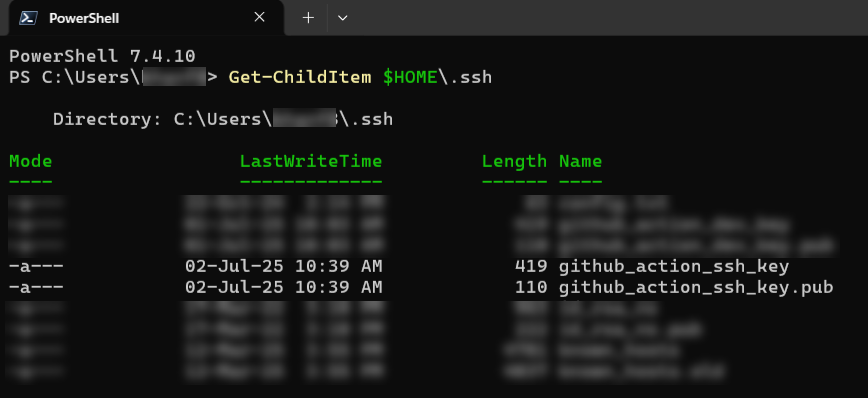

To view these files in Powershell

Get-ChildItem $HOME\.ssh

2. Add the Public Key to the Server

On your local machine, powershell, run:

cat ~/.ssh/github_action_ssh_key.pub

Copy the entire output.

Then, SSH into your server as <REMOTE_USERNAME> user:

mkdir -p ~/.ssh
chmod 700 ~/.ssh
nano ~/.ssh/authorized_keys

Paste the public key, then save (Ctrl+O, Enter) and exit (Ctrl+X). Then:

chmod 600 ~/.ssh/authorized_keys
chown -R <REMOTE_USERNAME>:<REMOTE_USERNAME> ~/.ssh

This ensures correct permissions and ownership.

3. Check that SSH is allowing key-based auth

sudo grep -Ei 'PubkeyAuthentication|AuthorizedKeysFile' /etc/ssh/sshd_config

Make sure these lines are present and not commented:

PubkeyAuthentication yes AuthorizedKeysFile .ssh/authorized_keys

If not, fix the config:

sudo nano /etc/ssh/sshd_config

Then restart SSH:

sudo systemctl restart ssh

File permissions and ownership (must be exact)

ls -ld ~/.ssh

Expected drwx — — — 2 <REMOTE_USERNAME> <REMOTE_USERNAME> … .ssh

ls -l ~/.ssh/authorized_keys

Expected

-rw — — — — 1 <REMOTE_USERNAME> <REMOTE_USERNAME> … authorized_keys

If not, fix with:

chmod 700 ~/.ssh
chmod 600 ~/.ssh/authorized_keys
chown -R <REMOTE_USERNAME>:<REMOTE_USERNAME> ~/.ssh
chmod 755 /home/<REMOTE_USERNAME>
chown <REMOTE_USERNAME>:<REMOTE_USERNAME> /home/<REMOTE_USERNAME>

Then to check the correct permission

ls -ld /home/<REMOTE_USERNAME>

Expected Output

drwxr-xr-x <REMOTE_USERNAME> <REMOTE_USERNAME> …

4. Add the private key to GitHub Secrets

Open the private key

cat ~/.ssh/github_action_dev_key

Never expose or share the private key — only use the public key when adding to GitHub or servers. The private key stays only on your local machine and is added as a GitHub secret, not uploaded to the server.

Copy the full contents (including — — -BEGIN OPENSSH PRIVATE KEY — — — to — — -END OPENSSH PRIVATE KEY — — -)

In GitHub, go to:

Repository > Settings > Security > Secrets and Variables > Actions

Click “New Repository Secret”

Name: SSH_PRIVATE_KEY

Paste the key as the value

5. Test SSH from local machine using SSH

Run this in PowerShell:

$sshKey = "$env:USERPROFILE\.ssh\github_action_ssh_key"
icacls $sshKey /inheritance:r
icacls $sshKey /grant:r "${env:USERNAME}:(F)"

You can now test SSH from your local machine using the private key:

ssh -i ~/.ssh/github_action_dev_key -p <PORT> <REMOTE_USERNAME>@<REMOTE_HOST>

If that works without asking for a password, you’ve fully set it up!
